Air Bag Control Module
Restraints Control Module (RCM)

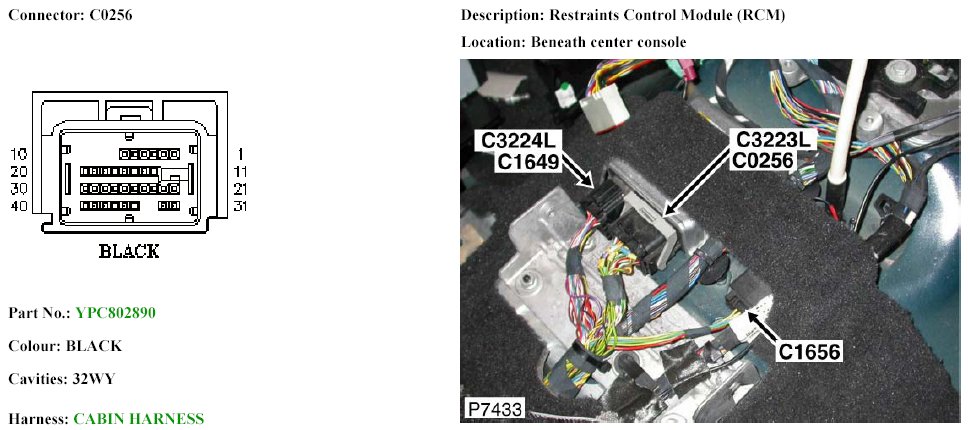

C0256 (Part 1):

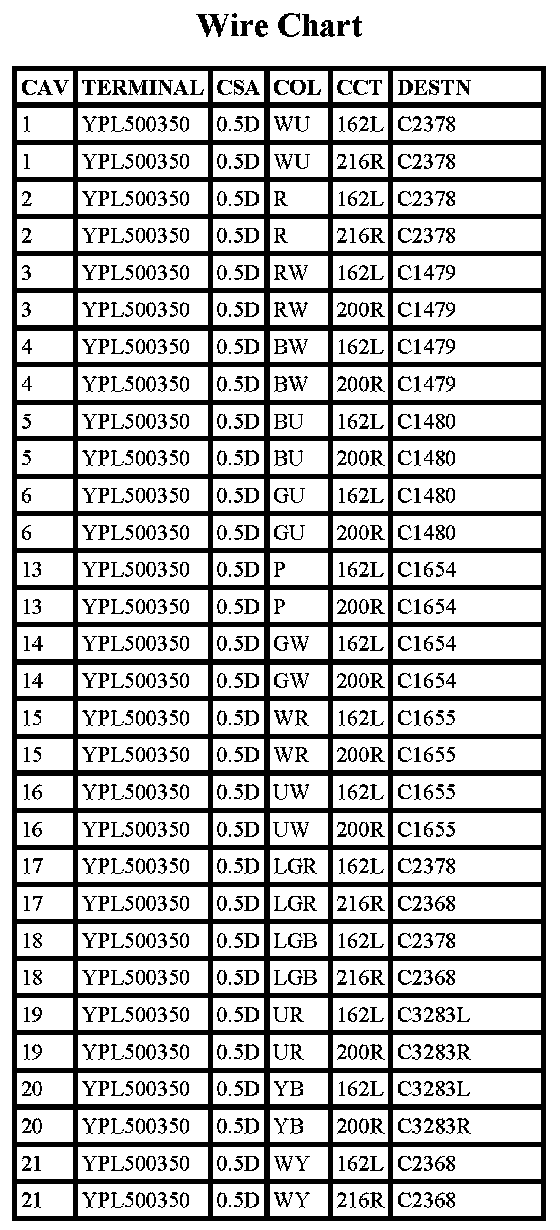

C0256 (Part 2):

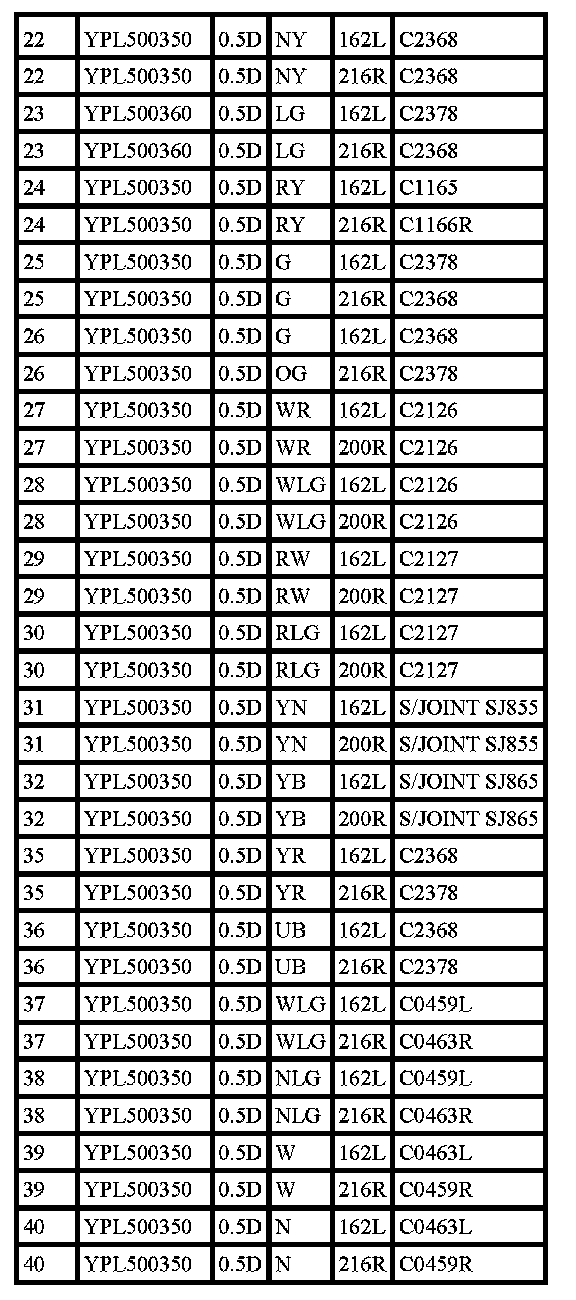

C0256 (Part 3):

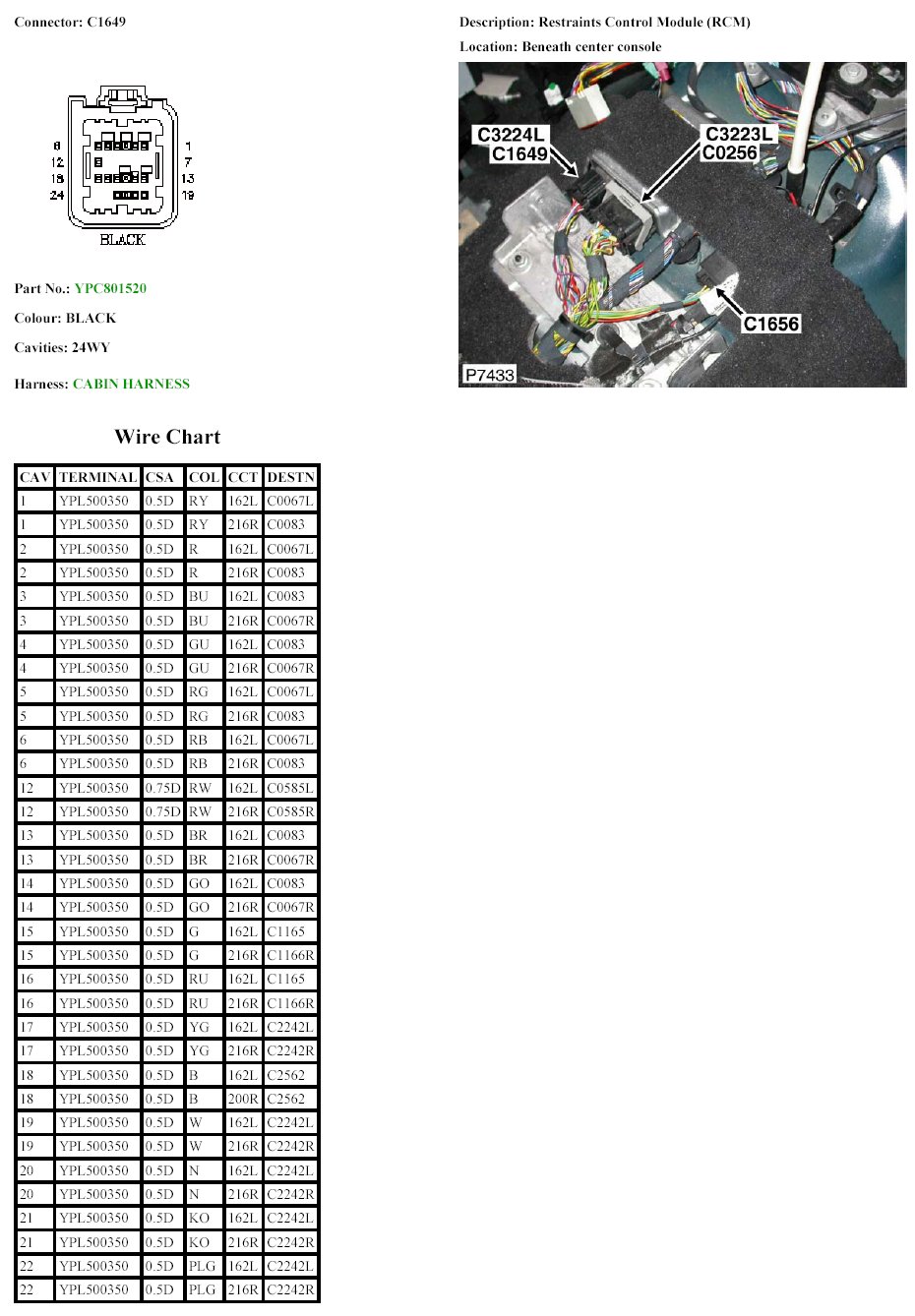

C1649:

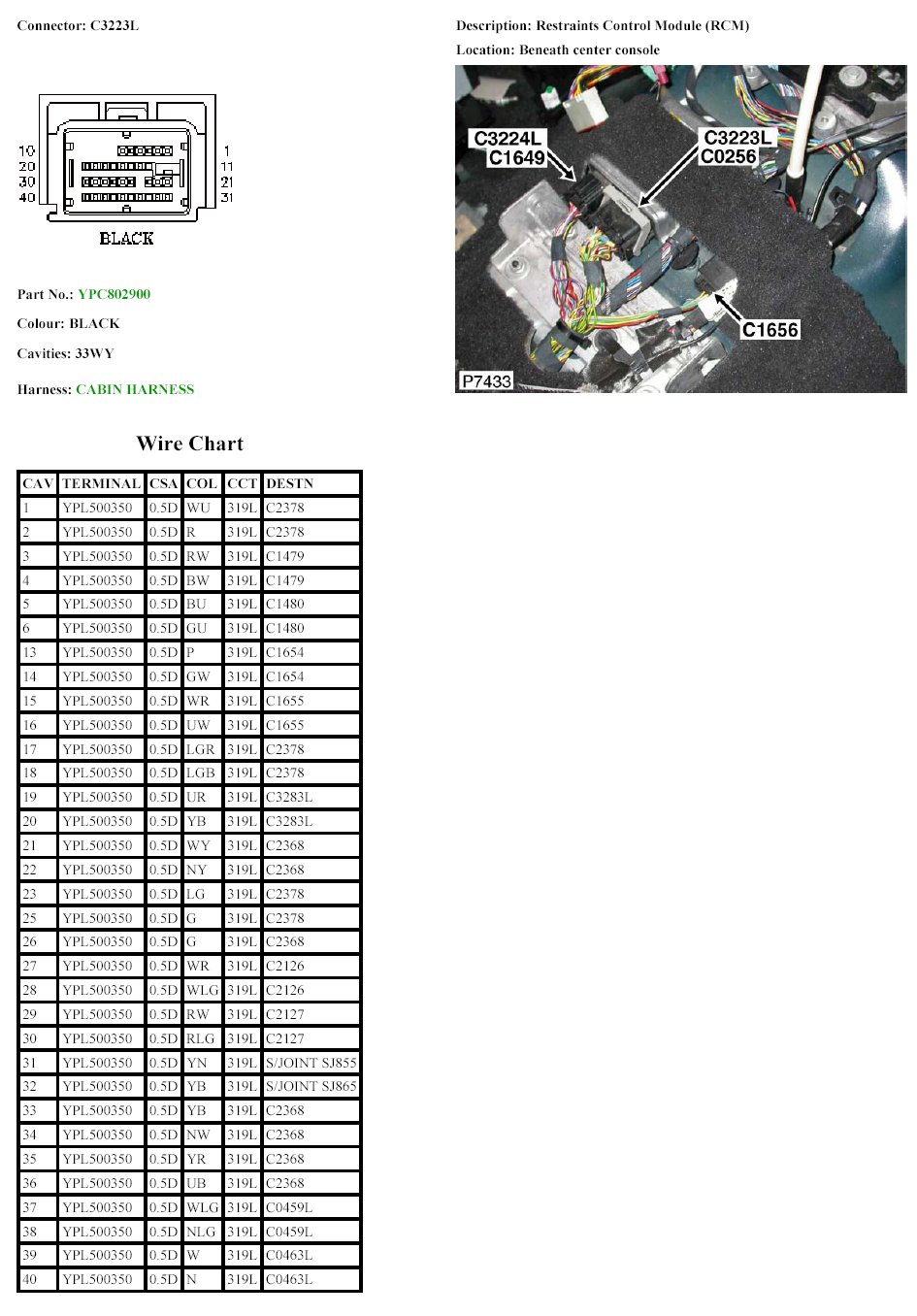

C3223L:

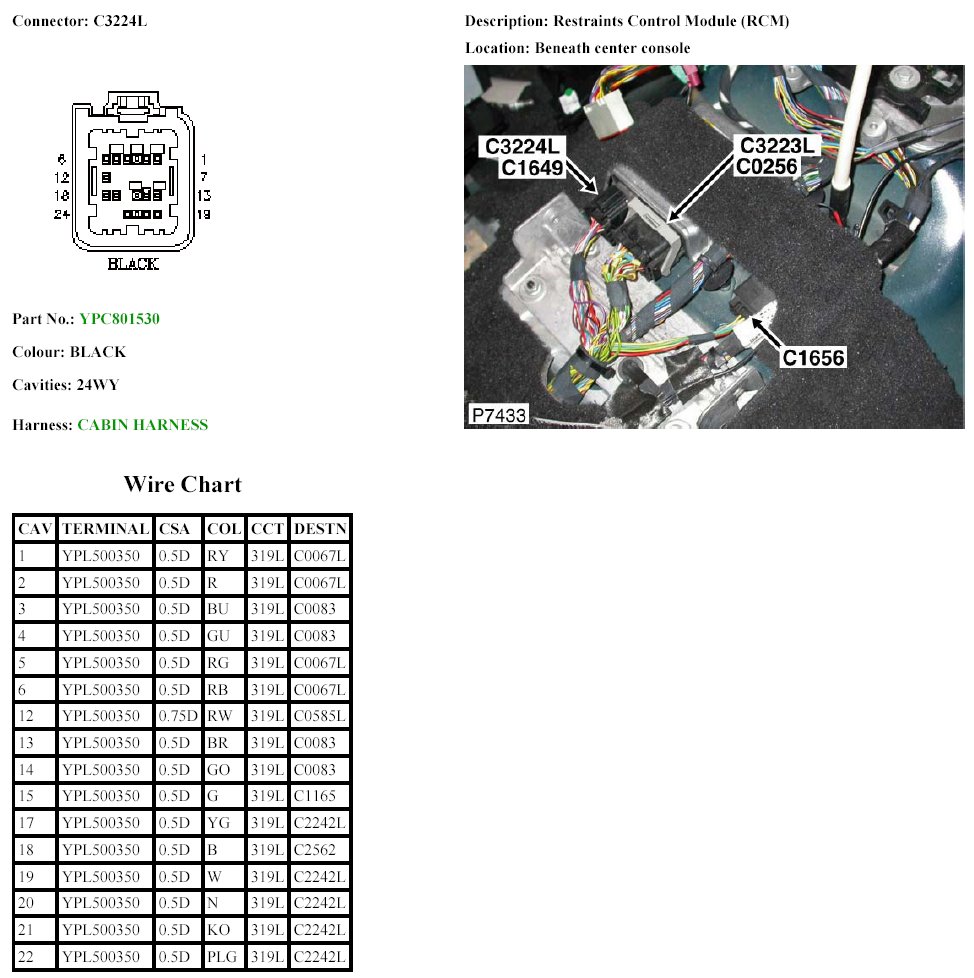

C3224L:
