Control Module, Transfer Case
Transfer Box Control Module

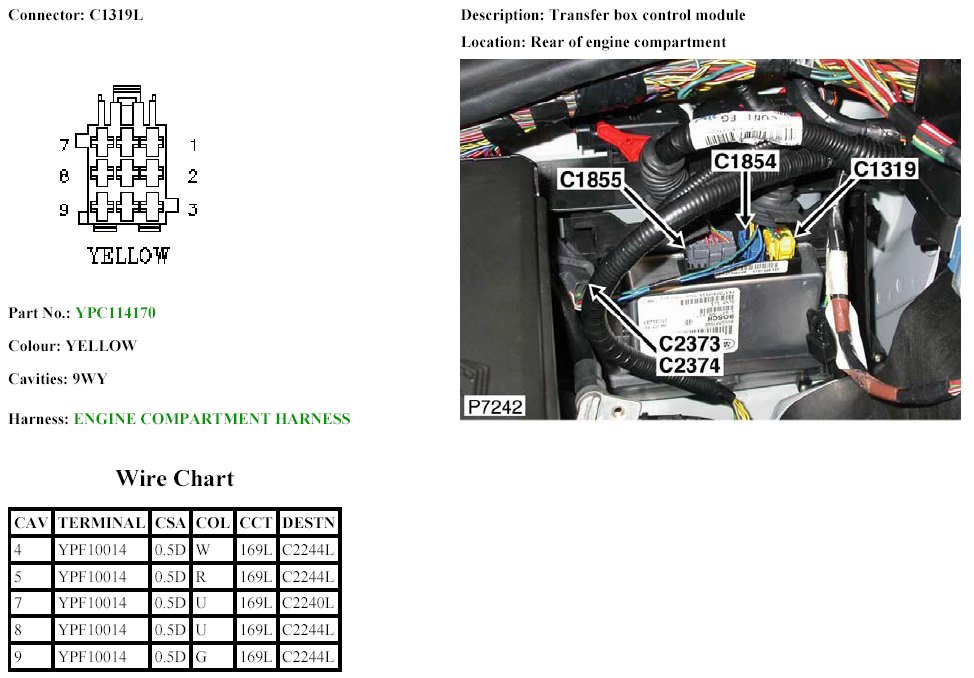

C1319L:
C1319R:

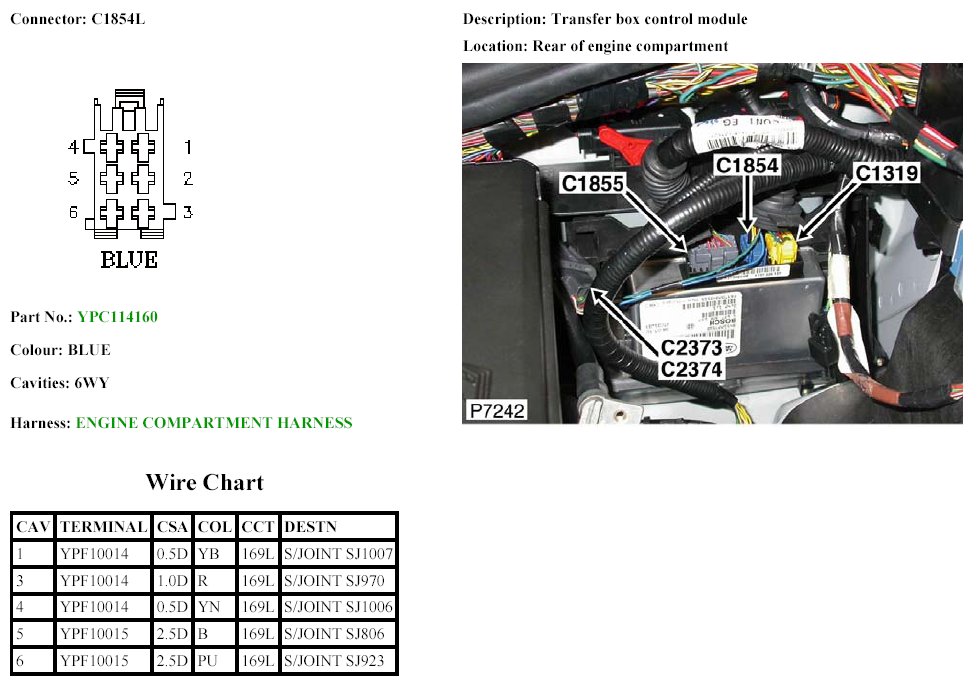

C1854L:

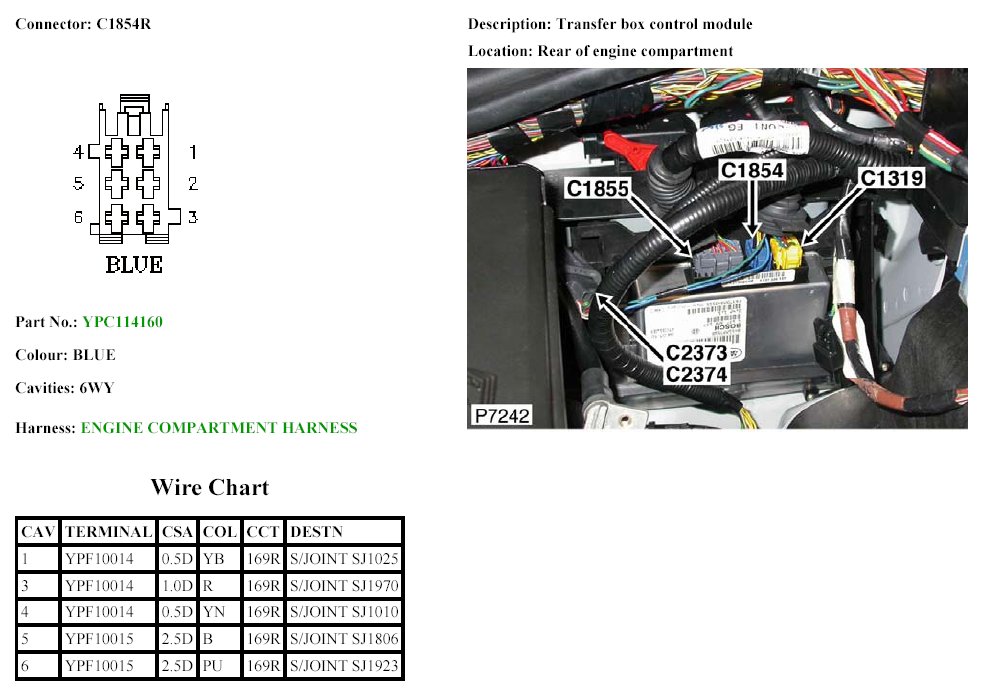

C1854R:
C1855B:

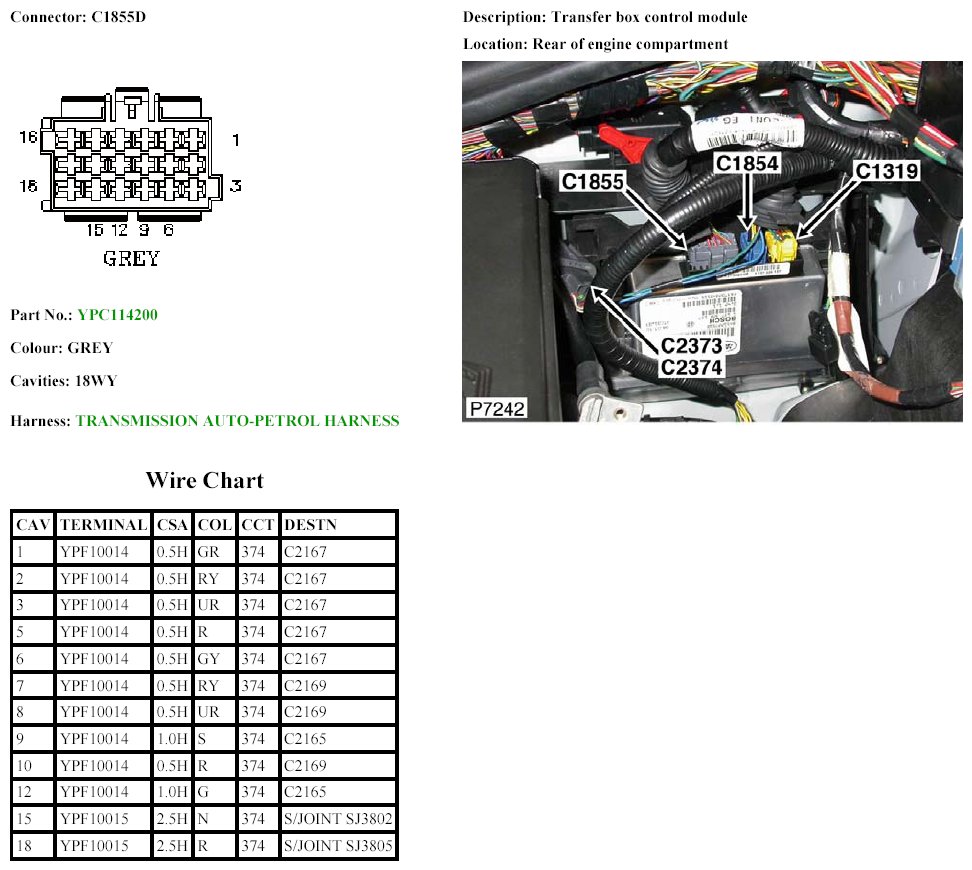

C1855D:
