Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
>>
Dynamic Reponse Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dynamic Reponse Module
Dynamic Reponse Module

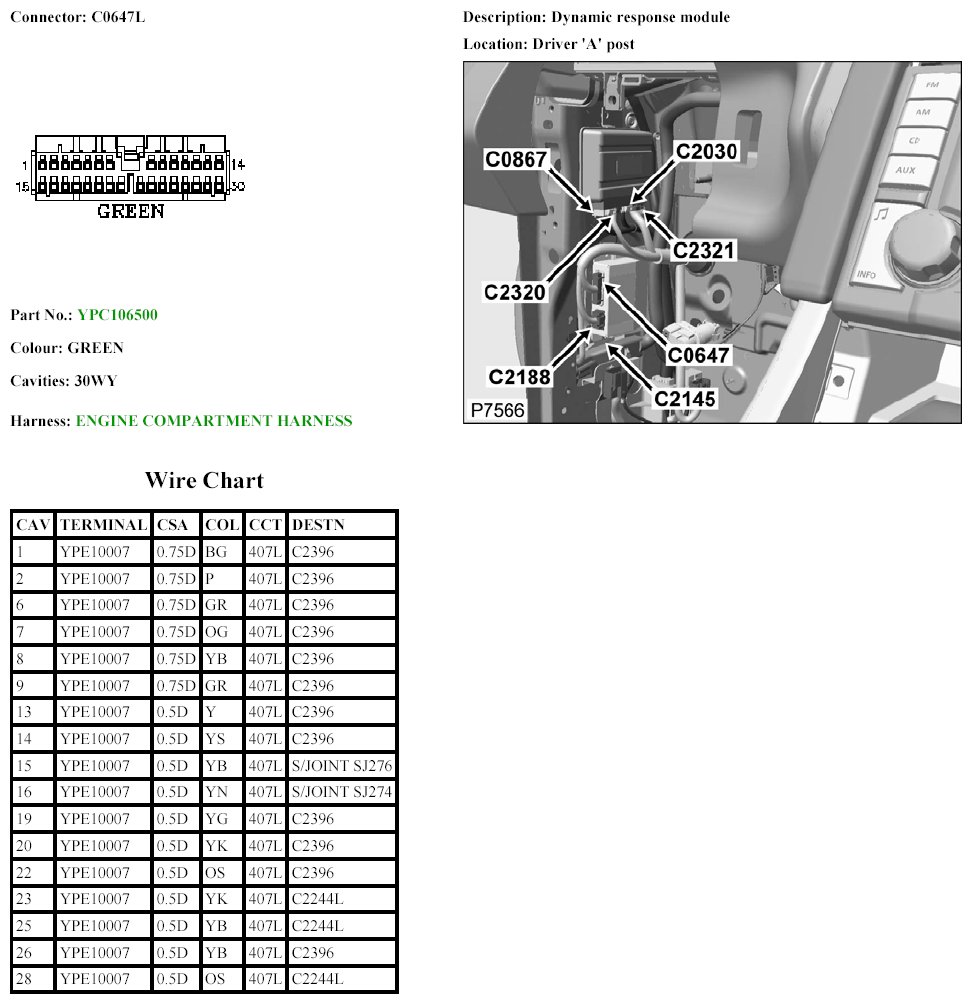

C0647L:

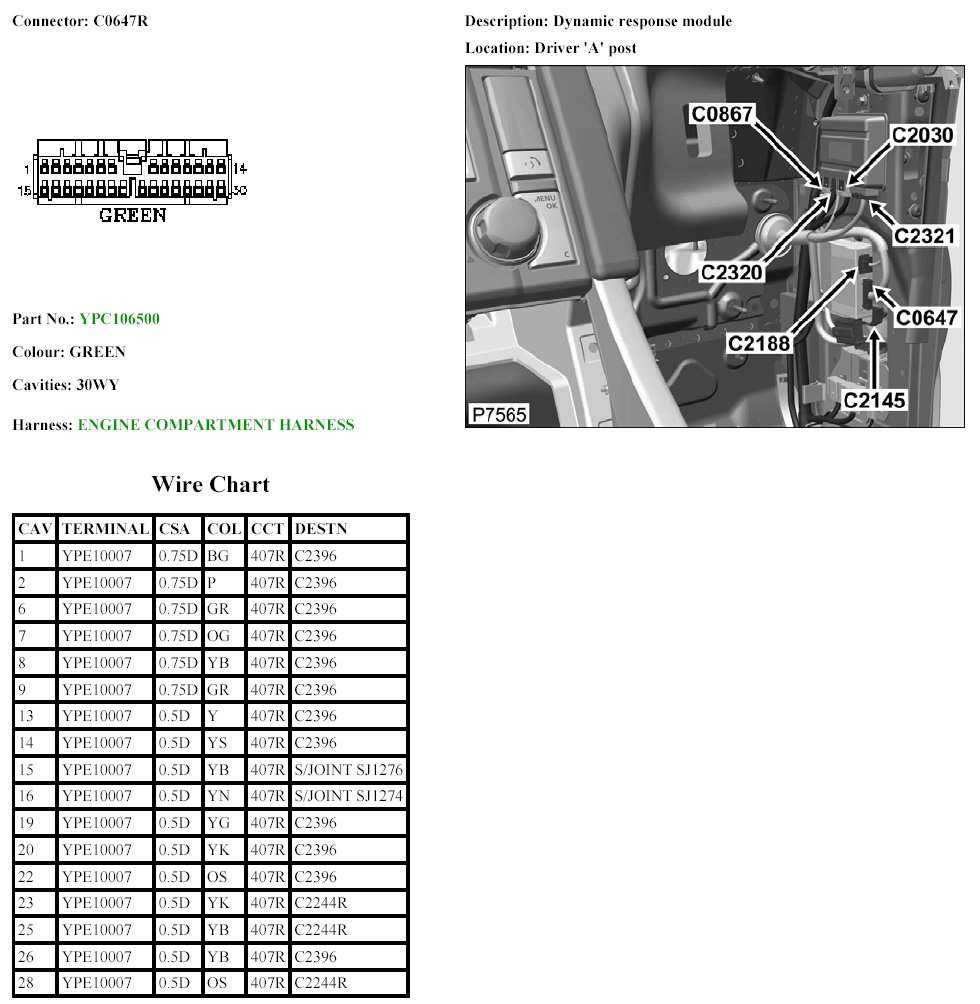

C0647R:

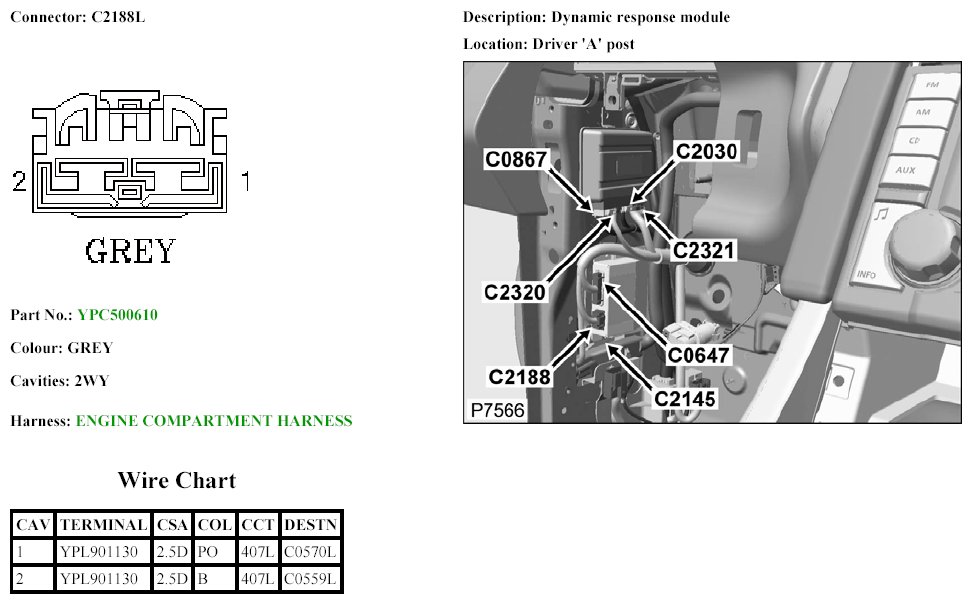

C2188L:

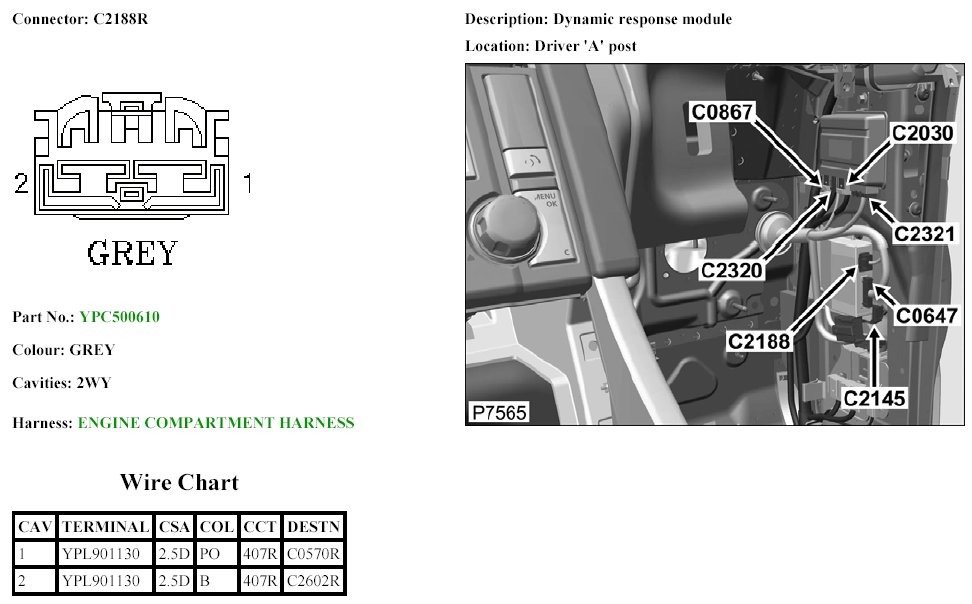

C2188R:
