Home >> Land Rover >> 2010 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations >> Module-Climate-Control
April 5, 2026: LEMON Manuals is launched! Read the announcement.

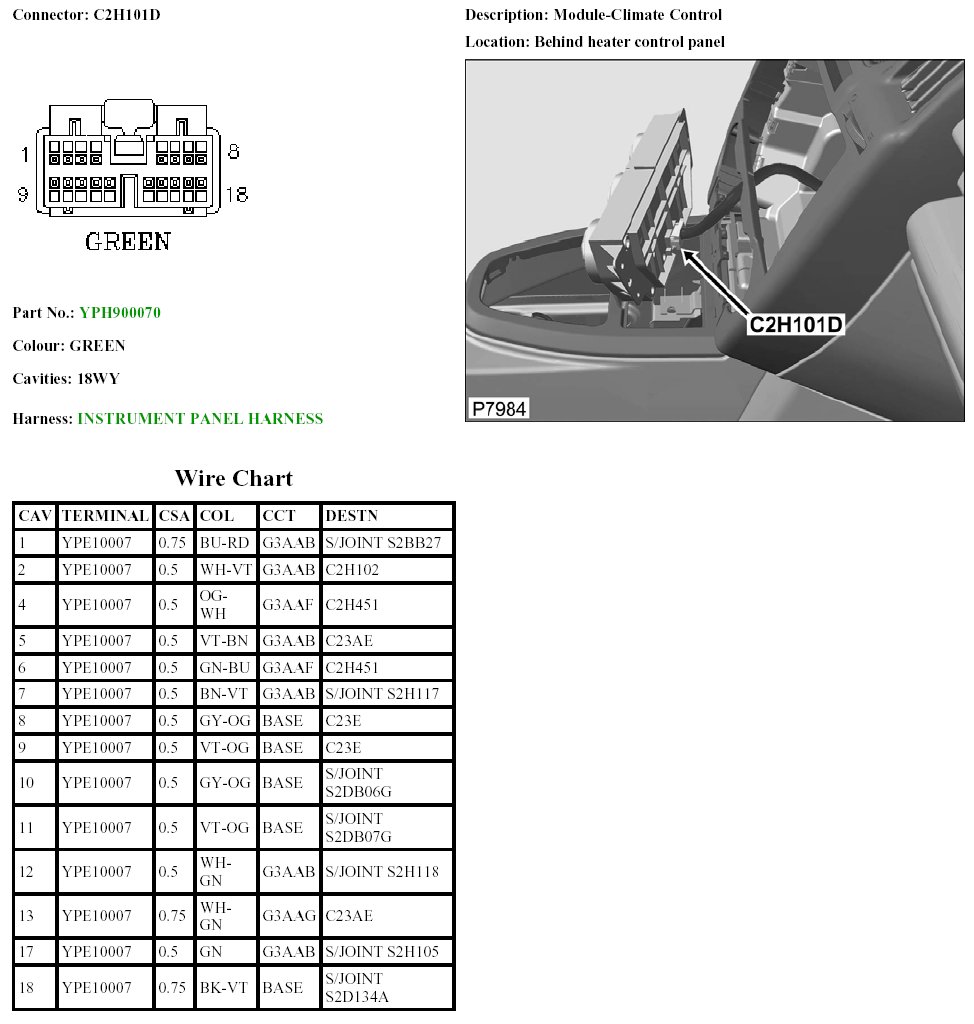

Module-Climate-Control



C2H101D


C2H101D:
