Power Seat Control Module: Testing and Inspection





Diagnostic Trouble Code (DTC) Index

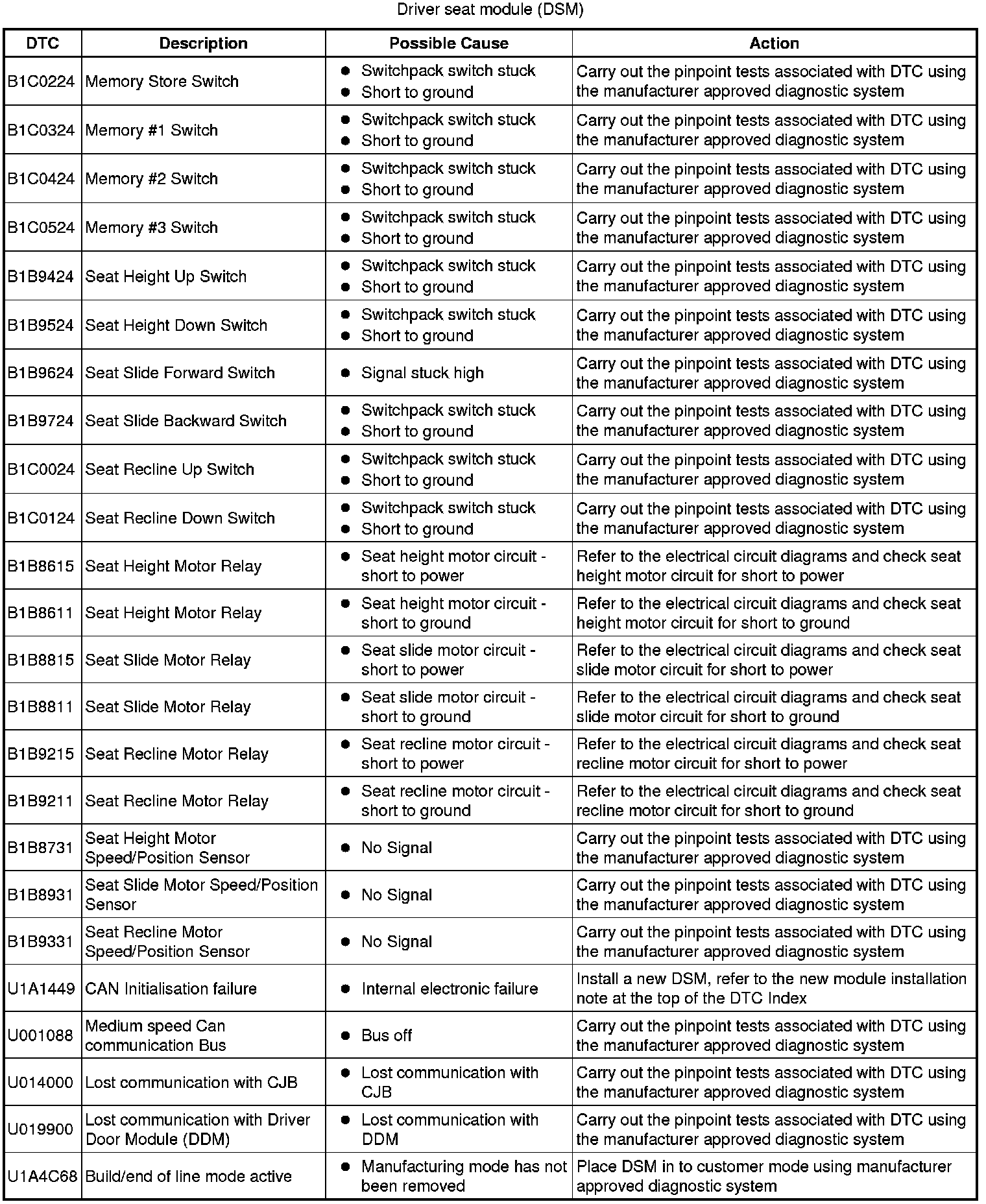

Driver Seat Module (DSM)
