Land Rover
>>
2011
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Battery Control Module
>>
C4Z01A
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

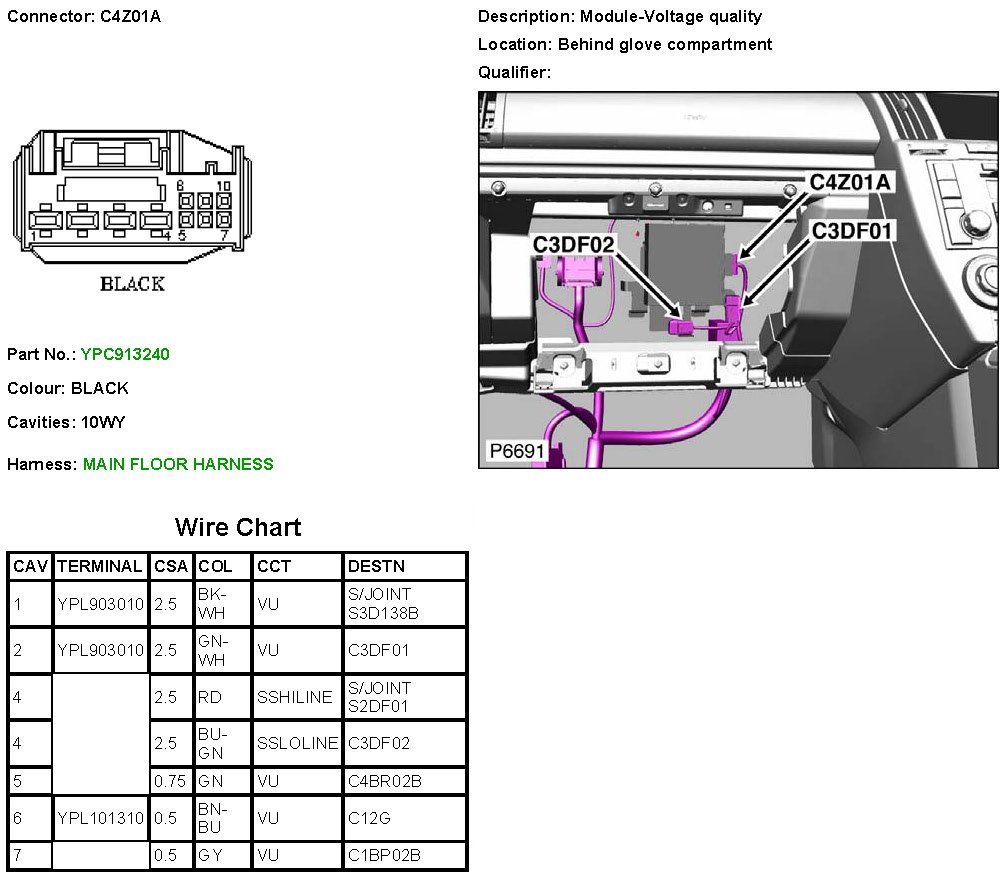

C4Z01A
C4Z01A
C4Z01A:
