Tailgate Open Switch Replacement (LTB00833NAS2)
Publication date: 2016-03-21Reference number: LTB00833NAS2
Supersedes refnos: LTB00833
TAILGATE OPEN SWITCH REPLACEMENT
TECHNICAL SERVICE BULLETIN
Reference Number(s): LTB00833NAS2, Date of Issue:
March 21, 2016
| LAND ROVER: | 2010-2015 LR2 (LF); 2012-2013 Range Rover Sport (LS) |
| SECTION: | 501-03 |
| AFFECTED VEHICLES: | LR2 (LF) Model Year: 2010-2015 VIN: 148520-439912 Assembly Plant: Halewood; Range Rover Sport (LS) Model Year: 2012-2013 VIN: 717166-814822 Assembly Plant: Solihull |
MARKETS
NAS
CONDITION SUMMARY
Situation: Where replacement of the tailgate open switch is required for any reason, only replace with the appropriate part listed in the Parts section below.
Cause: New parts and part numbers are available.
Action: Replace the tailgate open switch with the appropriate part number listed in the Parts section below.
PARTS
PARTS INFORMATION
| LR079909 | Tailgate open switch (vehicles without rear camera) | Quantity: 1 |
| LR083610 | Tailgate open switch (vehicles with rear camera) | Quantity: 1 |
TOOLS
Refer to Workshop Manual for any required special tools.
SECTION: 501-03
WARRANTY
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.
NOTE:
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY INFORMATION
| DESCRIPTION | SRO | TIME (HOURS) | CONDITION CODE | CAUSAL PART |
|---|---|---|---|---|
| Tailgate open switch - Renew - LR2 (L359) | 86.65.04 | 0.4 | 28 | LR042648 |
| Tailgate open switch - Renew - Range Rover Sport (L320) | 86.65.04 | 0.2 | 28 | LR042648 |
NOTE:
Normal Warranty procedures apply.

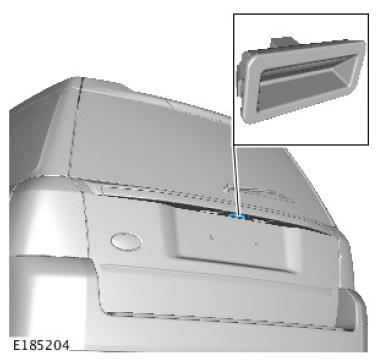

COMPONENT LOCATION
SERVICE INSTRUCTION
- Replace the tailgate open switch (see TOPIx Workshop Manual, section 501-03: Power liftgate switch).
