Home >> Land Rover >> 2011 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations >> C3470
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

C3470



C3470

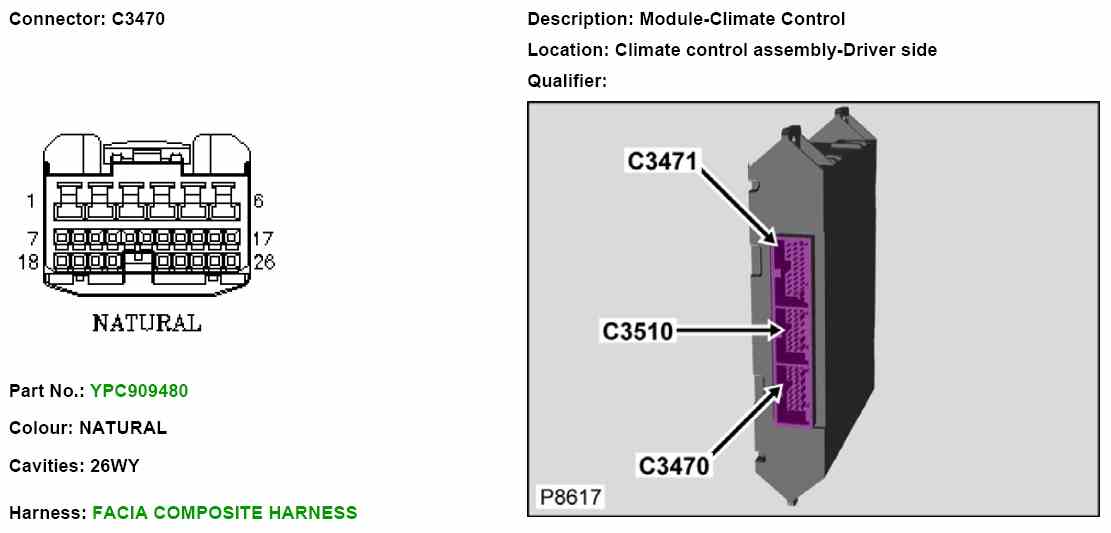

C3470 (Part 1):

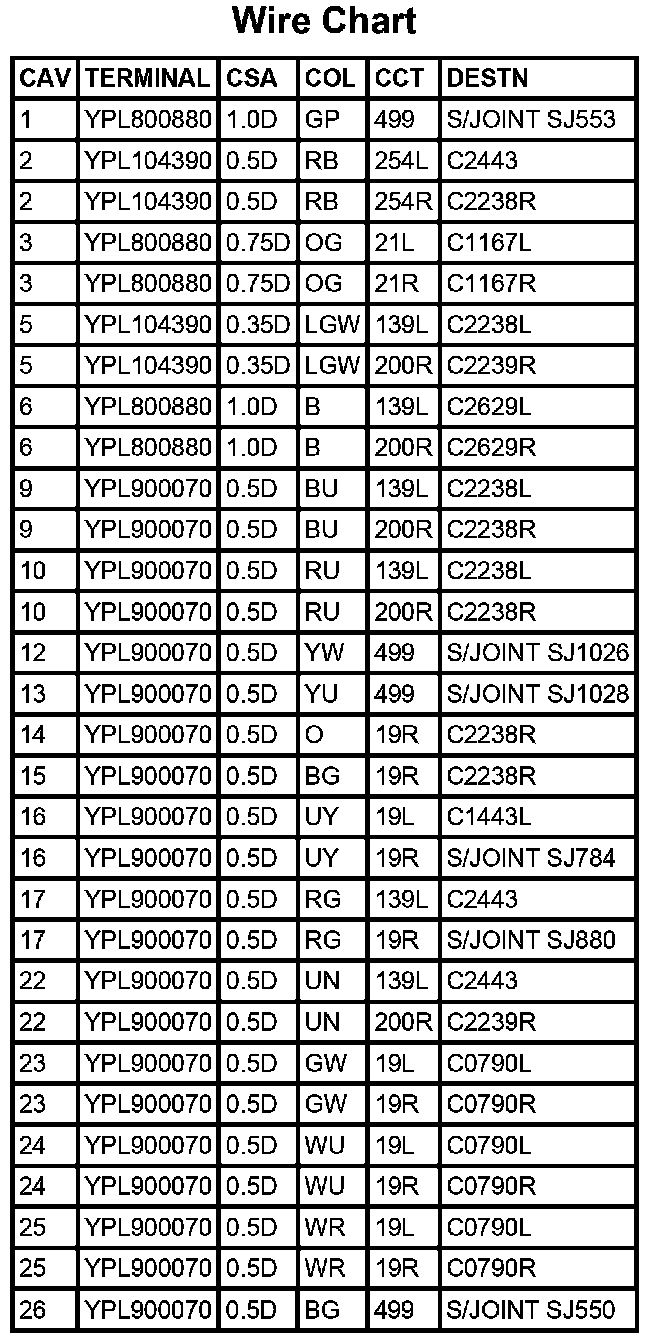

C3470 (Part 2):
