Lamp Out Module: Service and Repair

Lamp Outage Module

Removal
1 Remove the RH cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel

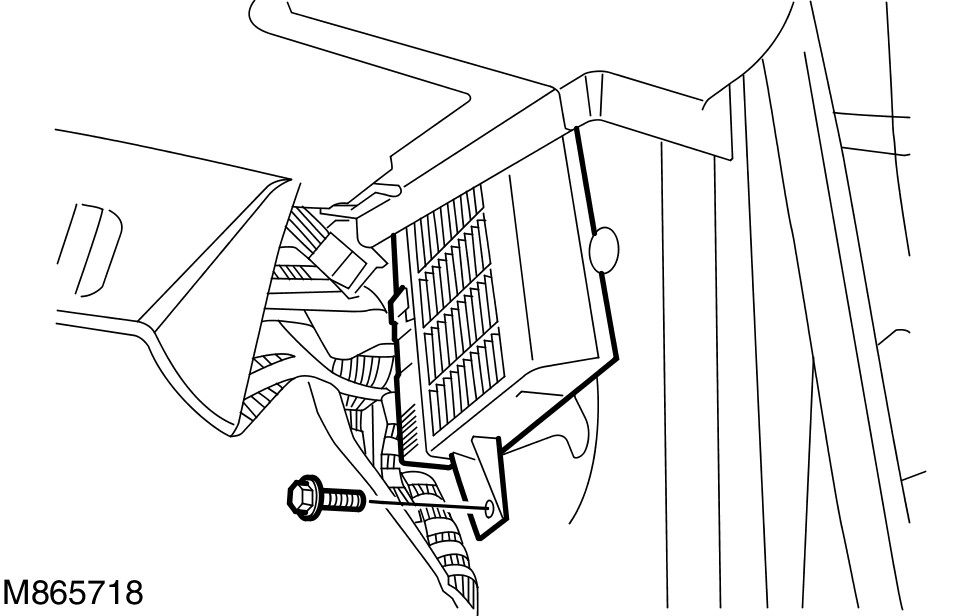

2 Release the lamp outage module.
- Remove the bolt.

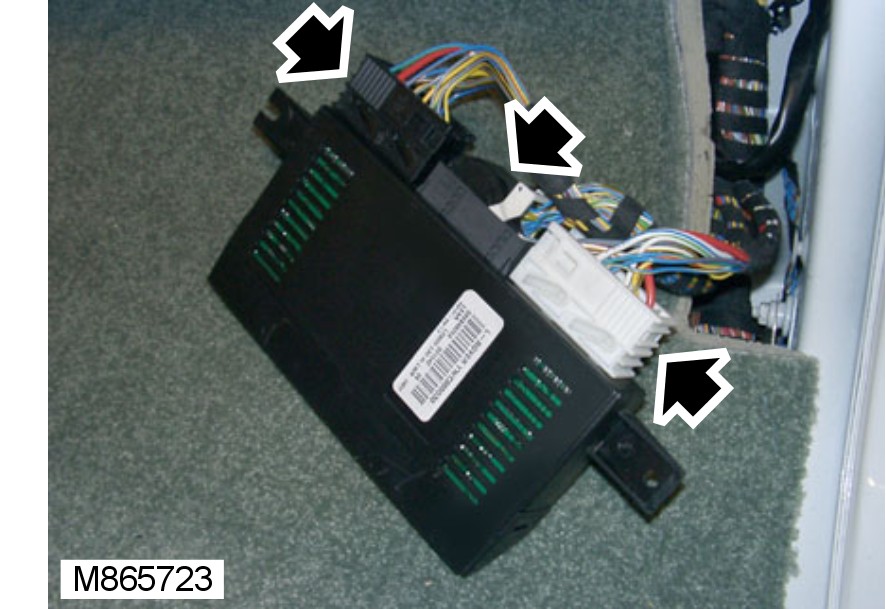

3 Remove the lamp outage module.
- Disconnect the 3 electrical connectors.

Installation
1 Install the lamp outage module.
- Connect the electrical connectors.
- Install the bolt.
2 Install the RH cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel
