Impact Sensor
>>
C3R219 Sensor-Side Impact-Driver Side-Rear
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

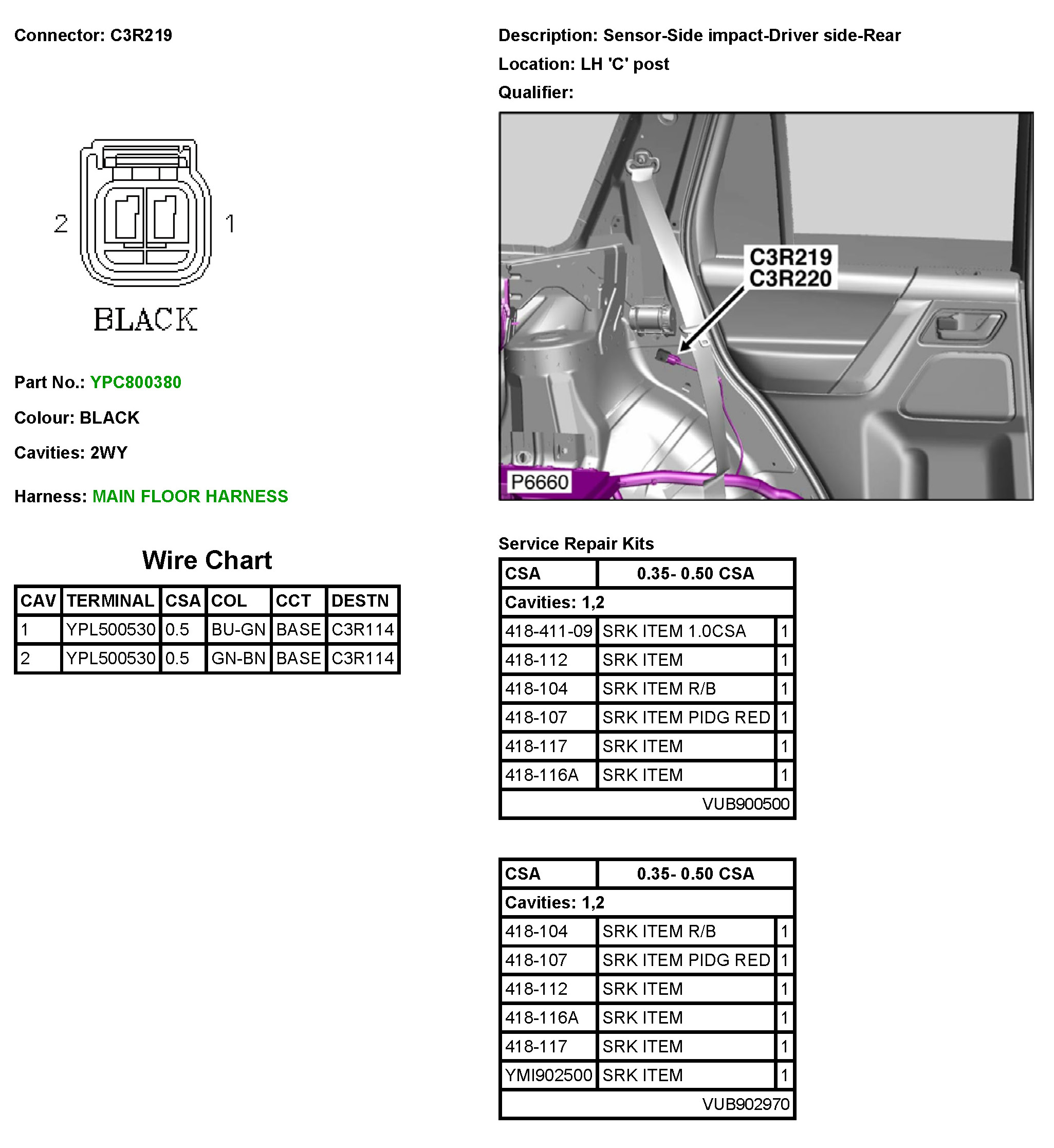

C3R219 Sensor-Side Impact-Driver Side-Rear
C3R219
