Home
>>
Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Lighting Module
>>
C4AT23A ECU-Trailer
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

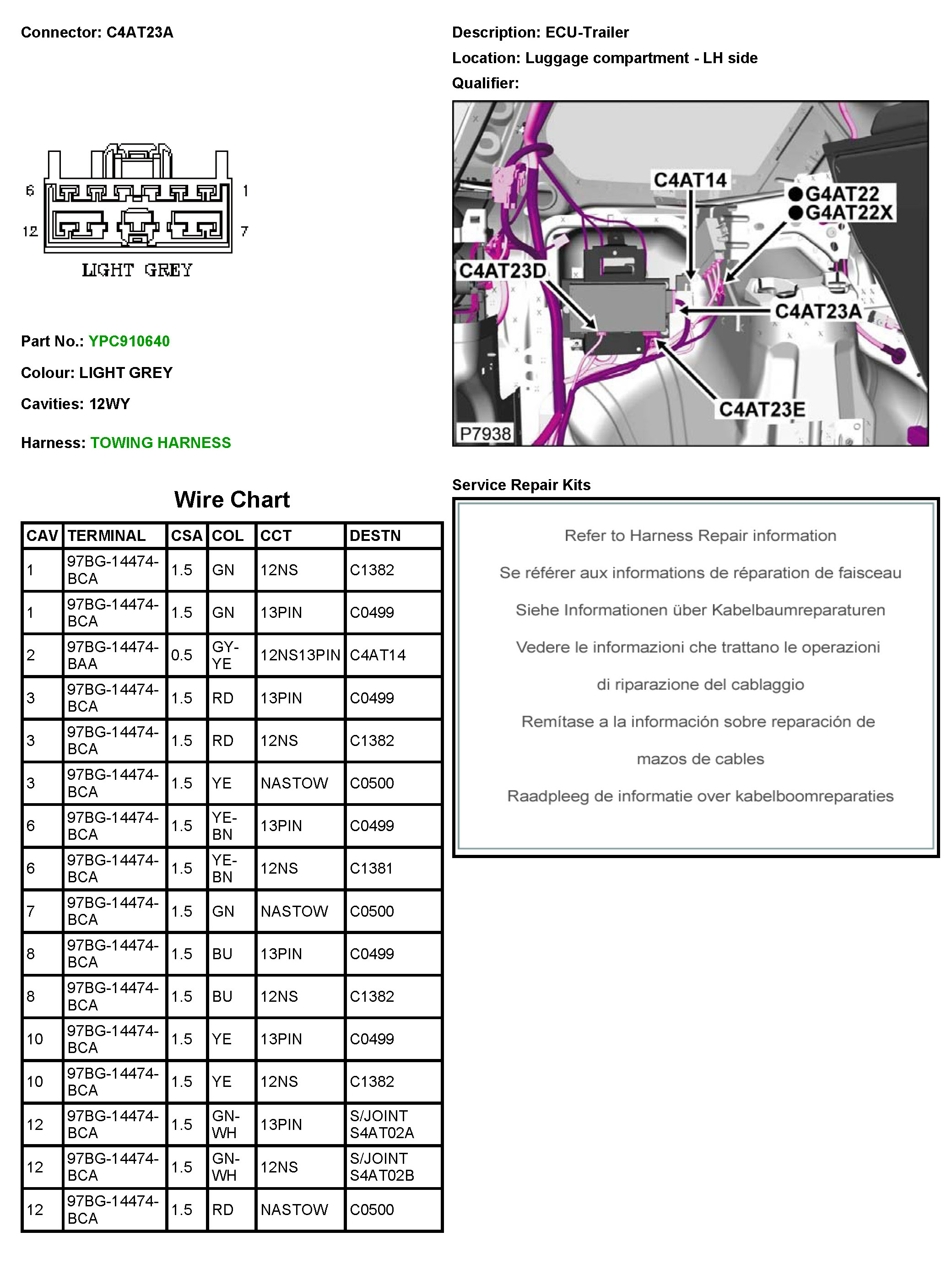

C4AT23A ECU-Trailer
C4AT23A
