Ultrasonic Sensor, Antitheft
>>
C3RT12X Sensor-Volumetric
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

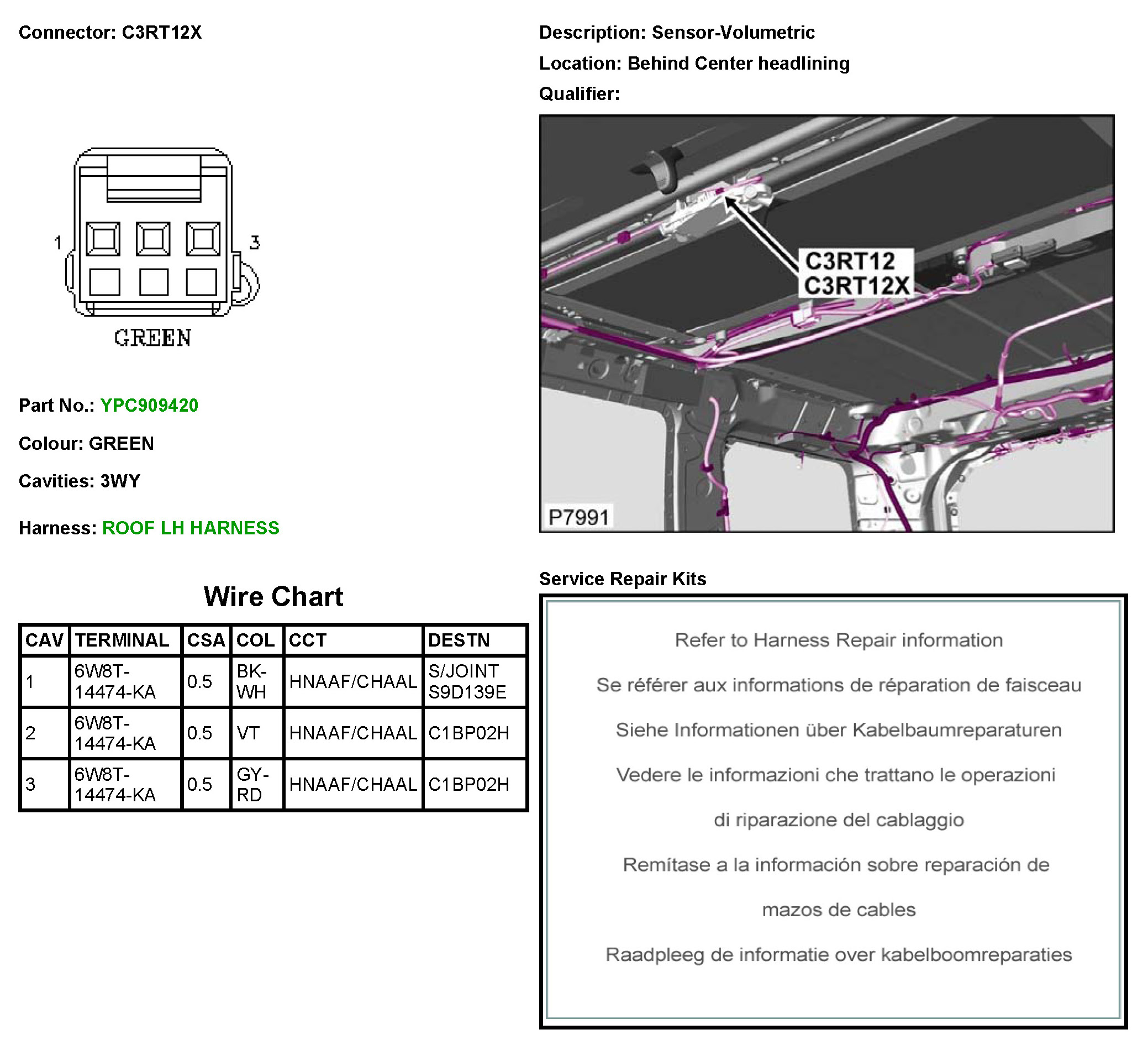

C3RT12X Sensor-Volumetric
C3RT12X
