Alignment: Service and Repair

Four-Wheel Alignment
1 Check the geometry specifications.
For additional information, refer to Specifications
2 Check the tie rod ends, suspension joints, wheel bearings and wheels and tires for damage, wear and free play.
3 Check and adjust tire pressures.
4 Position the vehicle on a calibrated, level, vehicle lift.
5 Release the vehicle parking brake.
6 Using only four wheel alignment equipment approved by Land Rover, check and adjust the wheel
alignment.

WARNING: Make sure to support the vehicle with axle stands.
7 Raise and support the vehicle.

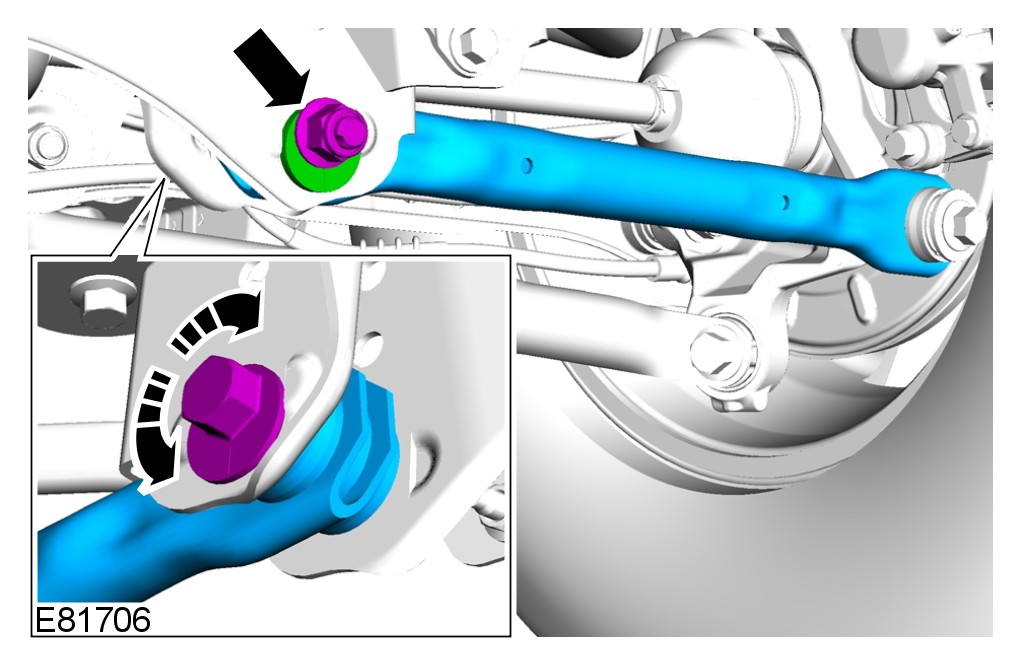

8 Adjust the rear toe.
Torque to: 175 Nm
9 Repeat the rear toe measurement.

10 Align the steering to straight ahead.

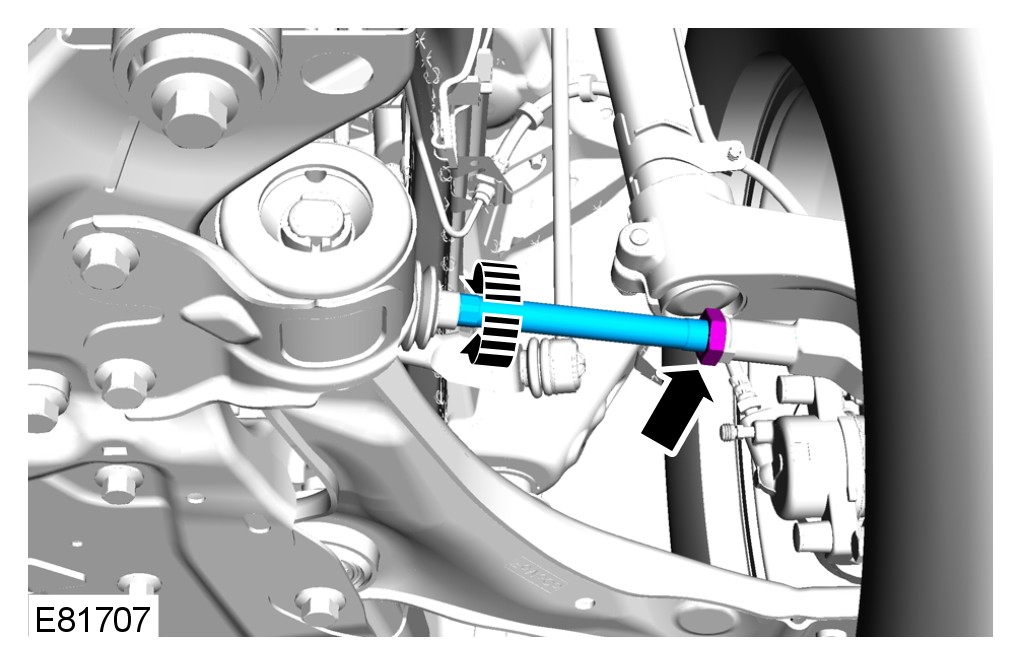

11 Adjust the front toe.
Torque to: 55 Nm

12 Check, and if necessary, repeat the wheel alignment procedure until the correct values are obtained.

13 Using the Land Rover approved diagnostic system, calibrate the steering angle sensor.
