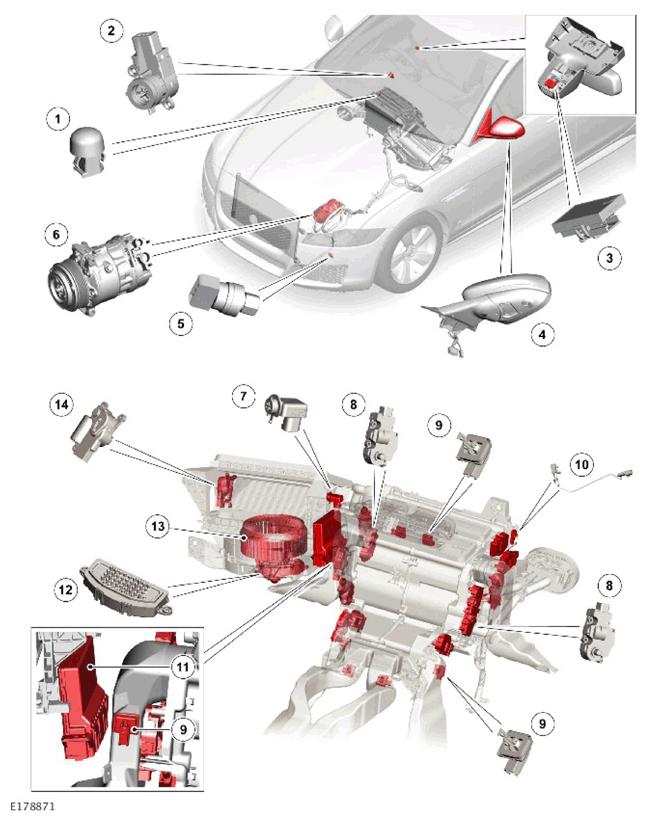

Component Location
WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Sunload sensor |
| 2 | In-vehicle temperature sensor |
| 3 | Humidity sensor |
| 4 | Ambient Air Temperature (AAT) sensor |
| 5 | Refrigerant pressure sensor |
| 6 | Air Conditioning (A/C) compressor |
| 7 | Pollution sensor |
| 8 | Distribution and temperature blend motor (10 off) |
| 9 | Duct air temperature sensor (8 off) |
| 10 | Evaporator temperature sensor |
| 11 | Automatic Temperature Control Module (ATCM) |
