Automatic Temperature Control Module
WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

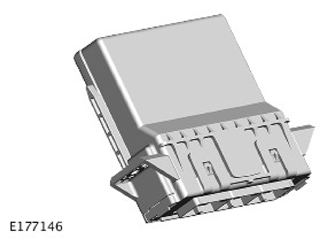

Air distribution and temperature is controlled by the Automatic Temperature Control Module (ATCM).
In response to commands from the Integrated Control Panel (ICP), the ATCM controls operation of 5 stepper motors mounted on the climate control assembly casing.
For additional information, refer to: Control Components
