Front Disc Brake: Notes
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

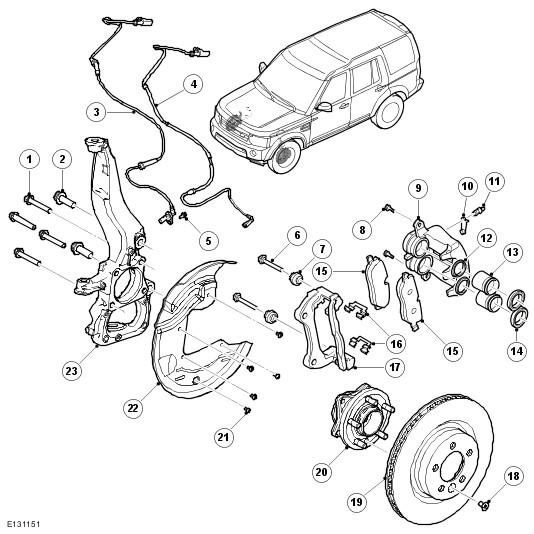

| Item Number | Description |
|---|---|
| 1 | Hub bearing assembly bolt (x 4) |
| 2 | Caliper bolt (x 2) |
| 3 | Wheel speed sensor |
| 4 | Brake pad wear sensor lead |
| 5 | Wheel speed sensor bolt |
| 6 | Guide pin (x 2) |
| 7 | Guide pin dust cover (x 2) |
| 8 | Guide pin bolt (x 2) |
| 9 | Caliper body |
| 10 | Bleed screw dust cap |
| 11 | Bleed screw |
| 12 | Piston seal (x 2) |
| 13 | Piston (x 2) |
| 14 | Piston dust cover (x 2) |
| 15 | Brake pad |
| 16 | Brake pad retainers |
| 17 | Caliper carrier |
| 18 | Brake disc retaining bolt |
| 19 | Brake disc |
| 20 | Hub bearing assembly |
| 21 | Dust shield screw (x 5) |
| 22 | Dust shield |
| 23 | Front knuckle |
