Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel console.

    Refer to: Instrument Panel Console

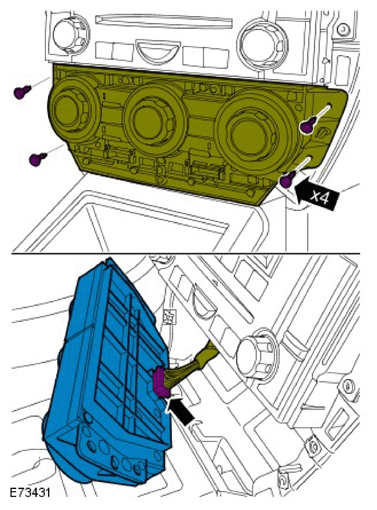

  2. G11592033

    Remove the climate control assembly.
