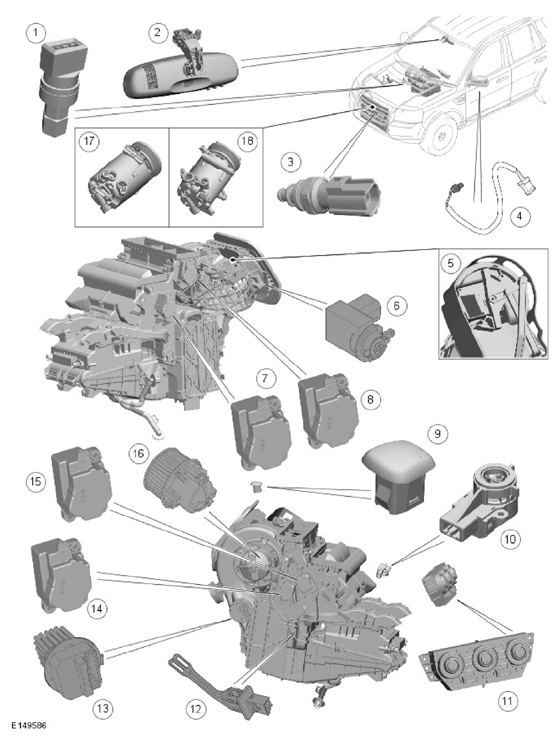

Component Location
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Refrigerant pressure sensor |
| 2 | Humidity sensor (if fitted) |
| 3 | Engine Coolant Temperature (ECT) sensor |
| 4 | Ambient Air Temperature (AAT) sensor |
| 5 | Recirculation motor |
| 6 | Pollution sensor (if fitted) |
| 7 | Right temperature blend motor |
| 8 | Demist distribution motor |
| 9 | Sunload sensor |
| 10 | In-vehicle temperature sensor |
| 11 | Automatic Temperature Control (ATC) module |
| 12 | Evaporator temperature sensor |
| 13 | Blower control module |
| 14 | Center distribution motor |
| 15 | Left temperature blend motor |
| 16 | Blower |
| 17 | Air Conditioning (A/C) compressor clutch (GTDi 2.0L PETROL) |
| 18 | A/C compressor clutch (TD4 2.2L DIESEL) |
