Sunload Sensor
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.

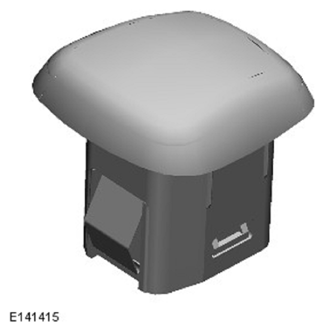

The sunload sensor is mounted in the center of the instrument panel upper surface. The sensor contains a photoelectric cell, which provides the CJB with an input of light intensity equating to the solar heating effect on the cabin.
The solar heating value is transmitted from the CJB to the ATC module over the medium speed CAN bus. The ATC module compensates for the solar heating effect by adjusting blower speed, air output temperature and air distribution to maintain the required cabin temperature.
