Interior Lighting: Notes
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

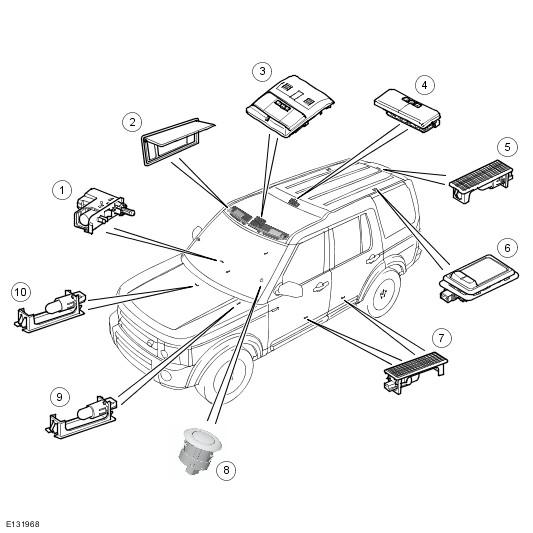

| Item Number | Description |
|---|---|
| 1 | Glove compartment lamp and switch |
| 2 | Vanity mirror lamps |
| 3 | 1st row interior lamp and map reading lamps |
| 4 | 2nd row interior lamp and map reading lamps |
| 5 | Luggage compartment lamp |
| 6 | 3rd row map lamps (if fitted) |
| 7 | Puddle lamps |
| 8 | Ignition push button illumination |
| 9 | Driver footwell lamp |
| 10 | Passenger footwell lamp |
