Dynamic Response Module: Removal
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

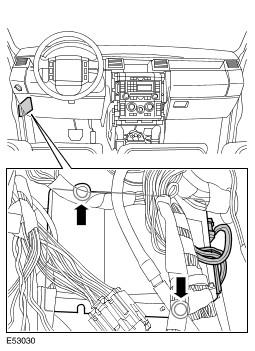

The dynamic response module is always located on the driver's side of the vehicle.
- Remove the cowl side trim panel. Refer to Cowl Side Trim Panel .
- Remove the closing trim panel.
- Release the clip.
- Remove the 2 screws.
- Disconnect the electrical connector.
- Remove the dynamic response module.
- Remove the 2 bolts.
- Disconnect the 2 electrical connectors.
