Blower Motor: Removal

    NOTE: The recirculation blend door must be closed in order for the removal of the recirculation blend door housing.
  1. Activate recirculation.
  2. Disconnect the battery ground cable. Refer to SPECIFICATIONS .
  3. Remove the accelerator pedal assembly. Refer to the appropriate Accelerator Pedal information.
  4. See figure

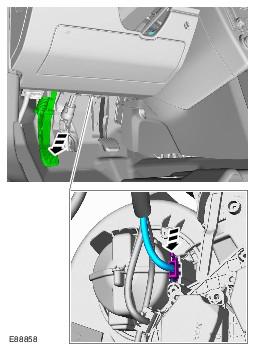

    GJ0021182
  5. Remove the glove compartment. Refer to GLOVE COMPARTMENT .
  6. See figure
    GJ0021183
  7. See figure
    GJ0021184
  8. See figure
    GJ0021185
  9. See figure
    GJ0021186
  10. See figure
    GJ0021187
  11. Remove the CJB bracket.
    GJ0021188
  12. See figure

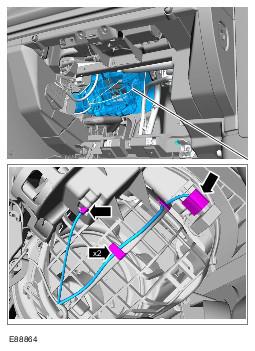

    GJ0021189
  13. See figure
    GJ0021190
  14. Install the special tool guide to the blower motor.

    Remover/Installer, Blower Motor (412-140)

    GJ0021191
  15. With the marking upwards, use the guide to install the remainder of the special tool to the blower motor.

    Remover/Installer, Blower Motor (412-140)

    GJ0021192
    16. CAUTION: Make sure that the special tool is correctly located.
    • Rotate the special tool counter-clockwise to release the blower motor assembly.

      Remover/Installer, Blower Motor (412-140)

    • Remove the blower motor assembly.
    • Release the blower motor locking tang.

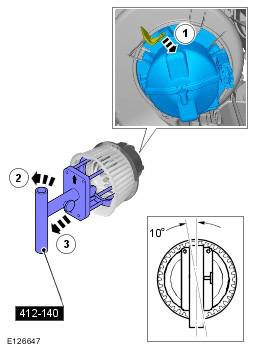

    GJ0021193
