Removal And Installation: Condenser: Removal
- Remove the cover and disconnect the battery ground cable. Refer to SPECIFICATIONS .
- Raise and support the vehicle.
- Recover the A/C refrigerant. Refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
- Remove the front bumper. Refer to FRONT BUMPER .
- Remove the radiator air deflector.
- Release power steering cooler and secure aside.

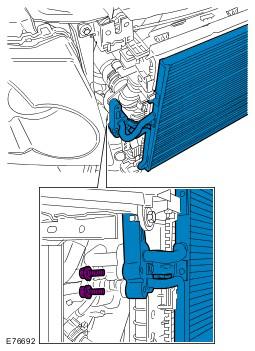

- Disconnect the A/C condenser refrigerant lines.

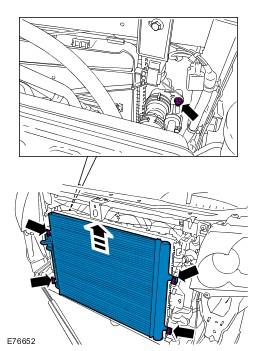

- Remove the A/C condenser.
WARNING:
Make sure to support the vehicle with axle stands.
CAUTION:
Make sure that all openings are sealed.
NOTE:
Remove and discard the O-ring seals.
