Viewing Oil Level Display

  1. Switch on the ignition (do not start the engine).
  2. Ensure Park (P) is selected.
  3. Select the SERVICE MENU (7) via the INSTRUMENT PANEL MENU. See Fig 1.
  4. Select OIL LEVEL DISPLAY. The current oil level status and topping-up advice is displayed in the instrument panel.

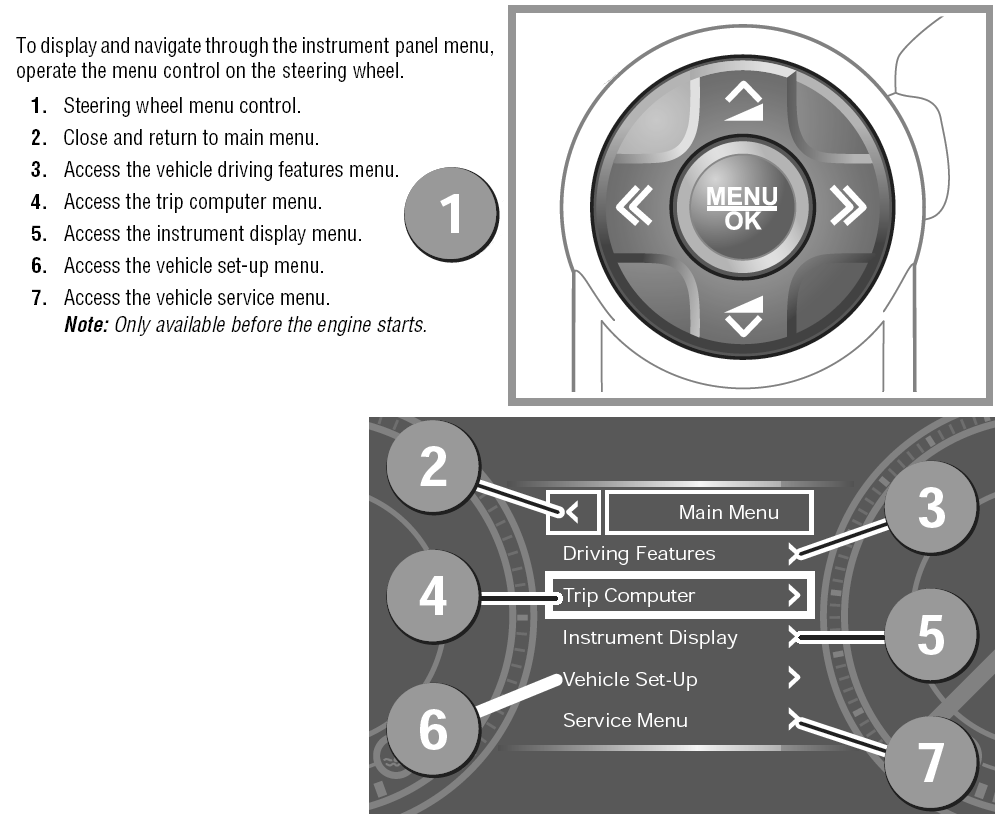

Fig 1: Identifying Instrument Panel Menu Display & Controls
G00525202Courtesy of LAND ROVER NORTH AMERICA, INC.
