Brake Fluid Level Sensor/Switch
>>
C0026R Switch-Brake-Fluid-Level
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

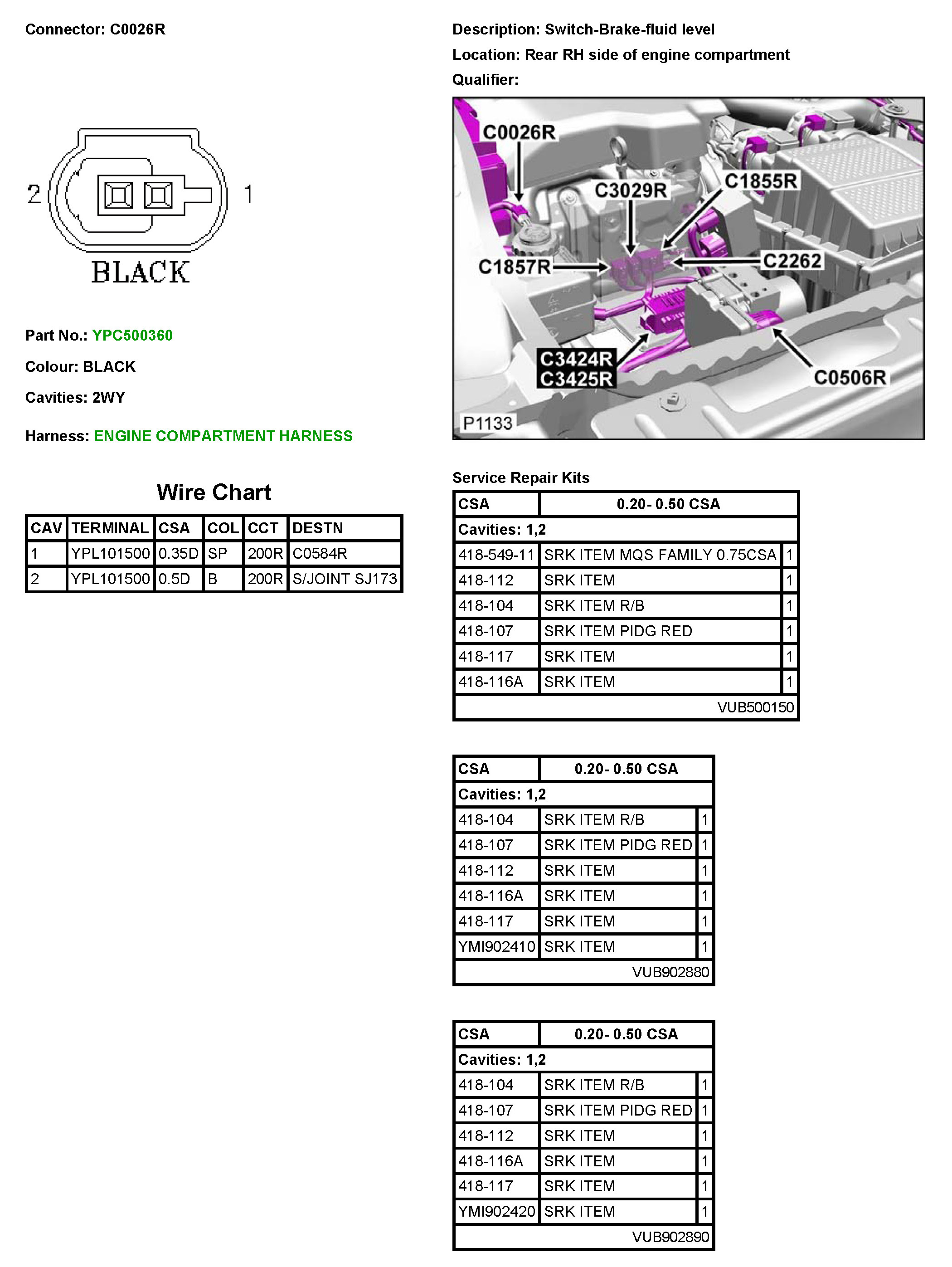

C0026R Switch-Brake-Fluid-Level
C0026R
