Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
>>
C2164S Rear Differential Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

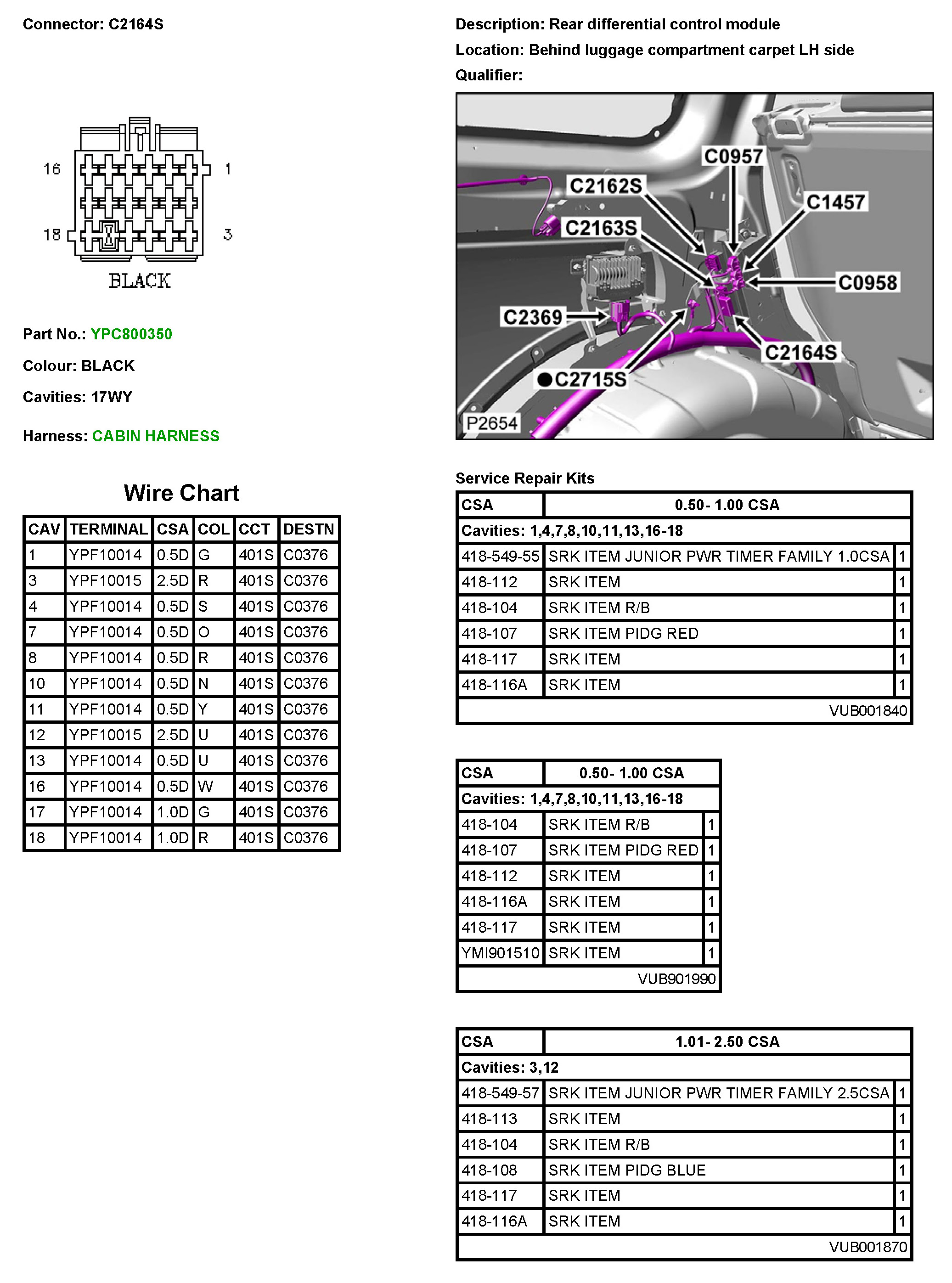

C2164S Rear Differential Control Module
C2164S
