Door Module
>>
C2018 Module-Rear Door
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

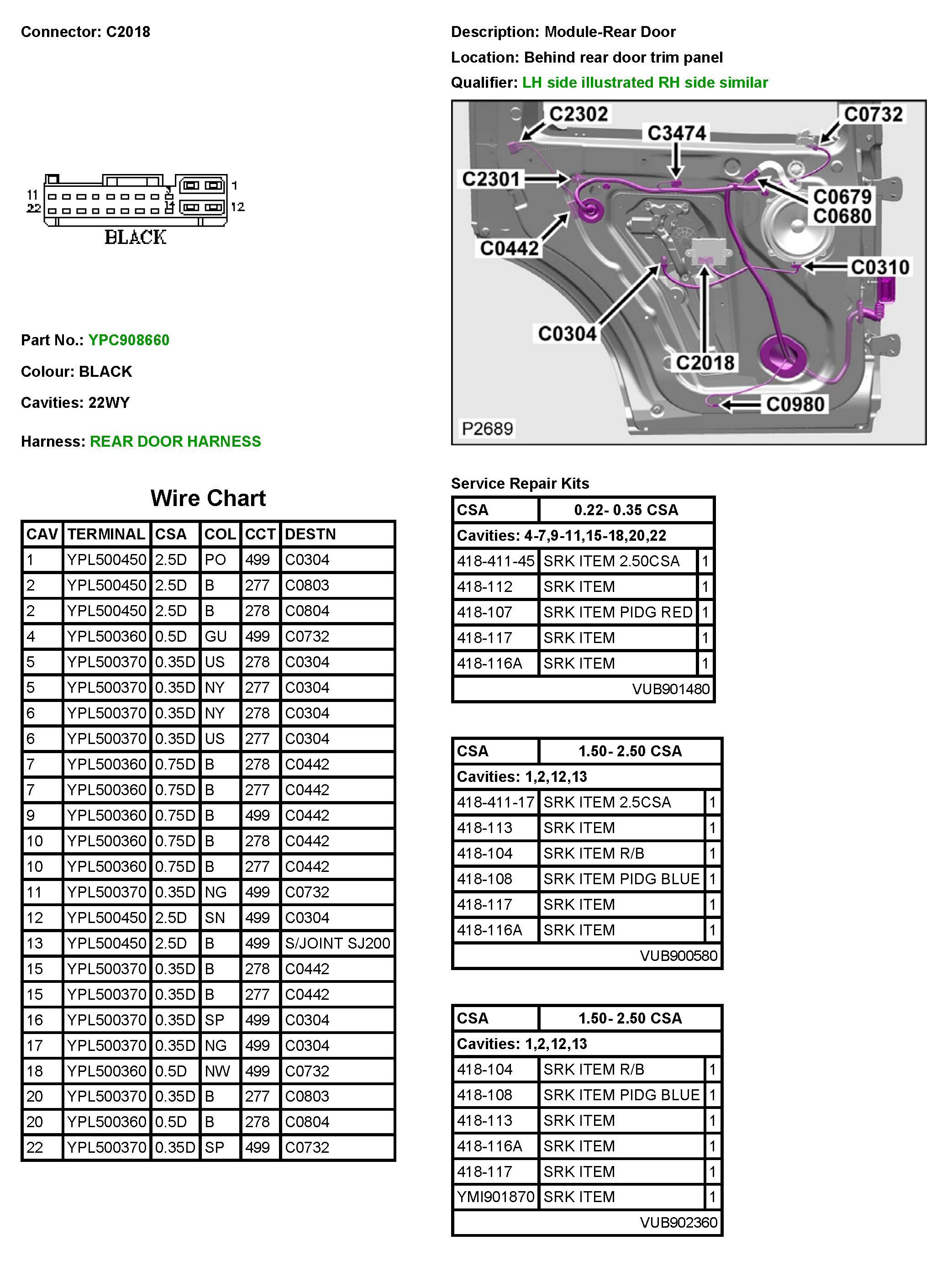

C2018 Module-Rear Door
C2018
