Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Entertainment System Control Module >> C3720S Module-Rear Seat-Entertainment
April 5, 2026: LEMON Manuals is launched! Read the announcement.

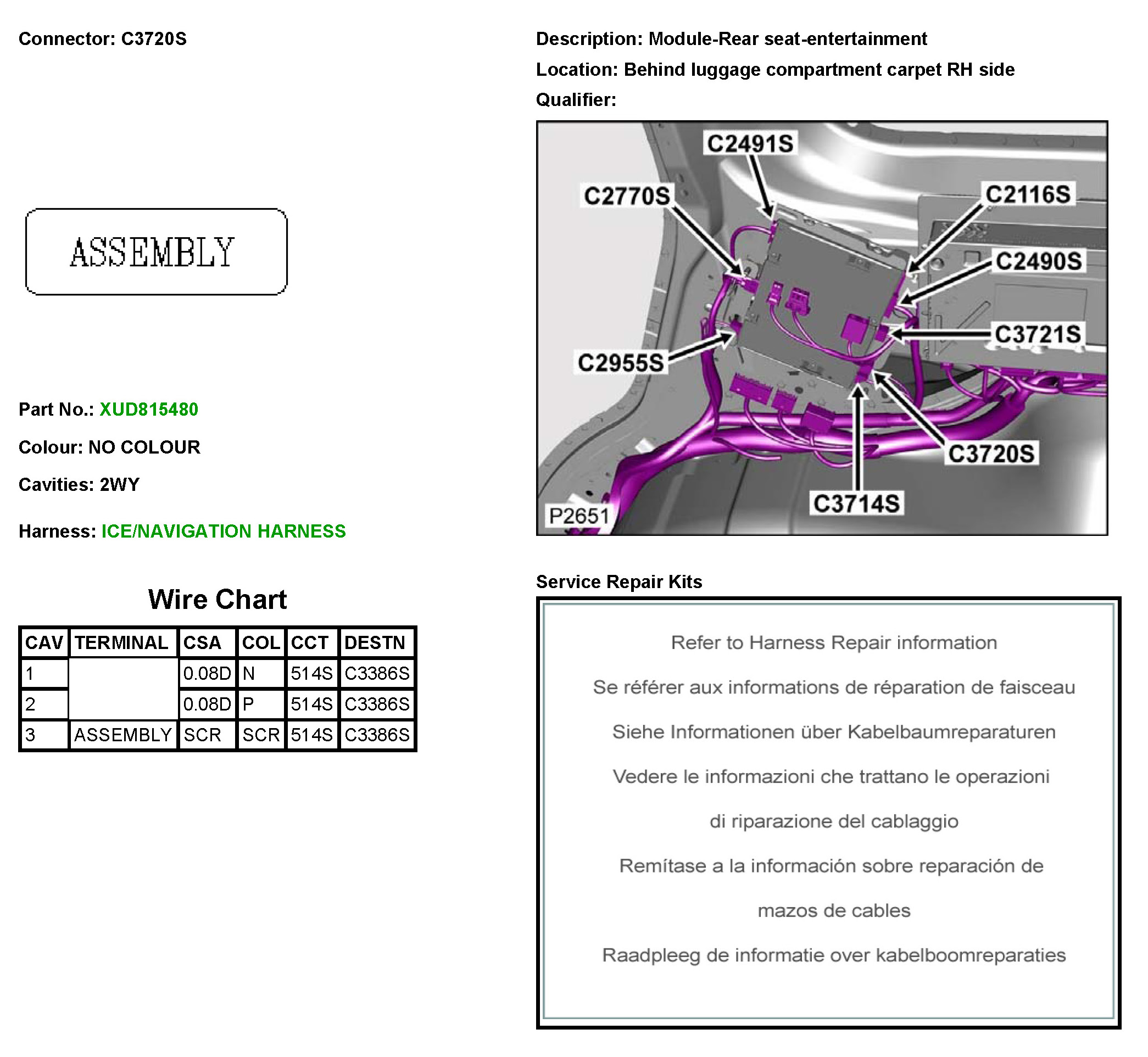

C3720S Module-Rear Seat-Entertainment



C3720S
