Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>
C1699 Sensor-Height-Rear-LH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

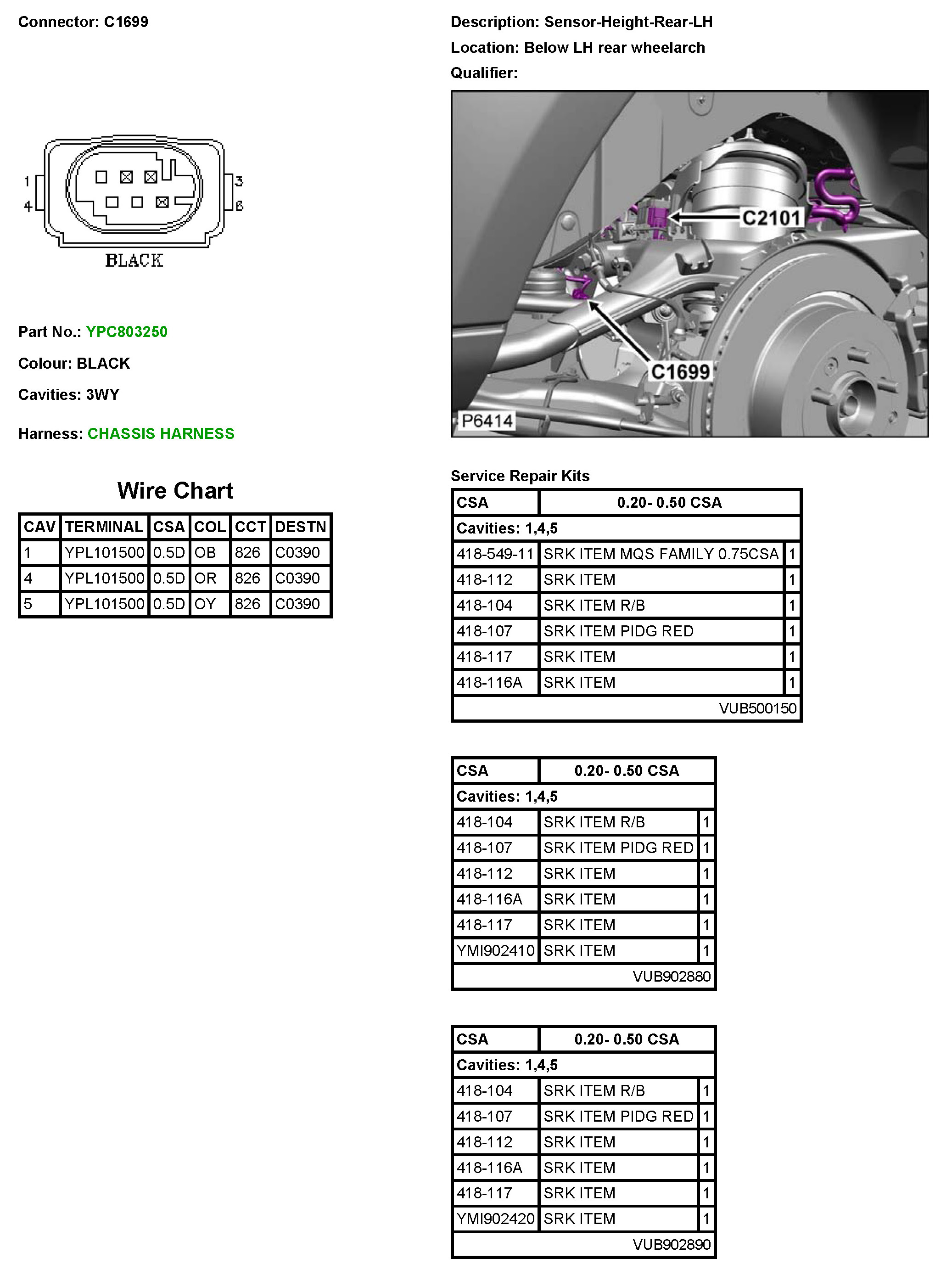

C1699 Sensor-Height-Rear-LH
C1699
