Steering Column Lock
>>
C2055R Module-Steering Column lock
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

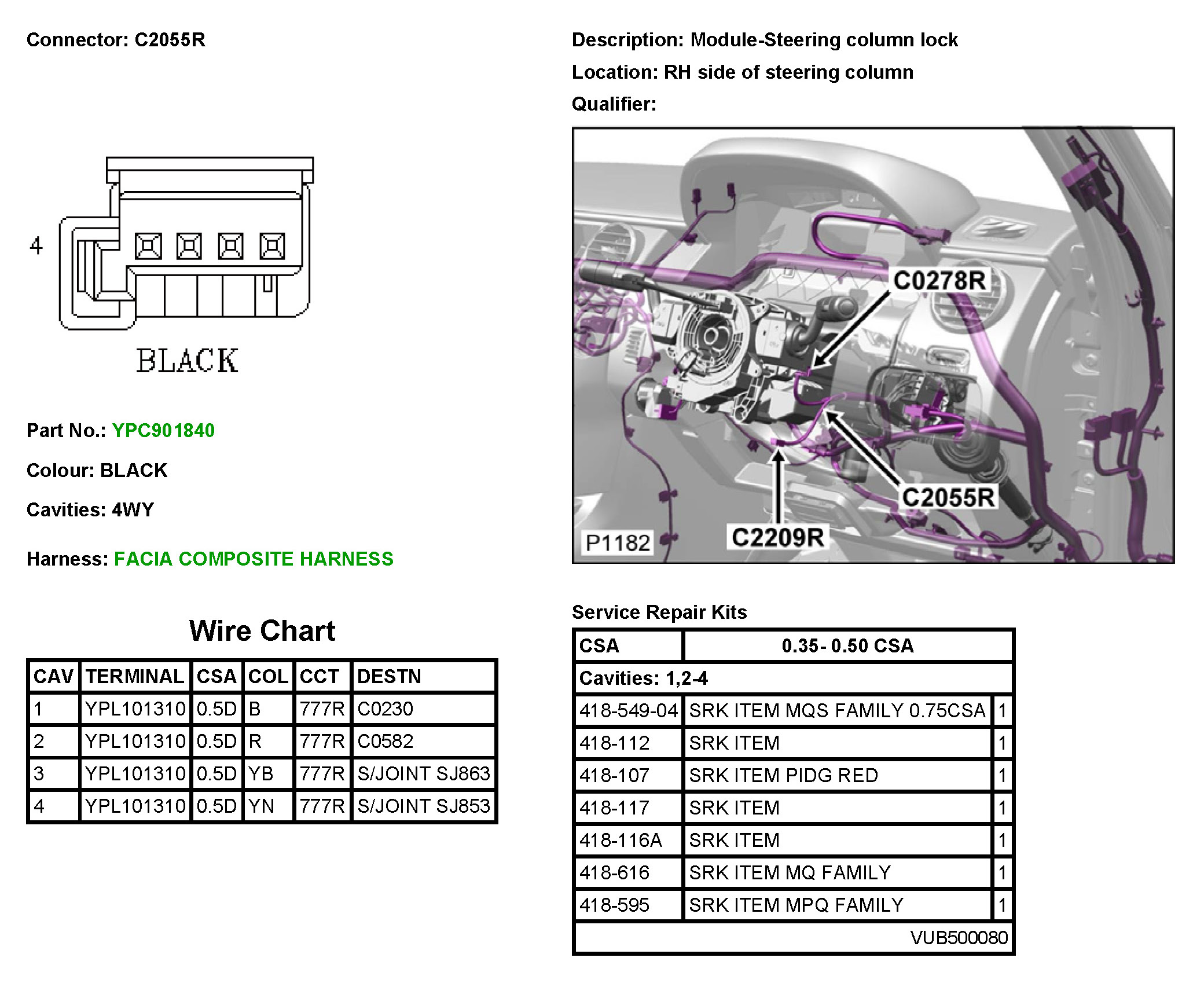

C2055R Module-Steering Column lock
C2055R
