Solar Sensor: Service and Repair





Sunload Sensor

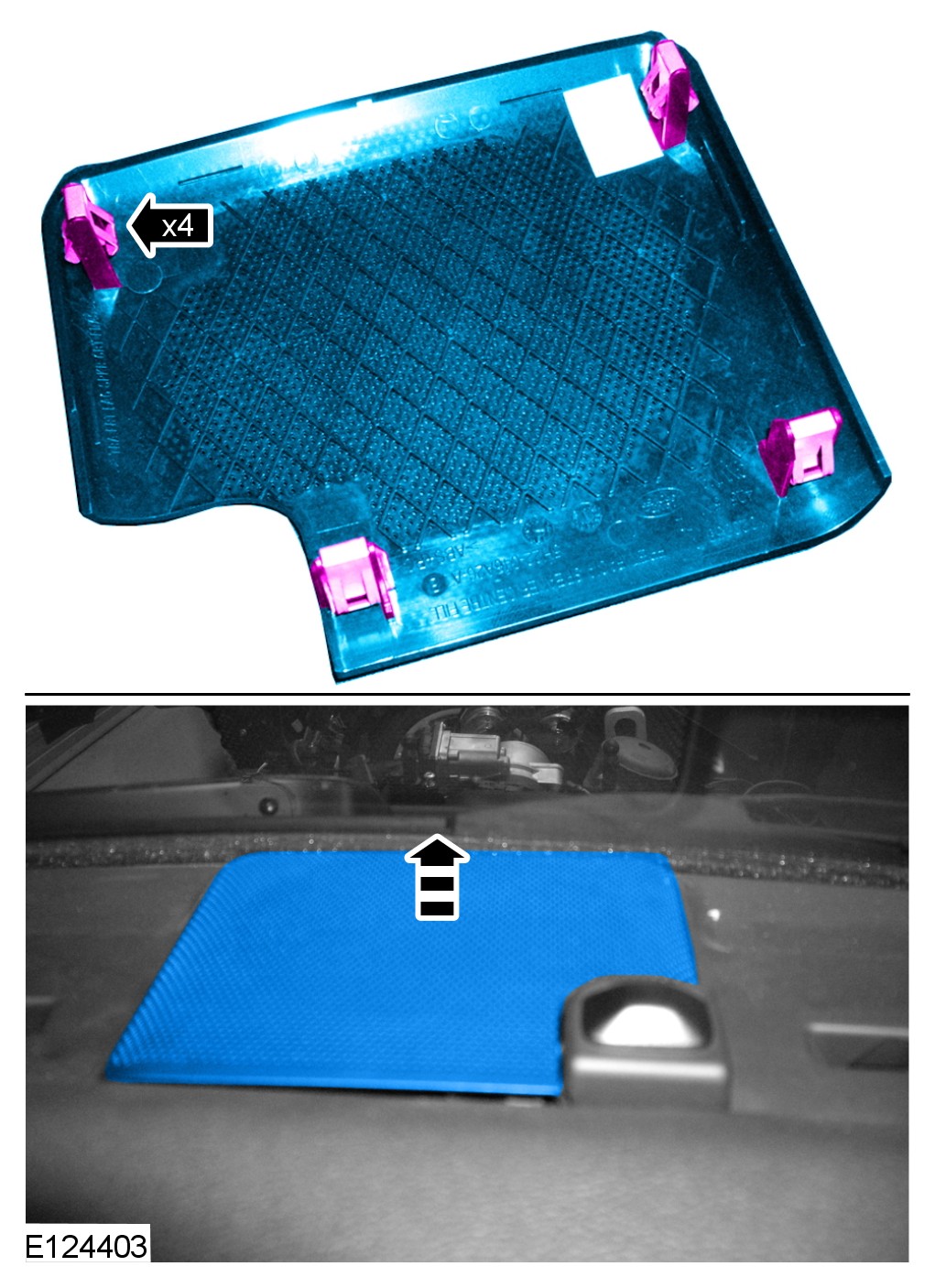

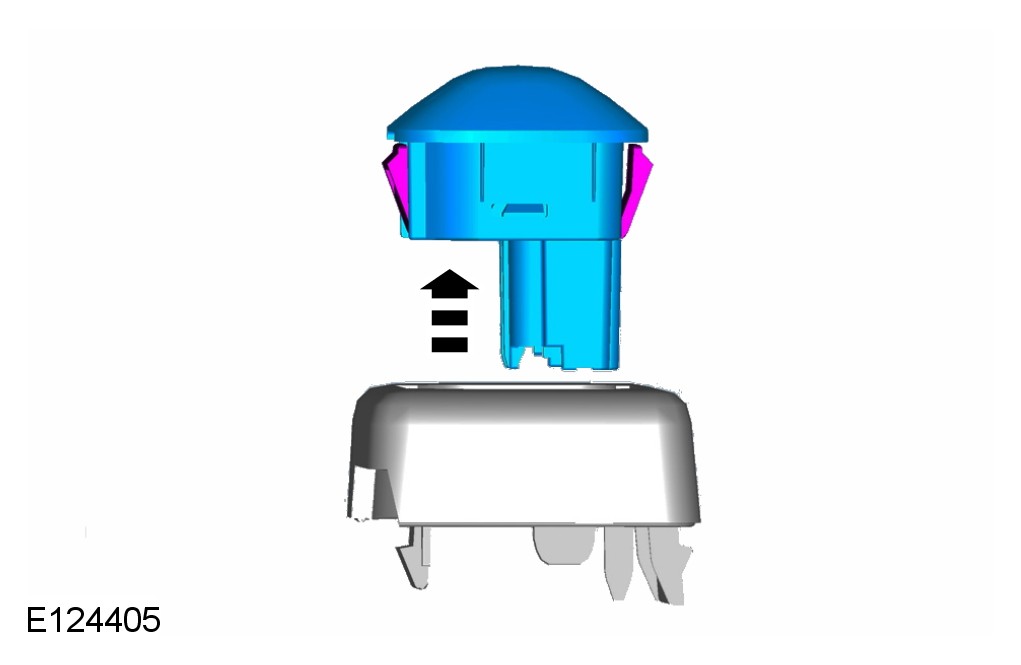

Removal

NOTE:
Removal steps in this procedure may contain installation details.




1




2




3

Installation
1 To install, reverse the removal procedure.
