Power Steering

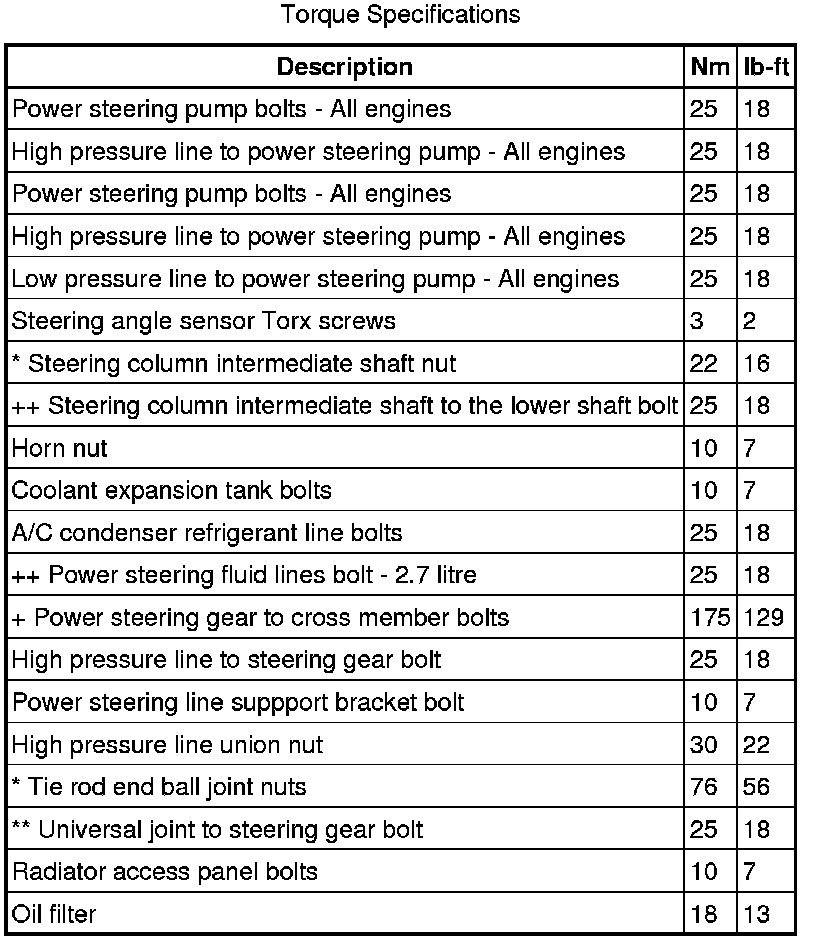

Specifications










* New nut(s) must be fitted
+ New cage nuts must be fitted
** New 'Patchlok' bolt must be fitted
++ New bolt must be fitted
