Front Door Window Control Switch





Front Door Window Control Switch

Removal

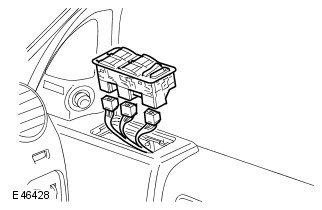

1 Remove the window control switch.
- Carefully release the switch.
- Disconnect the 3 electrical connectors.

Installation
1 To install, reverse the removal procedure.
