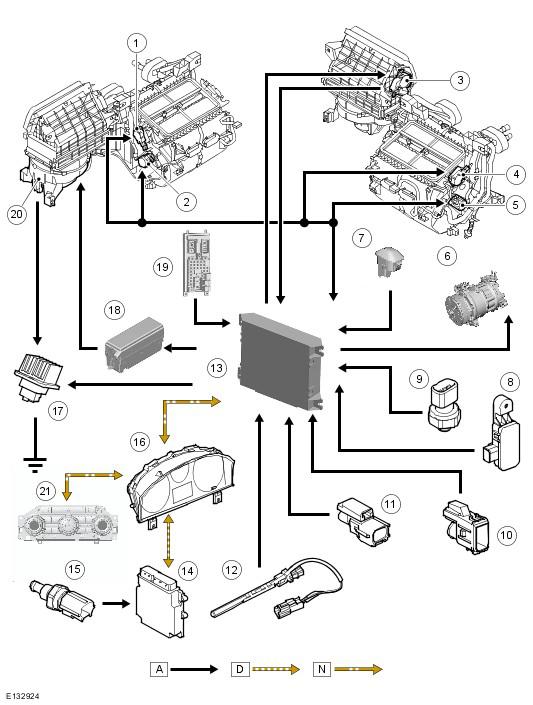

Control Diagram
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Face and feet distribution motor |
| 2 | LH temperature blend motor |
| 3 | Recirculation motor |
| 4 | Windshield distribution motor |
| 5 | RH temperature blend motor |
| 6 | A/C compressor solenoid valve |
| 7 | Sunlight sensor |
| 8 | Pollution sensor |
| 9 | Refrigerant pressure sensor |
| 10 | In-vehicle temperature sensor (all except Japan) or in-vehicle temperature and humidity sensor (Japan only) |
| 11 | Ambient air temperature sensor |
| 12 | Evaporator temperature sensor |
| 13 | ATC module |
| 14 | ECM |
| 15 | ECT sensor |
| 16 | Instrument cluster |
| 17 | Blower control module |
| 18 | BJB (battery junction box) |
| 19 | CJB |
| 20 | Blower |
| 21 | Integrated control Panel |
NOTE:
A
= Hardwired connections; D
= High speed controller area network (CAN) bus; N
= Medium speed controller area network (CAN) bus
