Anti-Lock Control Diagram
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

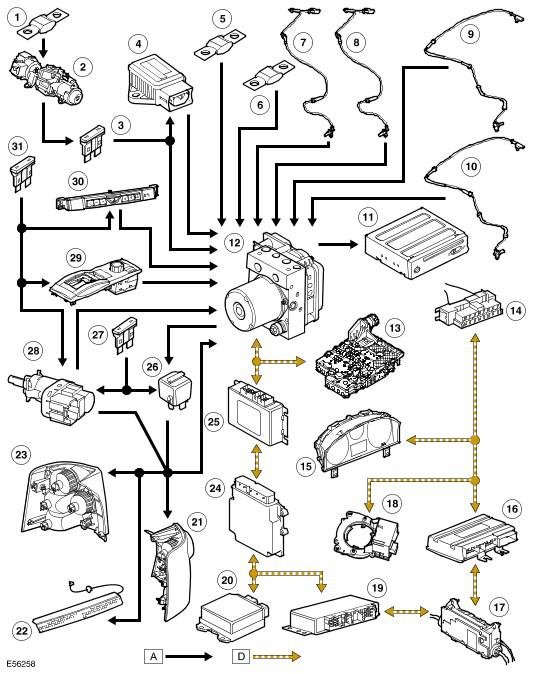

| Item Number | Description |
|---|---|
| 1 | Fusible link 11E, battery junction box (BJB) |
| 2 | Ignition switch |
| 3 | Fuse 37P, CJB |
| 4 | Yaw rate and lateral acceleration sensor |
| 5 | Fusible link 9E, BJB |
| 6 | Fusible link 23E, BJB |
| 7 | Front wheel speed sensor |
| 8 | Front wheel speed sensor |
| 9 | Rear wheel speed sensor |
| 10 | Rear wheel speed sensor |
| 11 | Navigation computer |
| 12 | ABS module |
| 13 | TCM |
| 14 | Diagnostic socket |
| 15 | Instrument cluster |
| 16 | Air suspension control module |
| 17 | Parking brake module |
| 18 | Steering angle sensor |
| 19 | Rear differential control module |
| 20 | Restraints Control Module (RCM) |
| 21 | Left stoplamp |
| 22 | Center stoplamp |
| 23 | Right stoplamp |
| 24 | ECM |
| 25 | Transfer box control module |
| 26 | HDC relay (non-serviceable, integrated into CJB) |
| 27 | Fuse 15P, CJB |
| 28 | Stoplamp switch |
| 29 | HDC switch |
| 30 | DSC switch |
| 31 | Fuse 66P, CJB |
NOTE:
A = Hardwired connection; D = High speed controller area network (CAN) bus
