C1630 Integrated Climate Control-Module and Switch Pack
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

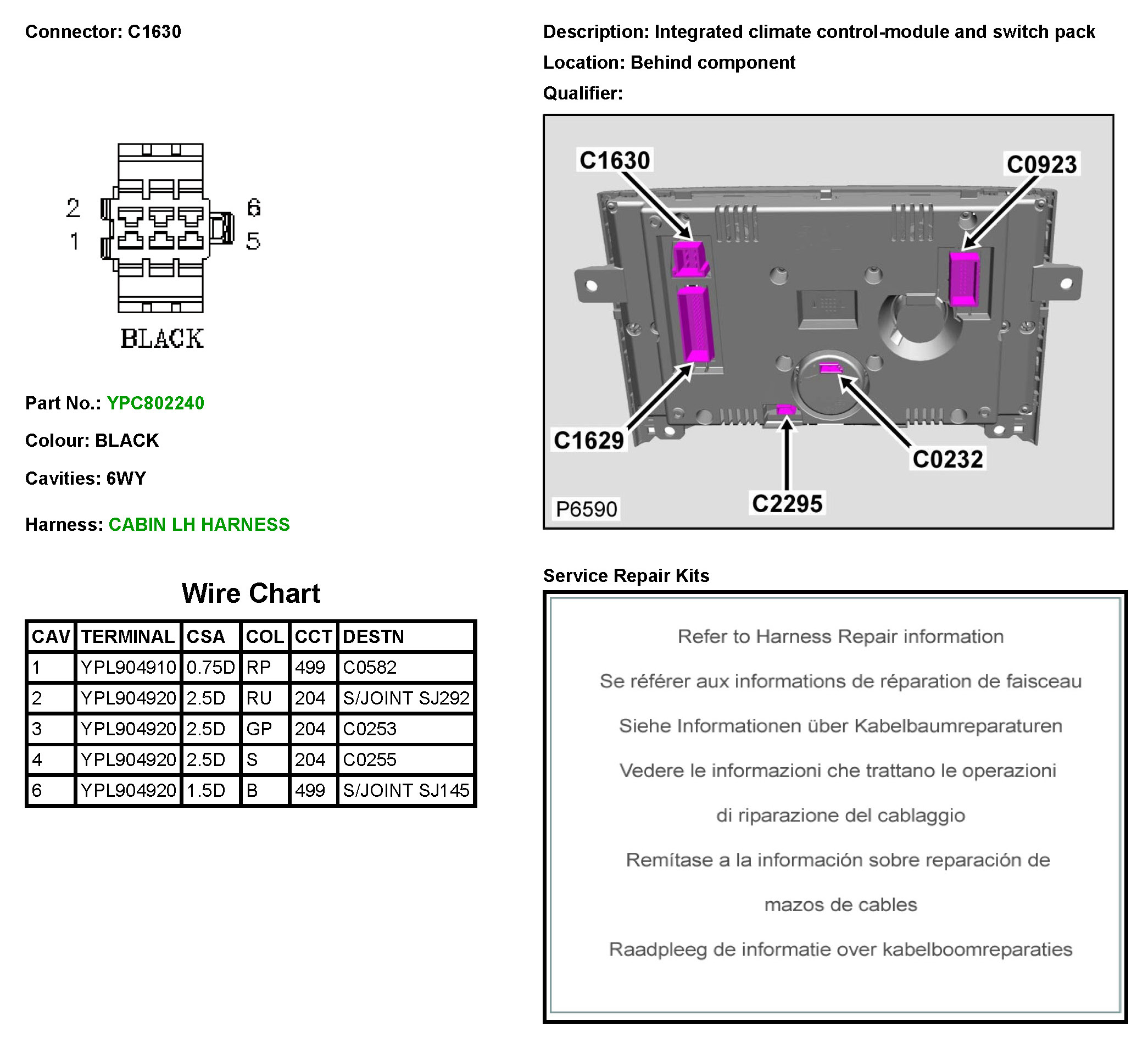

C1630 Integrated Climate Control-Module and Switch Pack
C1630
