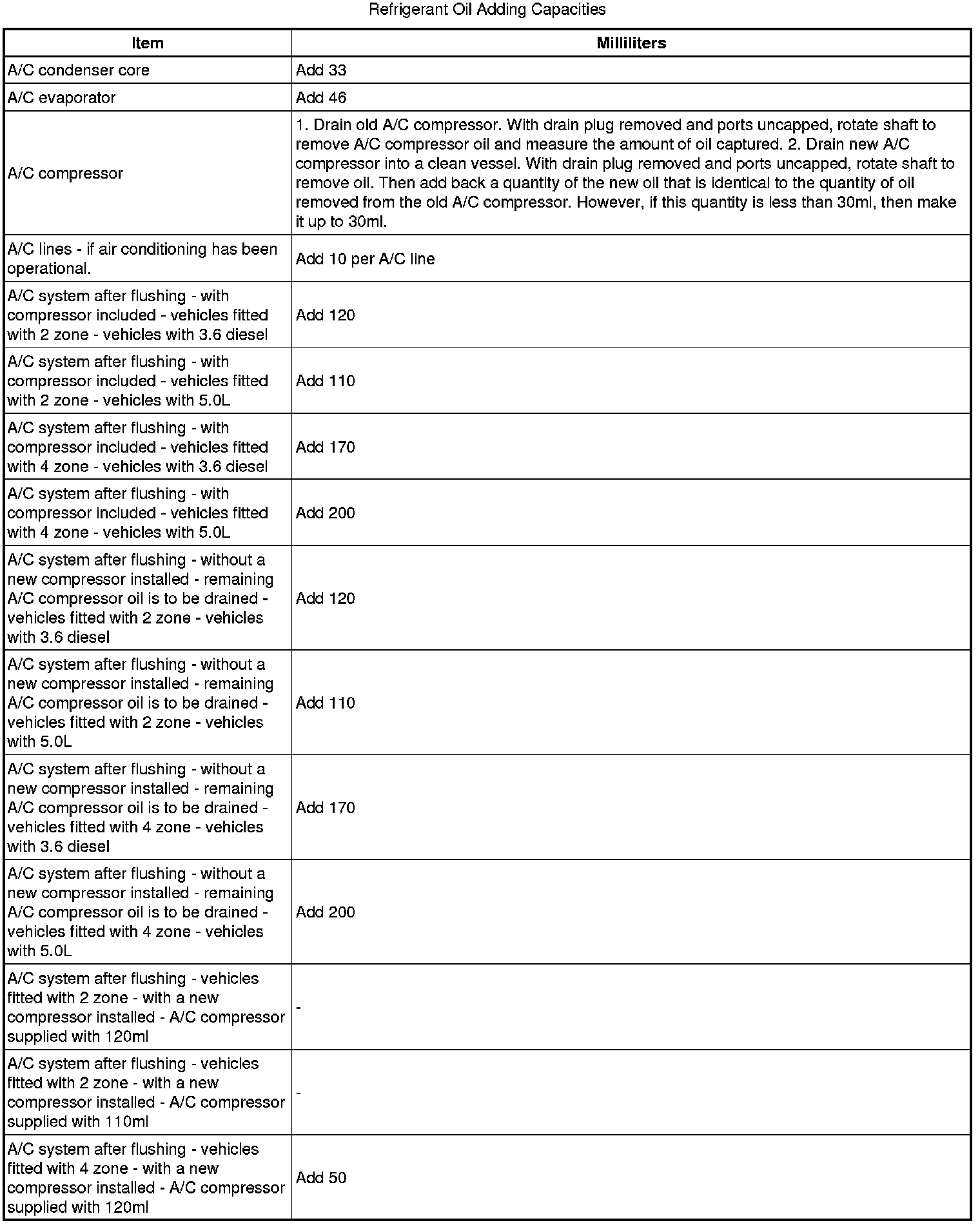

Capacity Specifications





Specifications






NOTE:
Rotate the A/C compressor shaft at least 6 to 8 turns when draining the refrigerant oil.
