Trailer Hitch Control Module: Service and Repair

Towbar - Deployable Towbar Control Module (DTCM)

Removal and Installation

Removal

NOTE:
- Removal steps in this procedure may contain installation details.
- The ignition must be switched off.

2.
3.

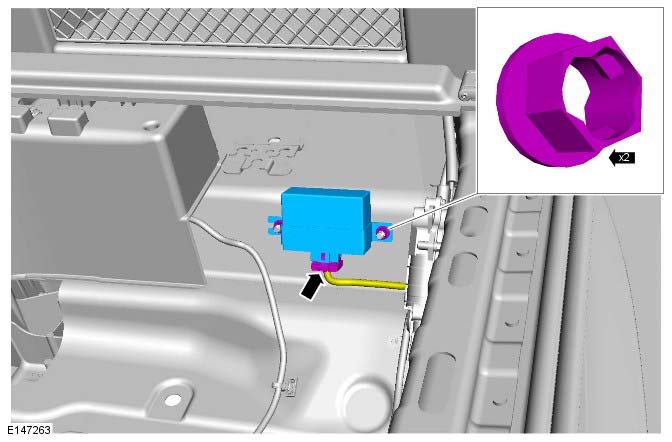

4. Torque: 9 Nm
5.

6. Torque: 2 Nm

Installation

NOTE: Press the brake pedal.

1. To install reverse the removal procedure.
2. Start the engine.
3. Turn off the engine.
4. Turn the ignition on.
5. Turn the ignition off.

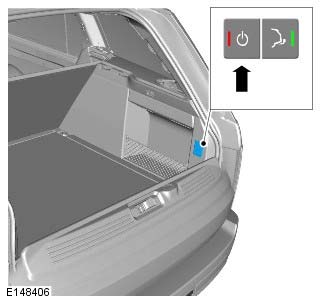

6. Press ON button for 2 seconds until the green led illuminates.

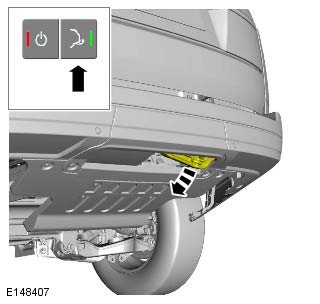

7. Press and hold deploy/stow button until the towbar moves to fully deployed position. Listen for two beeps to confirm system is calibrated.
