Transit Mode/Emergency Recovery Help Guide (LTB00505NAS1)

Publication date: 2013-05-31
Reference number: LTB00505NAS1

TRANSIT MODE/EMERGENCY RECOVERY HELP GUIDE

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB00505NAS1, Date of Issue: May 31, 2013

LAND ROVER:	2013 Range Rover (LG)
SECTION:	100-00
AFFECTED VEHICLES:	Range Rover (LG) Model Year: 2013 VIN: 100000 Onwards

NAS

Situation: This Bulletin is to provide useful information on starting and vehicle operation when in Transit mode and emergency recovery procedures.

No Parts Required

IDS with latest IDS-DVD and Calibration File

Jaguar Land Rover-approved Midtronics Vehicle Power Supply

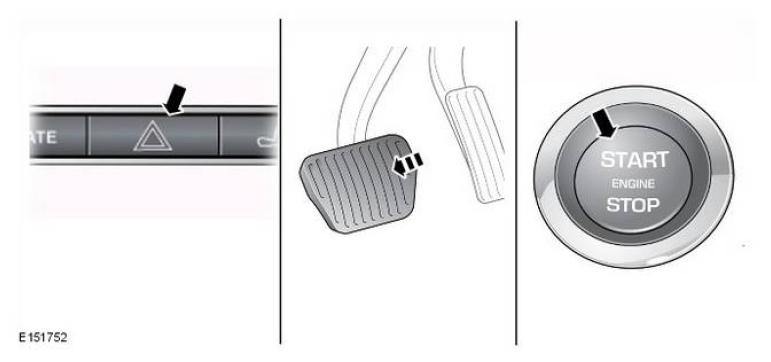

Starting in Transit mode
- Press the Hazard lamp switch.
- Firmly depress the brake pedal.
- Press the engine START/STOP button.
CAUTION: It is possible to lock the keys inside the vehicle when in Transit mode. The Keyless Vehicle Module (KVM) will not detect that the keys are inside the vehicle.

When in Transit Mode, the BCM affects the following:
- central locking - disabled
- tailgate release - disabled
- glove box release - disabled
- double-locking - disabled
- security alarm - remains in unset state
- all handle lock switch/paddle/lever lock/unlock requests - disabled (mechanical locking from lock/unlock switch of local door only)
- remote keyless entry/passive locking requests - disabled
Door Soft Close operation
- When exiting the vehicle while in Transit mode, if a door is closed at the exact time that the Transit Relay powers down (~17 seconds), the cinch motor may lock the driver's door in the first closure state and will not allow the door to unlock manually via the emergency key or electronically. If the vehicle is locked in this state, the Hazard lamp switch must be pressed to enable the Transit Relay
Removing the vehicle from Transit mode
1. Refer to the Pre-Delivery Inspection (PDI) manual on TOPIx for full details on how to remove the vehicle from Transit mode.

NOTE: To be used in the event the vehicle has no battery power.

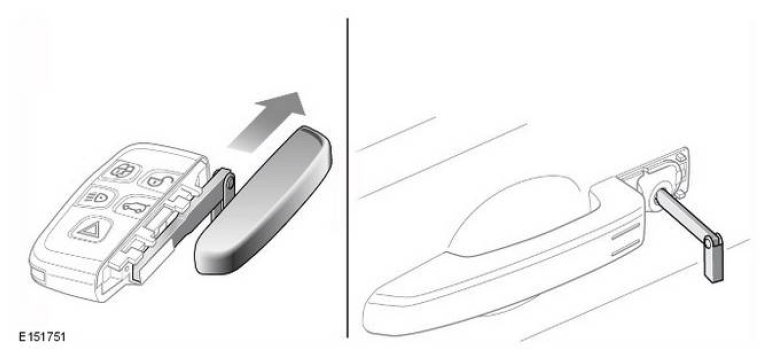

Emergency Key access/use

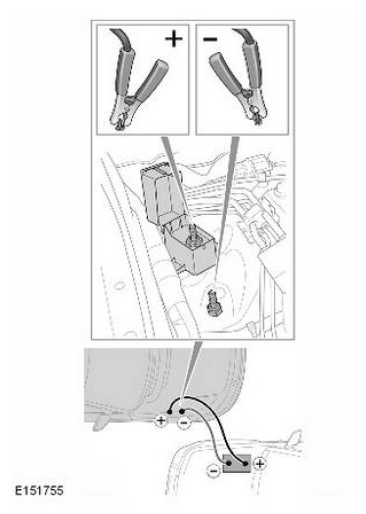

Vehicle battery jump start/charge points
- Positive (+) charge point.
- Negative (-) charge point.

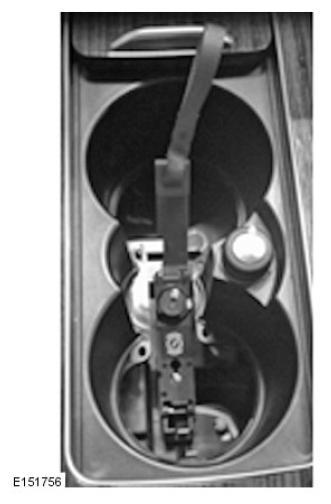

Emergency transmission park release

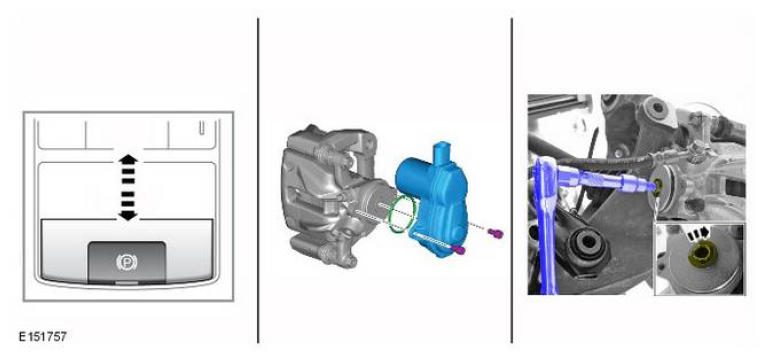

Electronic Park Brake release
1. Remove the EPB motor.
2. Manually release the park brake actuator from brake caliper.
3. Repeat steps 4.1 - 4.2 to the other park brake actuator.
