Symptom Driven Diagnostics (SDD) Tactical Project Update (SSM62497)

Publication date: 2013-01-24
Reference number: SSM62497

SYMPTOM DRIVEN DIAGNOSTICS (SDD) TACTICAL PROJECT UPDATE

SYMPTOM DRIVEN DIAGNOSTICS (SDD) TACTICAL PROJECT UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM62497, Date of Issue:  January 24, 2013
LAND ROVER: LR4/L319; LR2/L359; LR3/L319; Defender/L316; Range Rover/L322; Range Rover (All New)/L405; Range Rover Evoque/L538; Range Rover Sport/L320
CATEGORY: Diagnostic Software Hardware

SERVICE INFORMATION

(Symptom 000102 WDS Patch/Update)

Content:

Improvements have been made to DVD 133 that includes updates to:

This provides significant speed and usability improvements to SDD

Please see attached document for full details of the improvements.

SDD TACTICAL PROJECTS

-

DVD 133 NEW FEATURES

THE JLR SDD TACTICAL PROJECTS

  • In early 2012 JLR embarked upon a dealer visit and feedback program to understand how the current SDD tool could be improved for the technicians
  • The results of this feedback process allowed for the set up of the current JLR SDD tactical projects, which are aimed at improving existing features, and adding new features to further enhance the ability of SDD to assist the technicians in a diagnostic capacity.
  • This guide has been created to introduce the new features being released with DVD 133.

NEW FEATURES ADDED - DVD 133

  • Time Improvement
    • Auto VIN Read & Vehicle ID
    • Improved Access to Short Cuts
    • Quicker Access to Session Entry Screen
    • Direct Access to New Module Programming
    • Background DTC Data Collect
  • Symptom Selection
    • Improved UI & Touch Screen
    • Text Search
  • Network View/VSOH
    • Dynamic Population of ECU Data Read
    • New Optional Module Identification
    • Re-Run Data Collect for Non-Comms Modules
    • Jump to ECU DTC's in the Event Viewer
  • DTC Event Viewer
    • Single View for Related and Un-Related DTC's
    • Event Bar Select and Zoom Feature
    • Sort by Column

NEW FEATURES - AUTO VIN READ

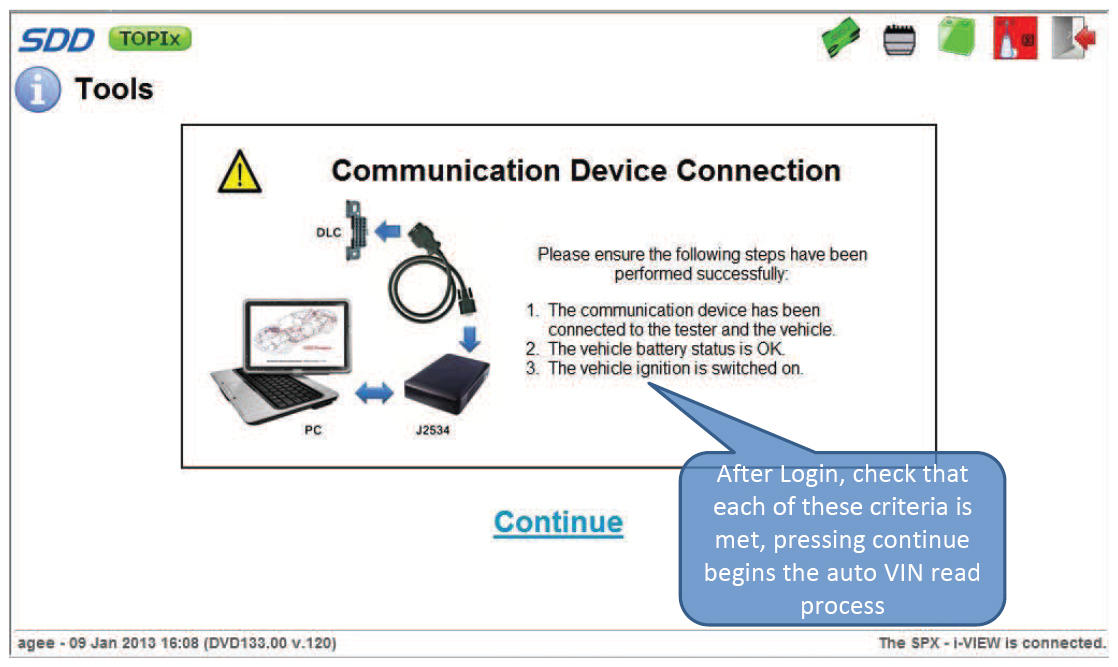

G08631854

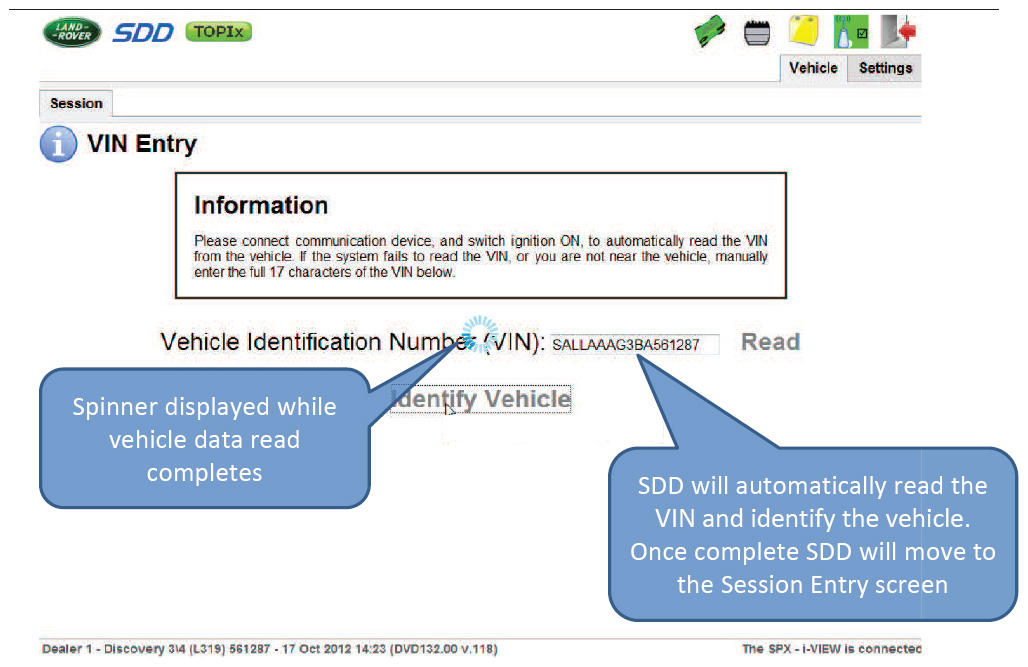

G08631855

NEW FEATURES - SESSION ENTRY SCREEN

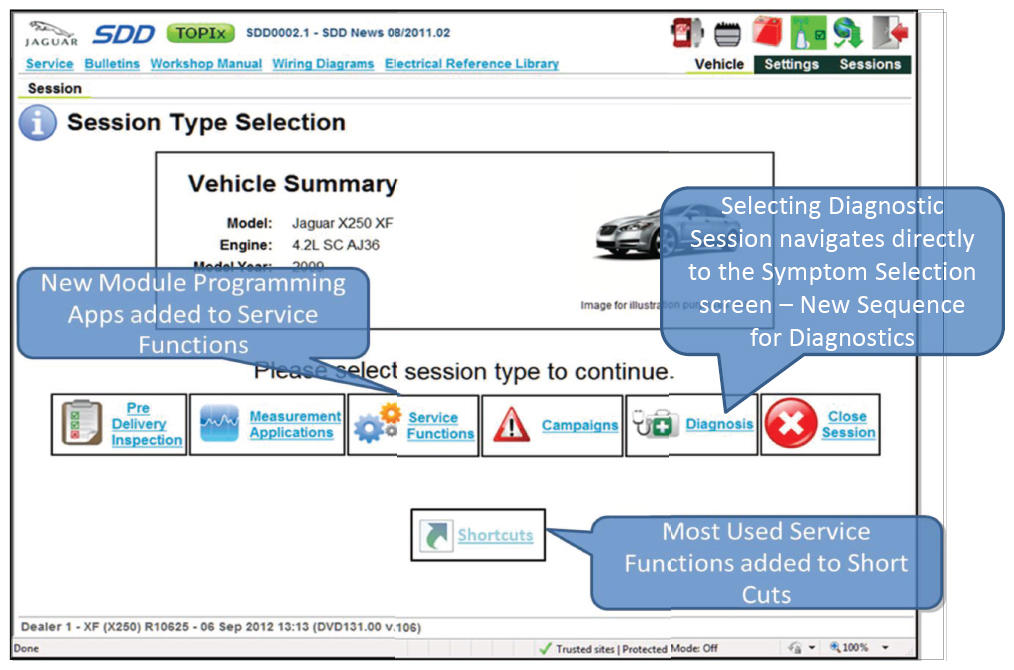

G08631856

NEW FEATURES - SYMPTOM SELECTION

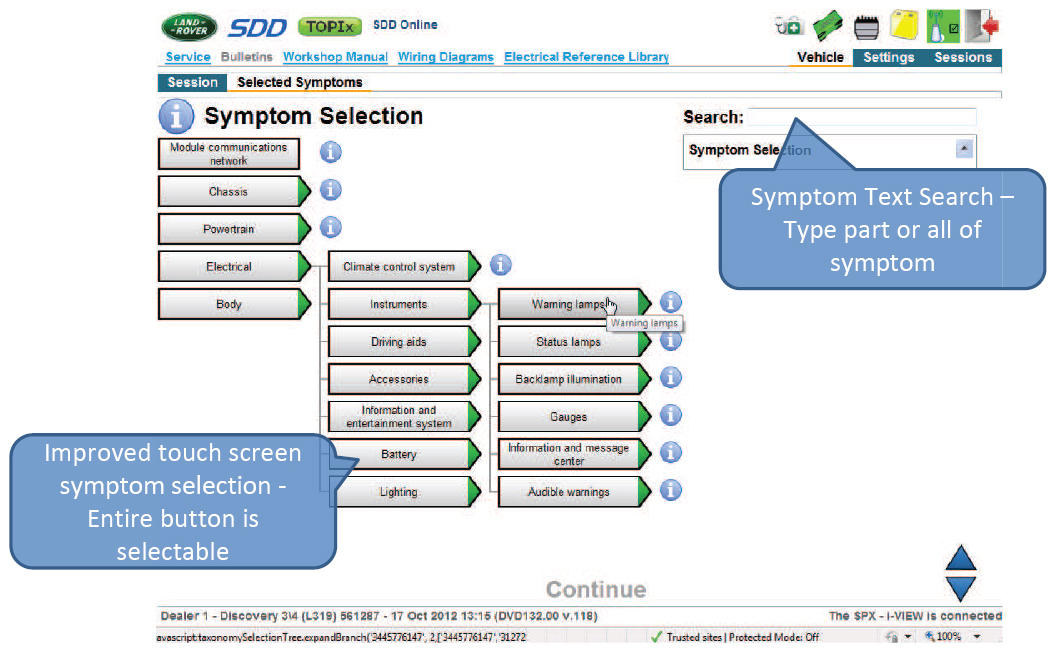

G08631857

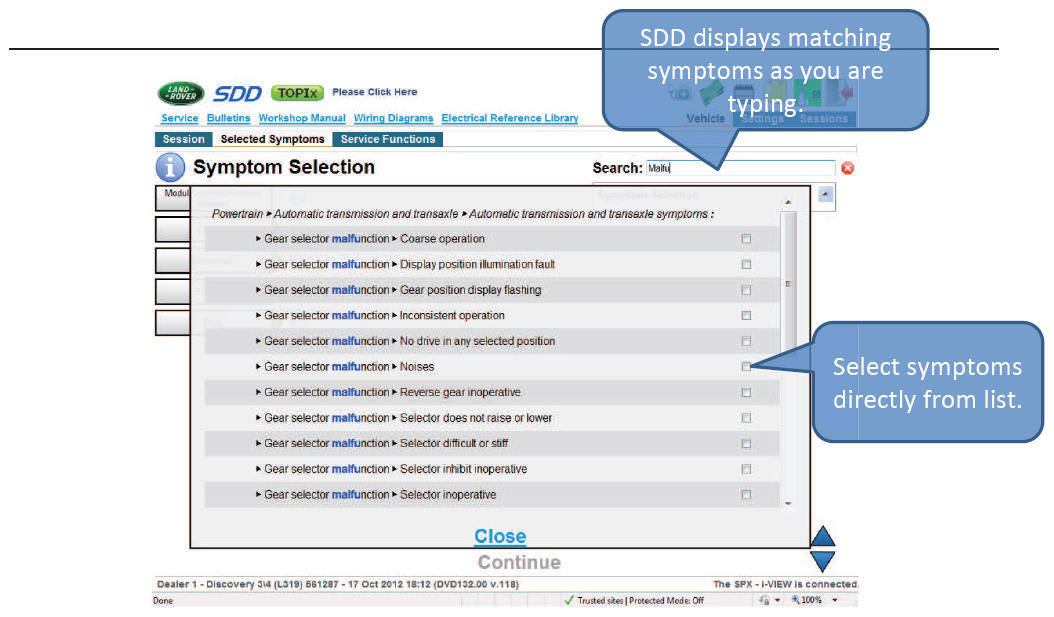

G08631858

NEW FEATURES - VEHICLE STATEMENT OF HEALTH (VSOH)

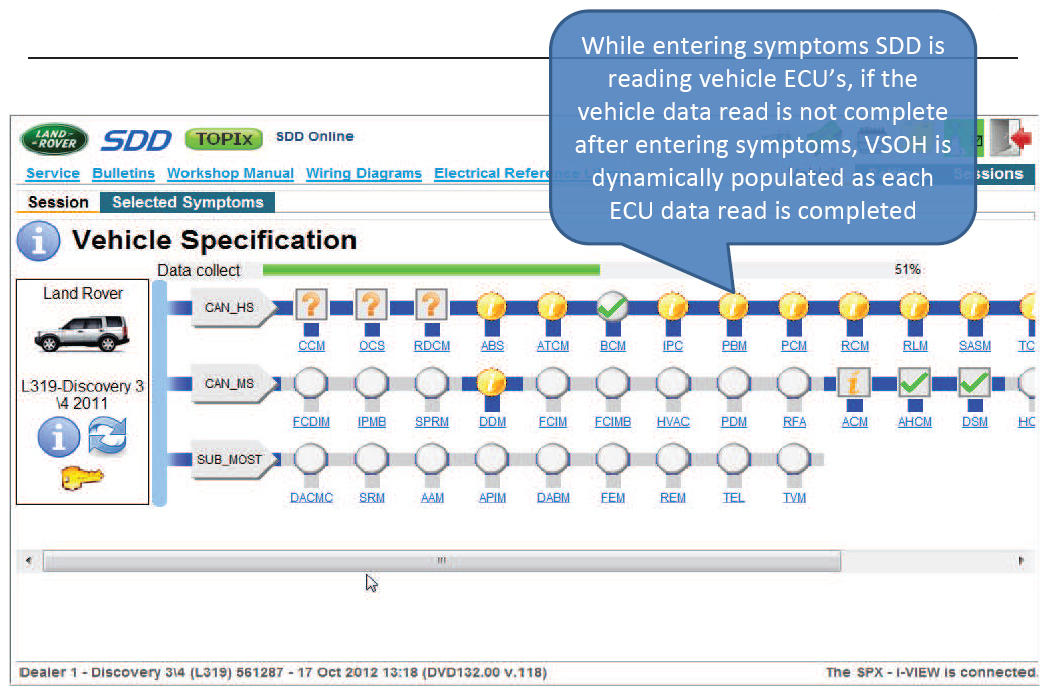

G08631859

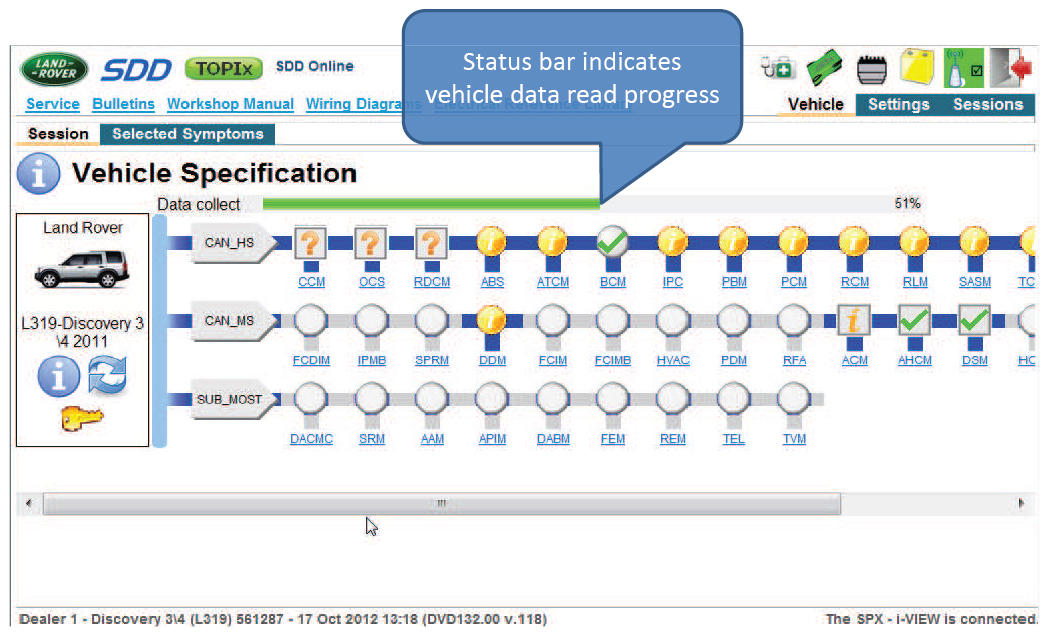

G08631860

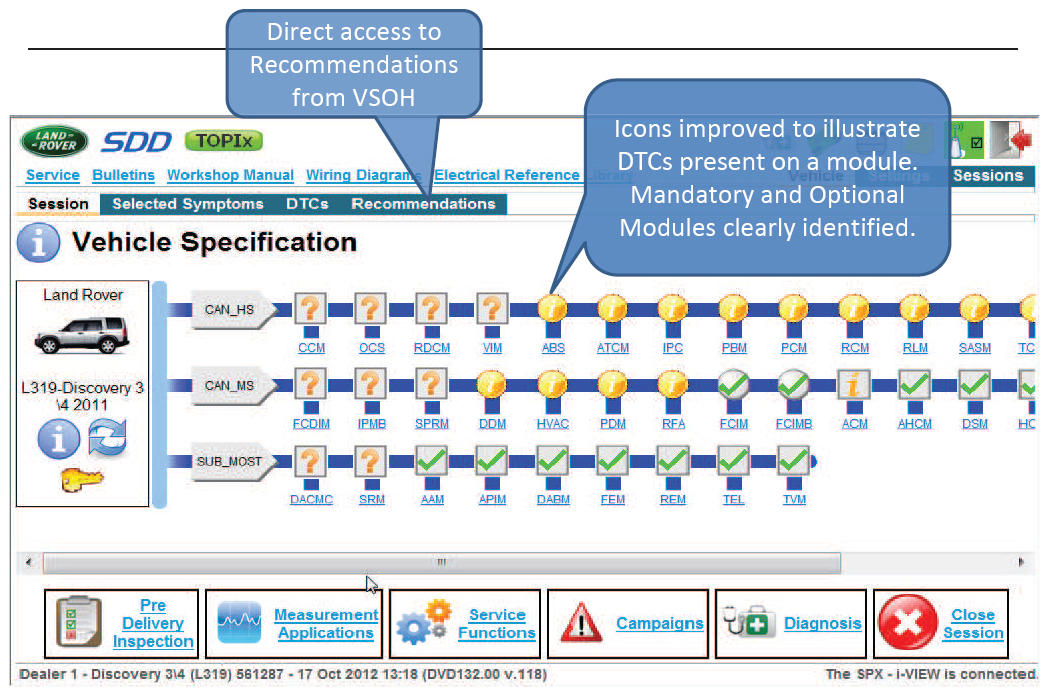

G08631861

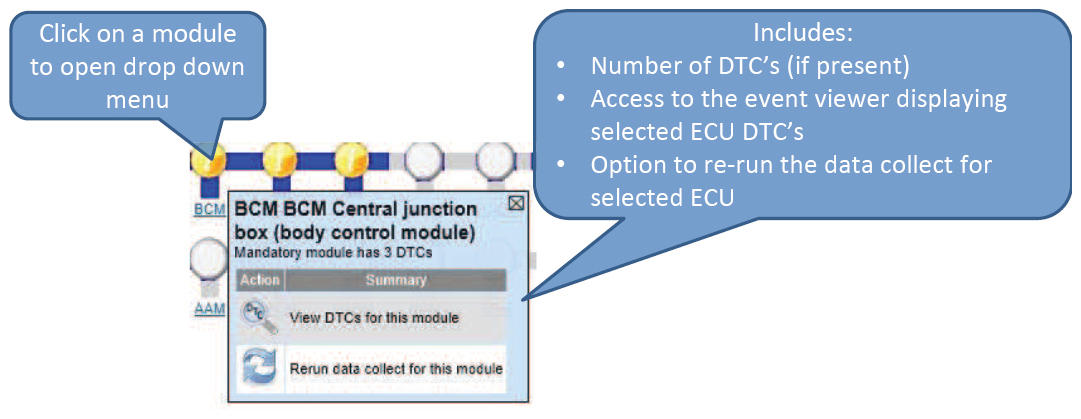

G08631862

NEW FEATURES - DTC EVENT VIEWER

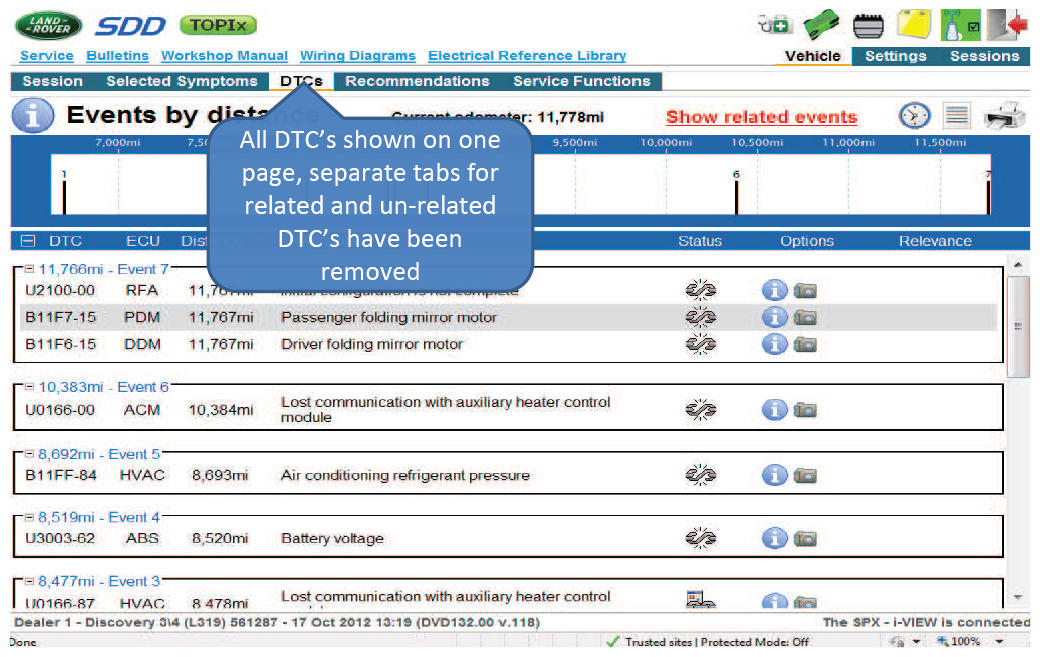

G08631863

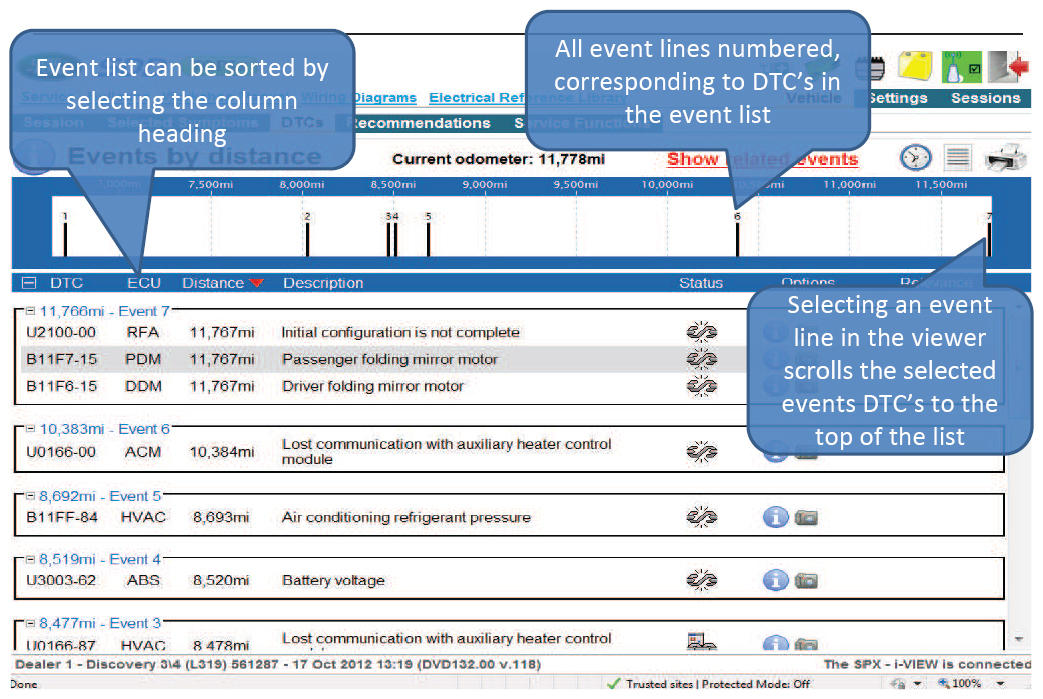

G08631864

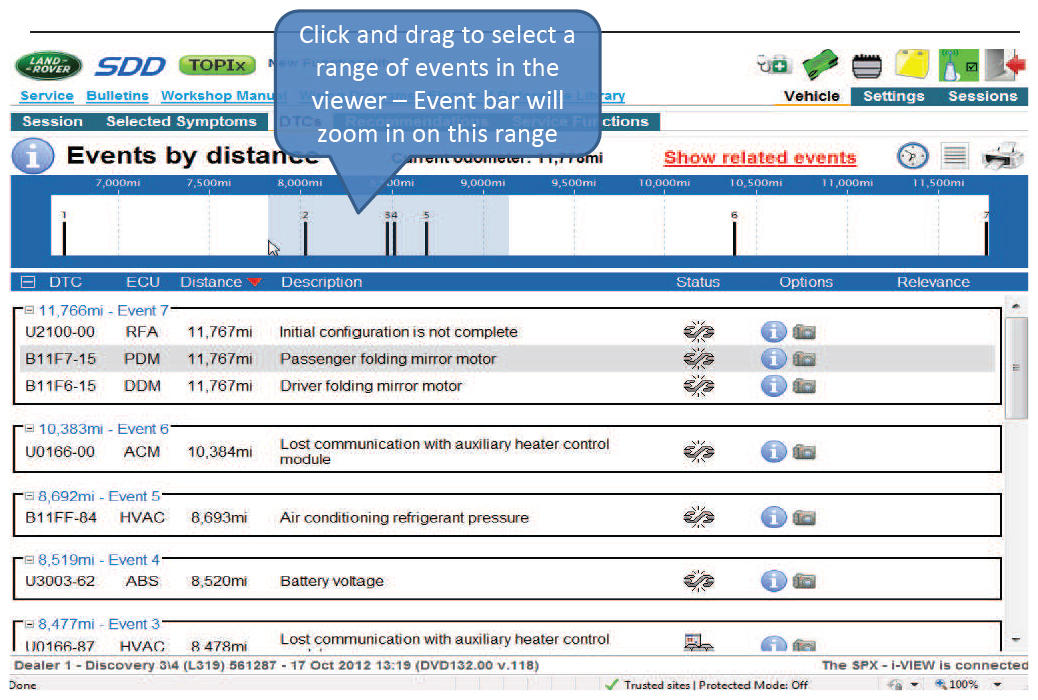

G08631865

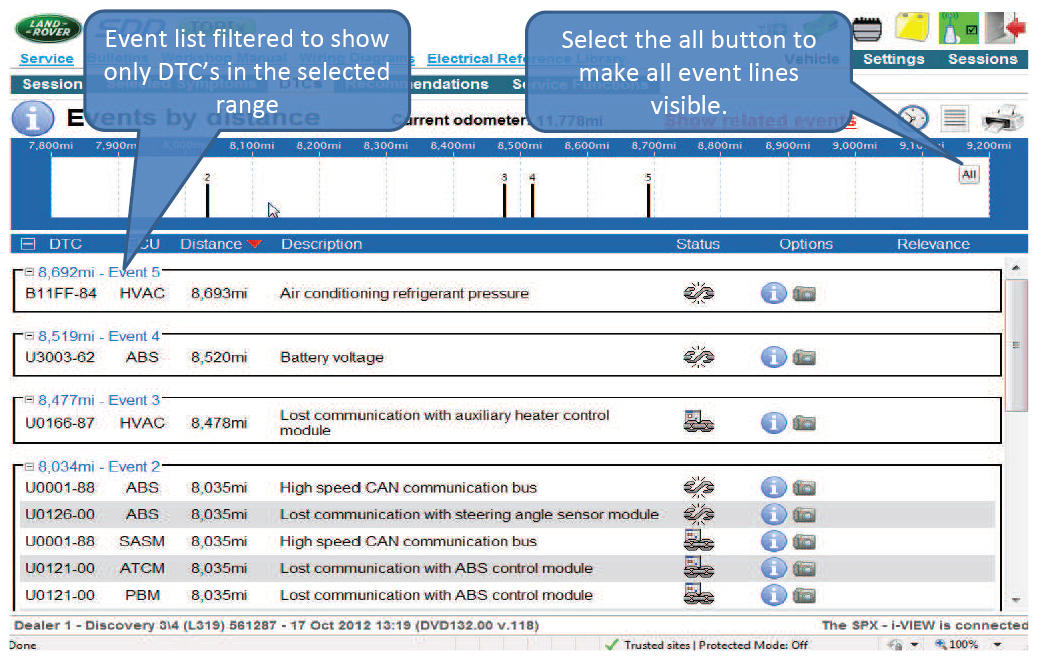

G08631866

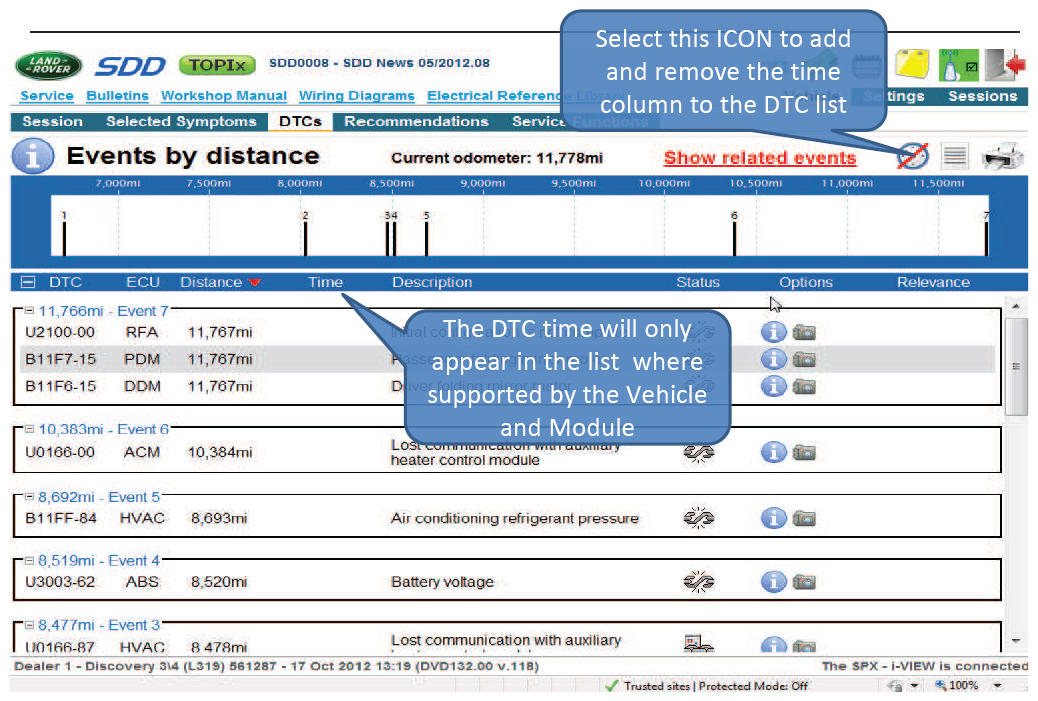

G08631867

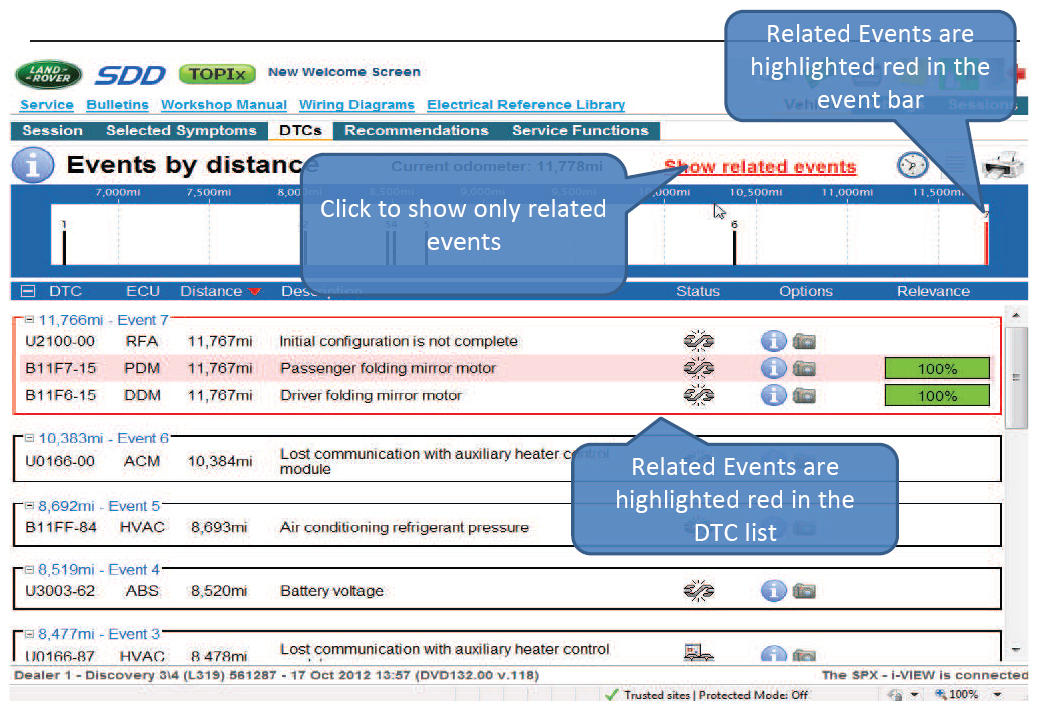

G08631868

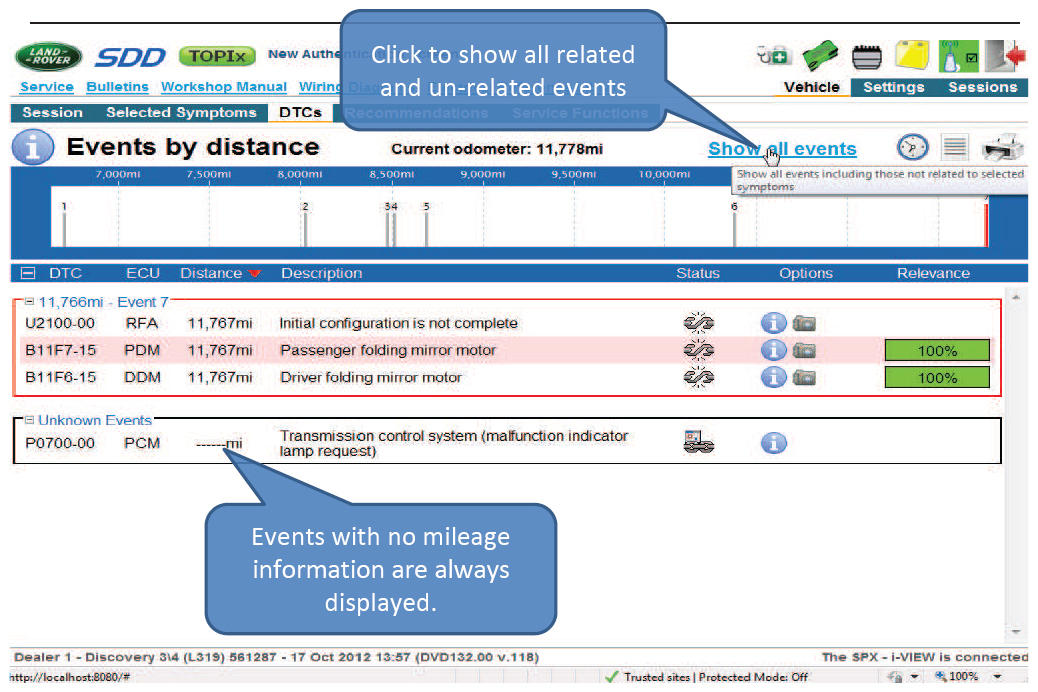

G08631869
