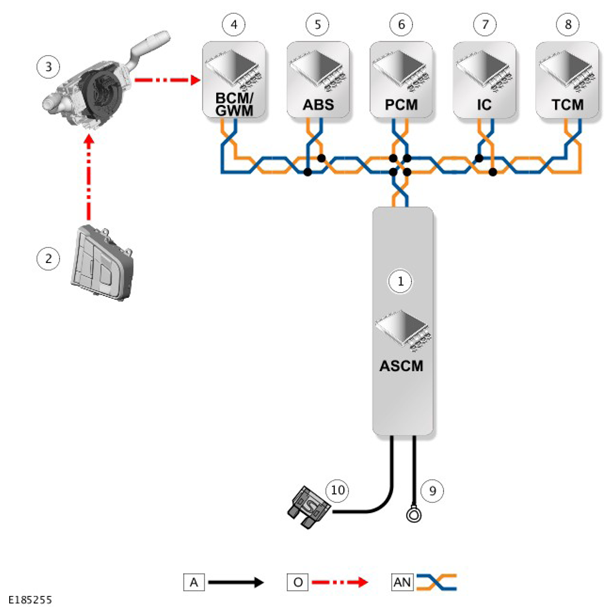

Control Diagram - Adaptive Speed Control
WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; O = LOCAL INTERCONNECT NETWORK (LIN) BUS; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Adaptive Speed Control Module (ASCM) |
| 2 | Steering wheel switchpack - right |
| 3 | Clockspring (CLKSPG) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Powertrain Control Module (PCM) |
| 7 | Instrument Cluster (IC) |
| 8 | Transmission Control Module (TCM) - on vehicles with automatic transmission only |
| 9 | Ground |
| 10 | Power supply |
