Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Make the SRS system safe.

    Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions

  2. Refer to: Battery Disconnect and Connect
  3. Refer to: Driver Airbag Module
  4. NOTE: Repeat the step for the other side.

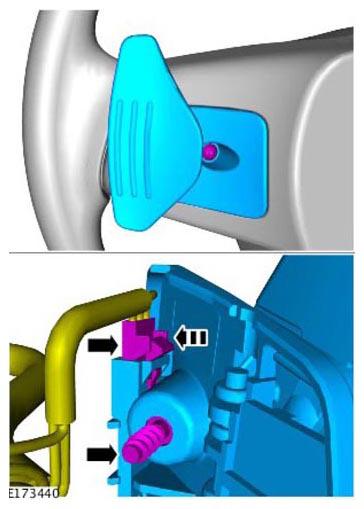

    G11314879

    Torque Specification  : 3 Nm

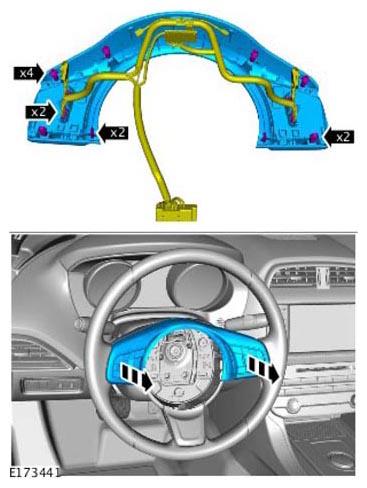

  5. G11314880

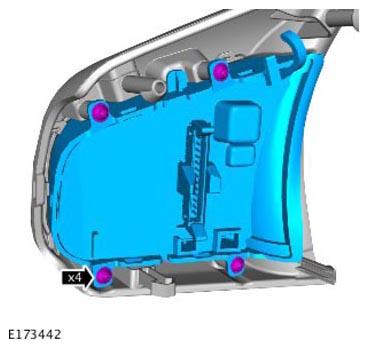

  6. G11314881

    Torque Specification  : 2 Nm
