Anti-Lock Control - Traction Control: Notes
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

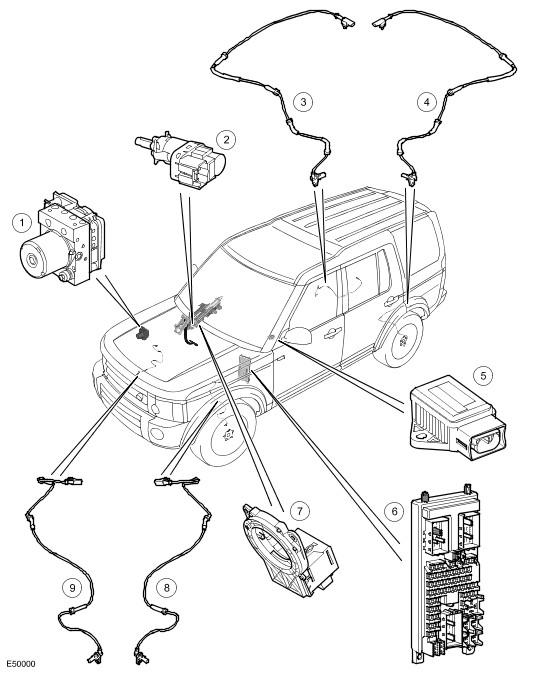

COMPONENT LOCATIONS - 1 OF 2
| Item Number | Description |
|---|---|
| 1 | Hydraulic control unit with attached module |
| 2 | Stoplamp switch |
| 3 | Right rear wheel speed sensor |
| 4 | Left rear wheel speed sensor |
| 5 | Yaw rate and lateral acceleration sensor |
| 6 | HDC (hill descent control) relay (non-serviceable, integrated into) |
| 7 | Steering angle sensor |
| 8 | Left front wheel speed sensor |
| 9 | Right front wheel speed sensor |

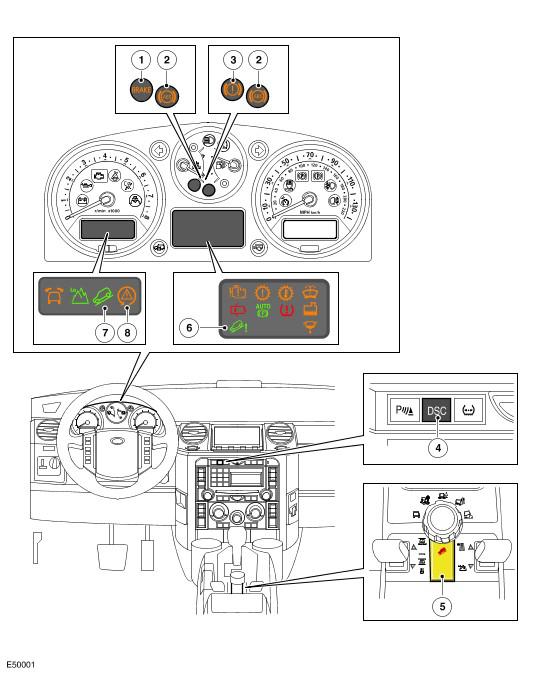

COMPONENT LOCATIONS - 2 OF 2
| Item Number | Description |
|---|---|
| 1 | Brake warning indicator (NAS (north American specification) only) |
| 2 | ABS warning indicator |
| 3 | Brake warning indicator (all except NAS) |
| 4 | DSC (dynamic stability control) switch |
| 5 | HDC (hill descent control) switch |
| 6 | HDC warning indicator (low line instrument cluster only) |
| 7 | HDC information indicator |
| 8 | DSC warning indicator |
