Removal And Installation: Removal

  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Remove the fender splash shield.

    For additional information, refer to: Fender Splash Shield .

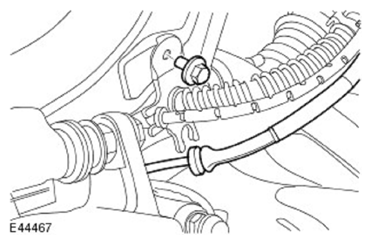

  3. G11592464

    Release the brake hose bracket from the wheel knuckle.

    • Remove the retaining bolt.
  4. CAUTION: Do not allow the brake caliper to hang on the brake hose.

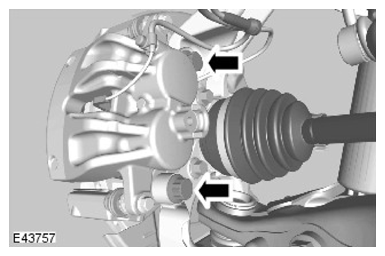

    G11597367

    Release the brake caliper anchor plate from the wheel knuckle and tie the caliper aside.

    • Remove the two retaining bolts.

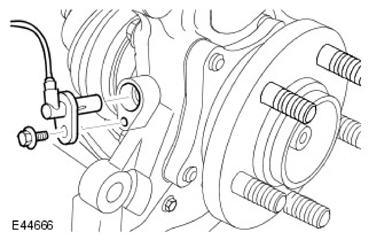

  5. G11592465

    Release the wheel speed sensor from the wheel knuckle.

    • Remove the bolt.

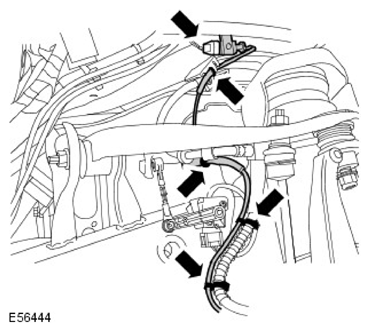

  6. G11597369

    Remove the wheel speed sensor.

    • Disconnect the electrical connector.
    • Release the wiring harness from the 5 clips.
