Fire Suppressant Control Panel

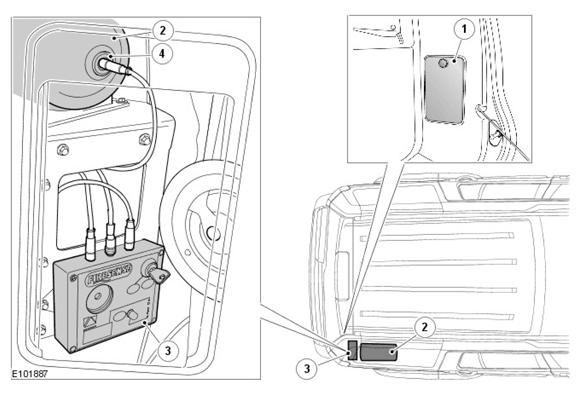

G11600934
ITEM DESCRIPTION
1 Access panel to control panel
2 Cylinder
3 Control panel, module and battery
4 Gas generator cartridge
WARNING:
  • The fire suppression system will only operate if the key located in the control panel is turned to the 'System Armed' position.
  • The key in the control panel must be turned to the 'Off/Check' position prior to any maintenance or repair procedures being performed on the fire suppression system. Failure to do this could cause the system to activate.
