Front Wheel Speed Sensor: Installation
-
CAUTION:
- Make sure that the component is clean, free of foreign material and lubricant.
- Make sure that the sensor tip is clean and free of foreign material.

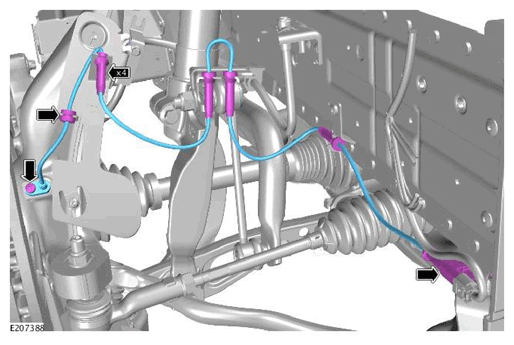

- Install the wheel speed sensor.
Torque: 10 Nm
- Install the wheel arch liner.
Refer to: FENDER SPLASH SHIELD .
