Torque Specifications

COMPONENT TORQUE LOCATION

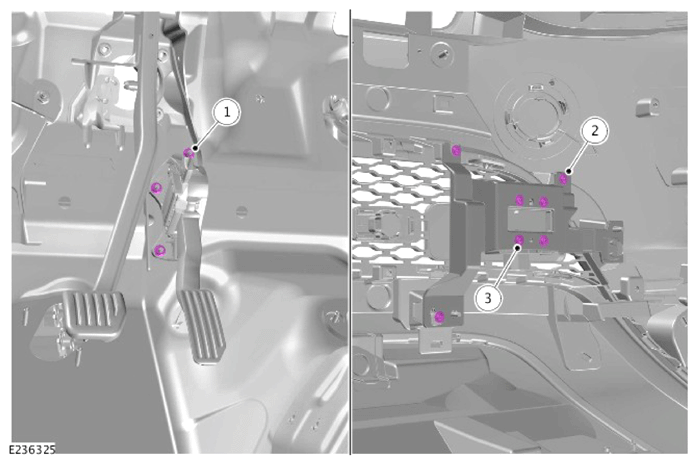

G14453026Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

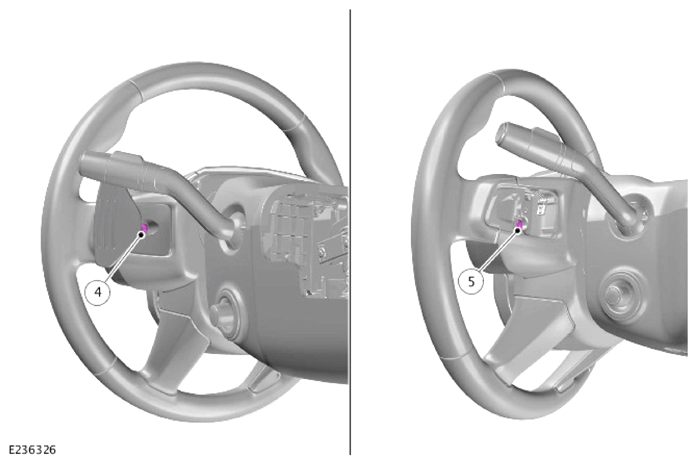

G14453027Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

DESCRIPTION NM LB-FT LB-IN
Accelerator pedal assembly and speed control actuator retaining nuts 10 7 88
Adaptive Speed Control Module (ASCM) bracket retaining screws 2 - 18
ASCM retaining screws 2 - 18
Paddle switch retaining screw 2 - 18
Speed control switch retaining screw 2.5 - 22
