Steering Column: Inspection

Inspect upper bracket. Check that the steering lock mechanism operates properly. See Fig 1.
If necessary, replace ignition key cylinder. Place the ignition key at the ACC position. Push down the stop key with a thin rod, and pull out the key cylinder. See Fig 2. Turn the ignition key plate to the ACC position, and install new key cylinder into the upper bracket.

Fig 1: Inspecting Upper Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

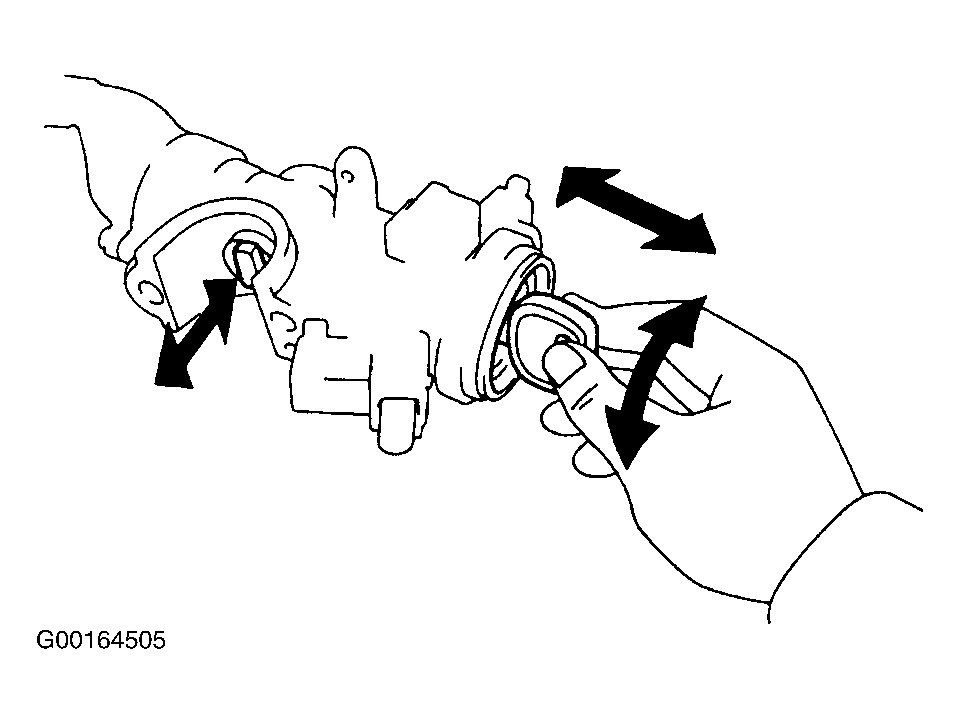

Fig 2: Replacing Ignition Key Cylinder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect upper bearing. Check the upper bearing rotation condition and check for abnormal noise. See Fig 3. If the bearing is worn or damaged, replace the column tube assembly.

Fig 3: Inspecting Upper Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect lower bearing. Check the lower bearing rotation condition and check for abnormal noise. See Fig 4. If bearing is worn or damaged, replace the thrust stopper.

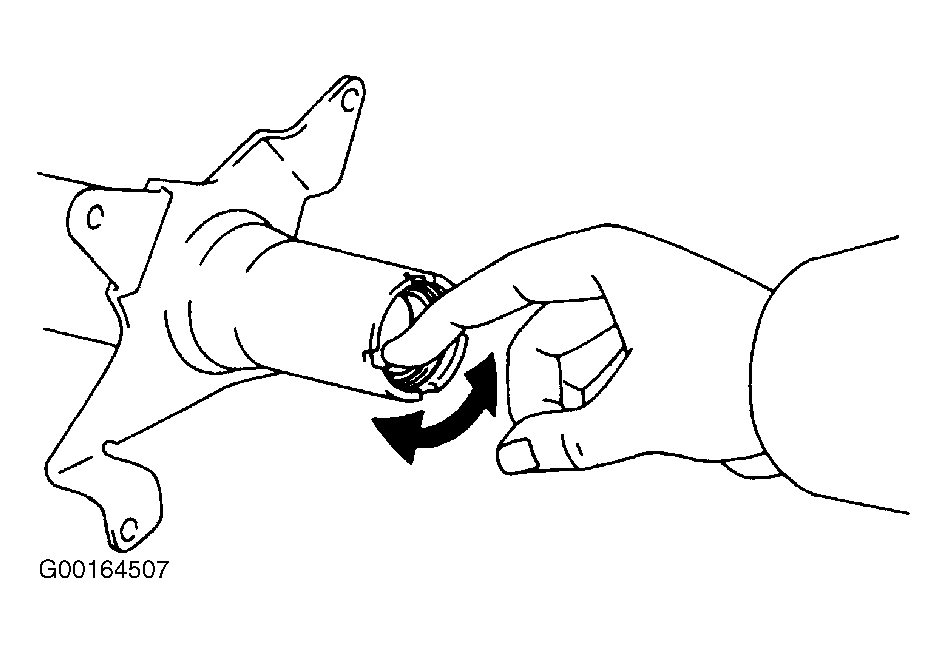

Fig 4: Inspecting Lower Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect key interlock solenoid, if necessary. Solenoid resistance should be 12.5-16.5 ohms.
If necessary, replace key interlock solenoid. Using a screwdriver, remove E-ring and the cover. See Fig 5. Remove two screws and the solenoid. Install the solenoid with two screws. Install the cover and E-ring over the two springs.

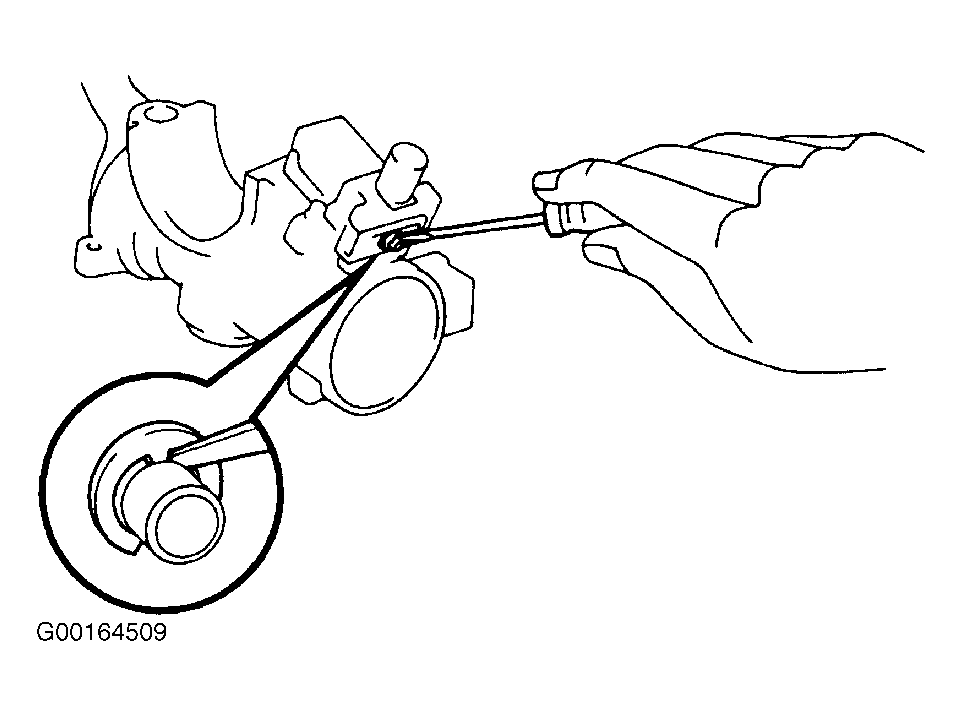

Fig 5: Removing E-Ring & Cover From Solenoid
