Electronic Brake Control Module

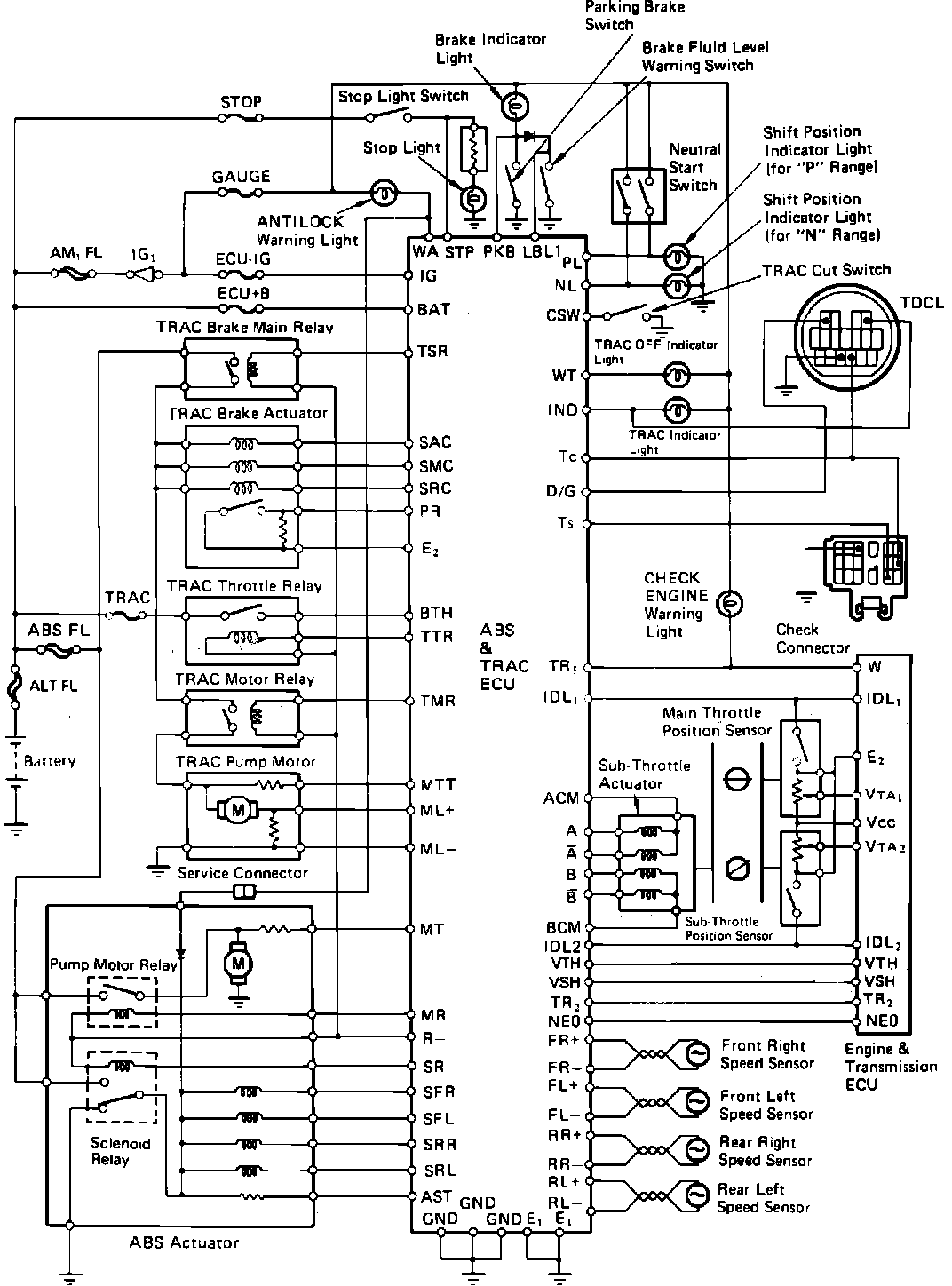

Fig. 11 Wiring Circuit & Pin Identification (Part 1 Of 2). W/TRAC:

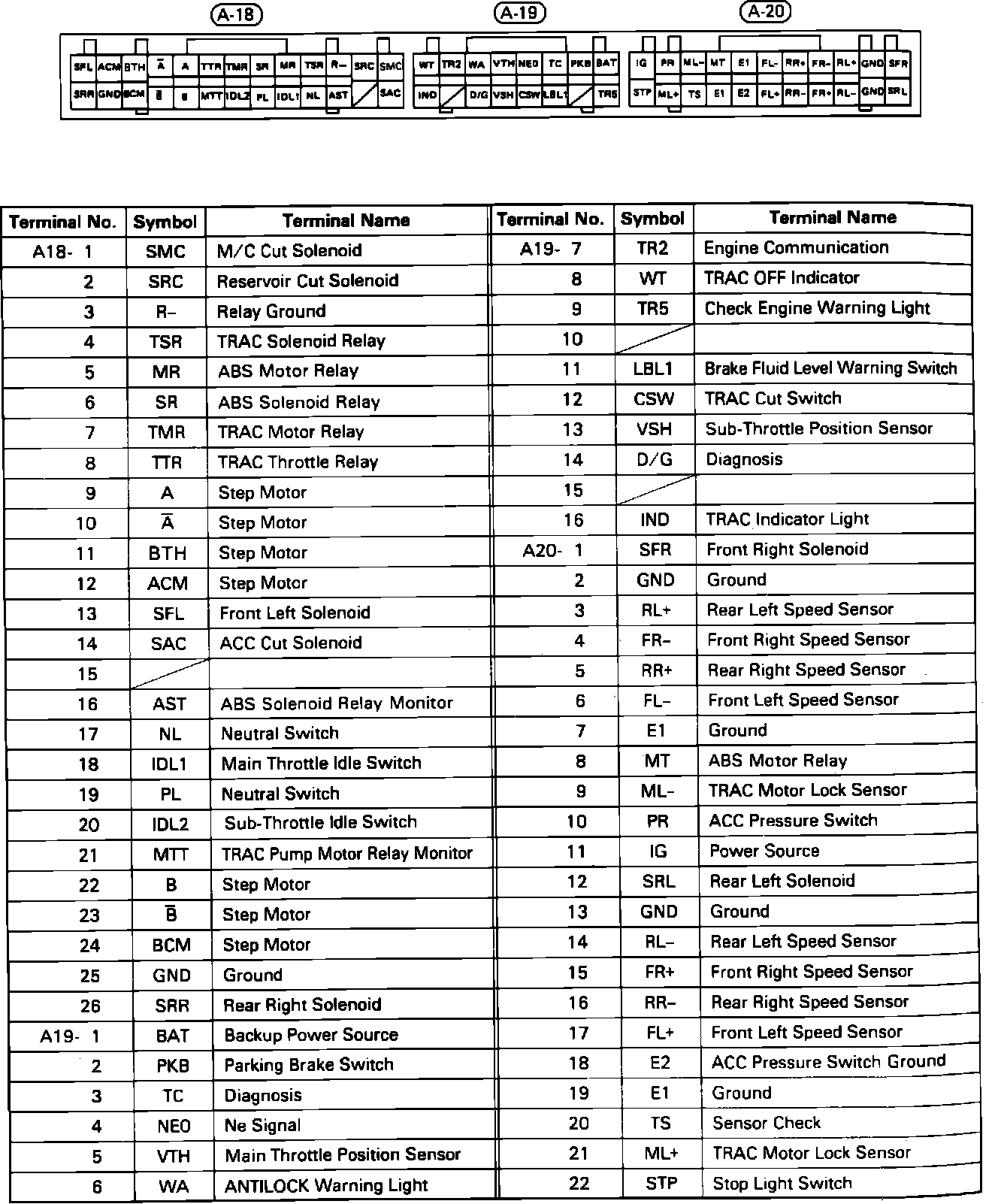

Fig. 11 Wiring Circuit & Pin Identification (Part 2 Of 2). W/TRAC:
