Connector Views

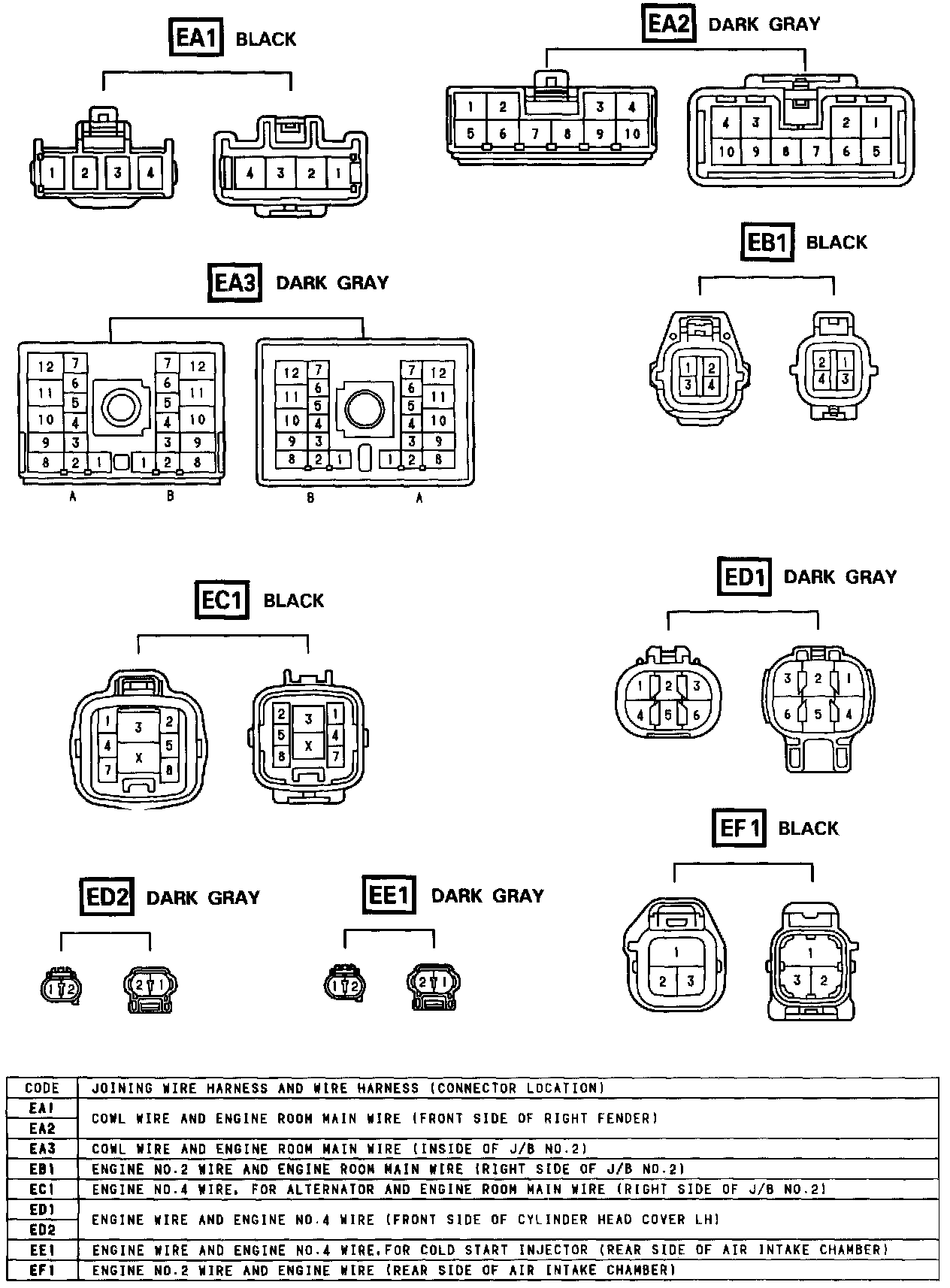

Engine Room Connectors:

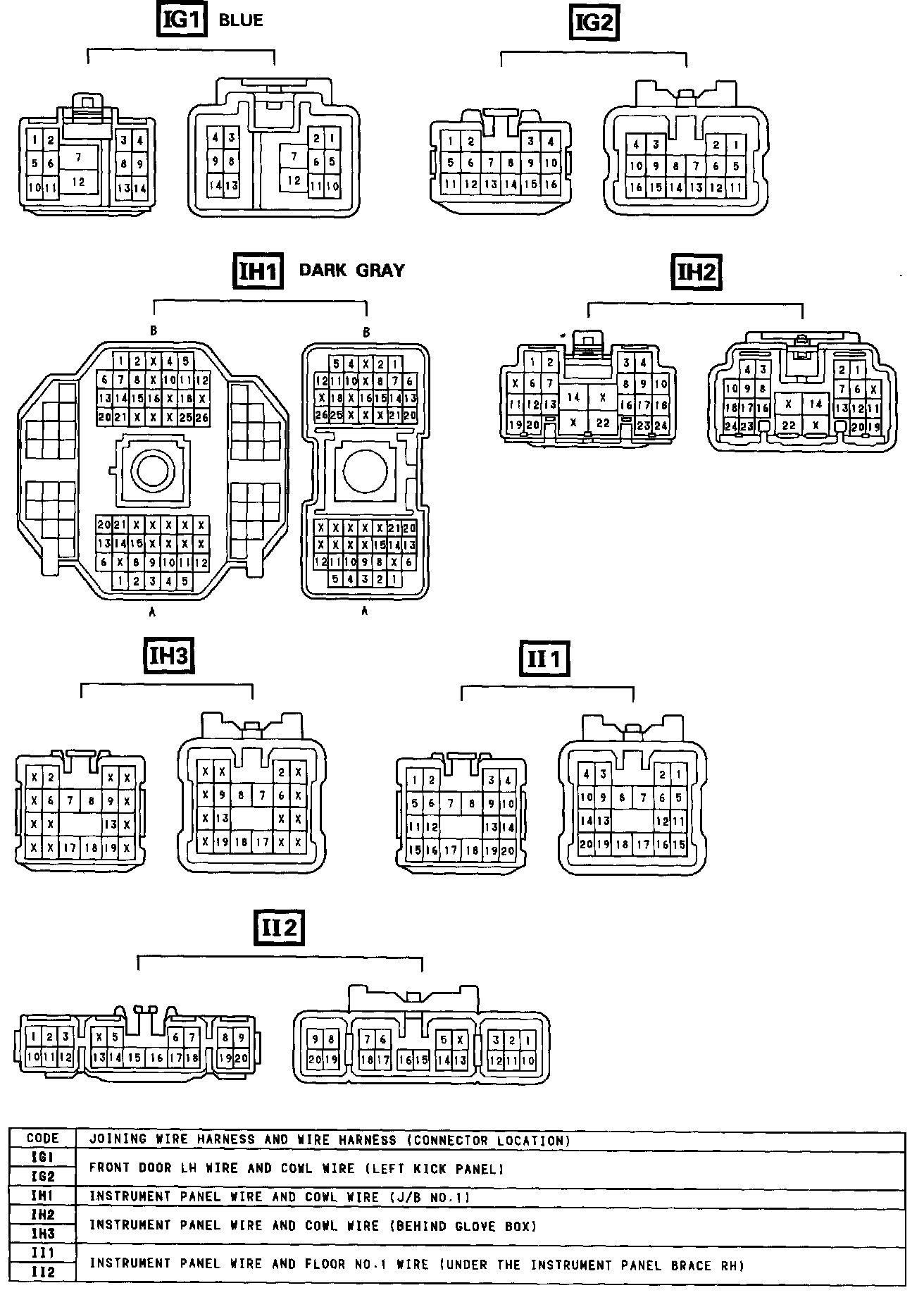

Instrument Panel Connectors 1:

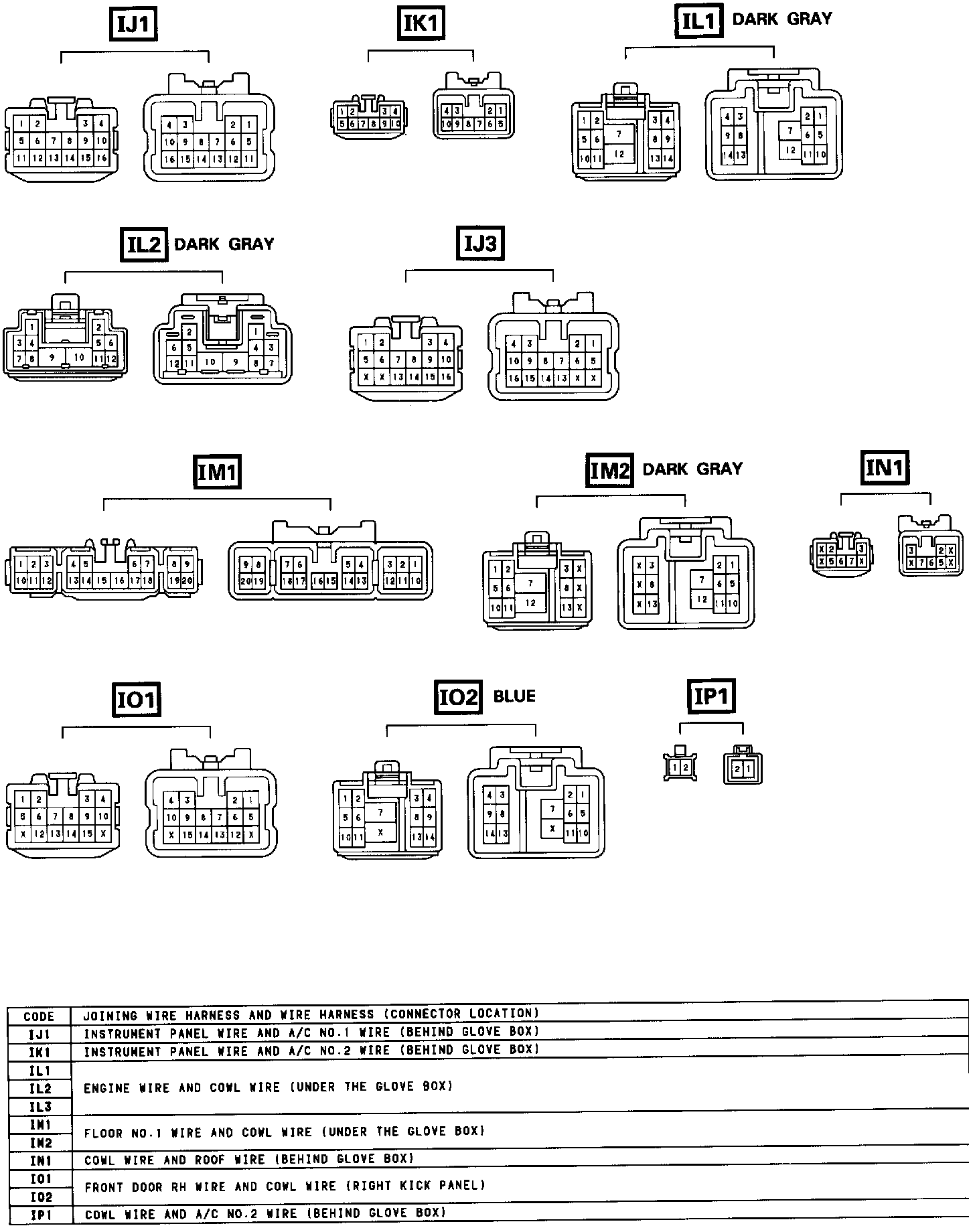

Instrument Panel Connectors 2:
